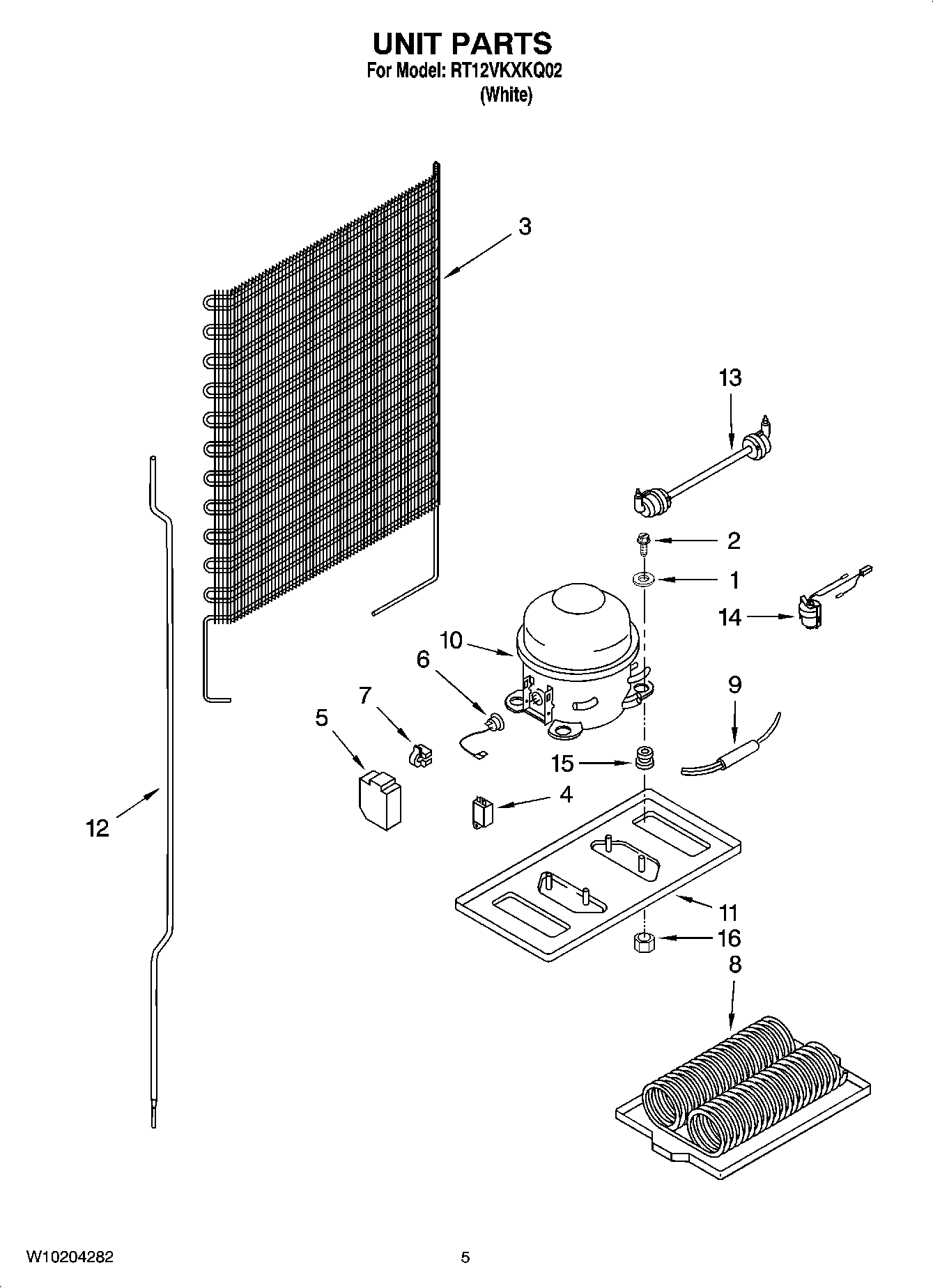

RT12VKXKQ02 03 – UNIT PARTS

Products

PositionProduct
1Washer
2SCREW
3Condenser
4Capacitor
54356777 Whirlpool Term Cover
6WP2214067 Whirlpool Refrigerator Overload Relay
7Relay
8Evaporator
9W10843121 Whirlpool Refrigerator Tube
10W10309989 Whirlpool Refrigerator Compressor
11Unit Mounting Plate
12Exchanger, Heat
13Heater, Defrost
14Bi-Metal, Defrost
15Grommet, Mounting Compressor
16Nut
16REFRIGERANT CHARGE 3.0 oz. (R-134A)
