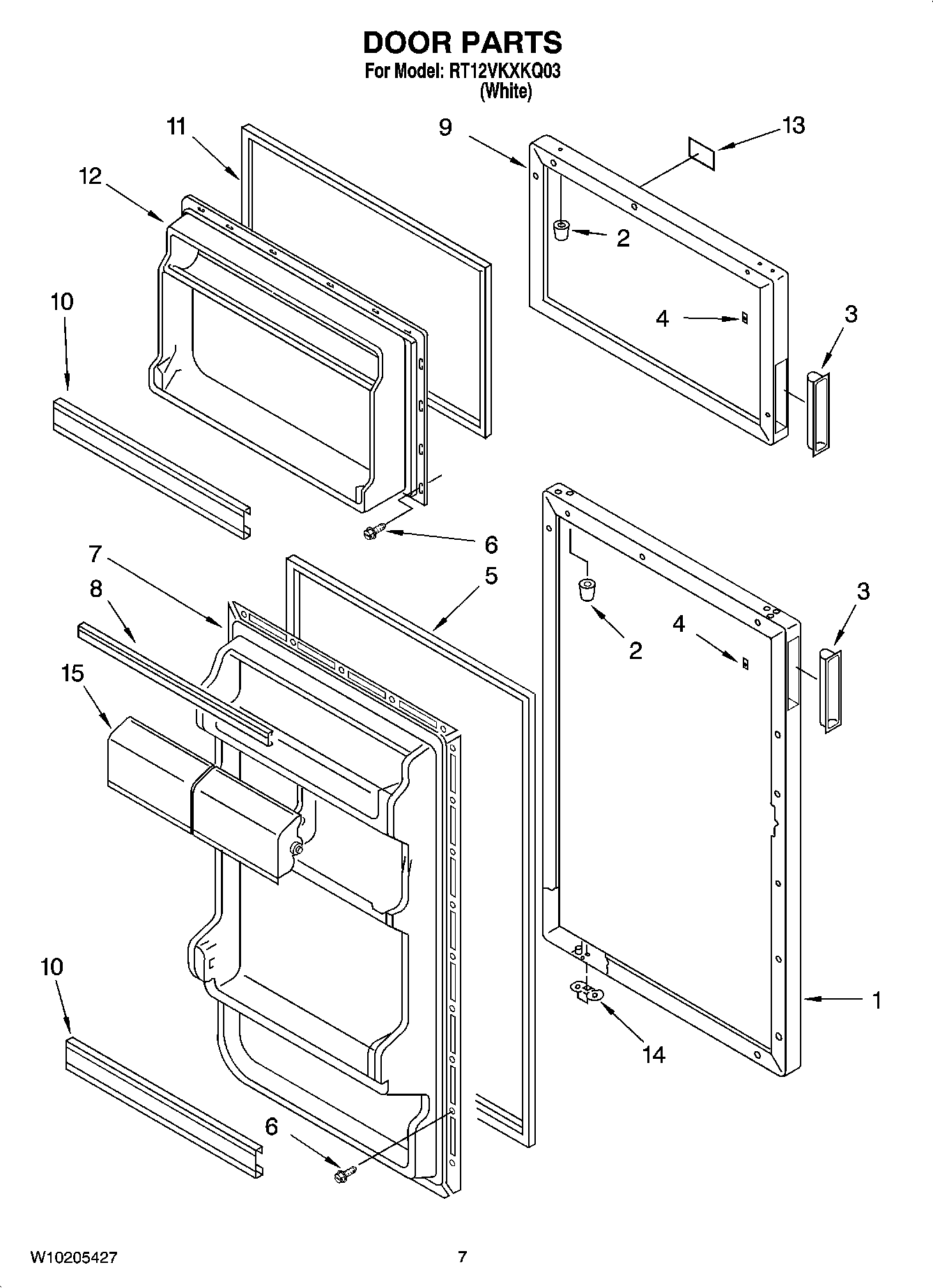

RT12VKXKQ03 04 – DOOR PARTS

RT12VKXKQ03 04 – DOOR PARTS

Written by

in

RT12VKXKQ03 04 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door Panel (White)
24390731 Whirlpool Refrigerator Hinge Bushing
3Handle
43-24059-024 Whirlpool Refrigerator Handle Clip
5Door Gasket, Magnetic (White)
64390598 Whirlpool Refrigerator Screw
7Interior Door Panel (Refrigerator)
8Trim, Door Shelf
9Freezer Door Panel (White)
10Trim, Door Shelf
11Door Gasket, Magnetic (White Model)
12Interior Door Panel (Freezer)
13Nameplate (White)
14Bracket, Door Stop
15Compartment Door
