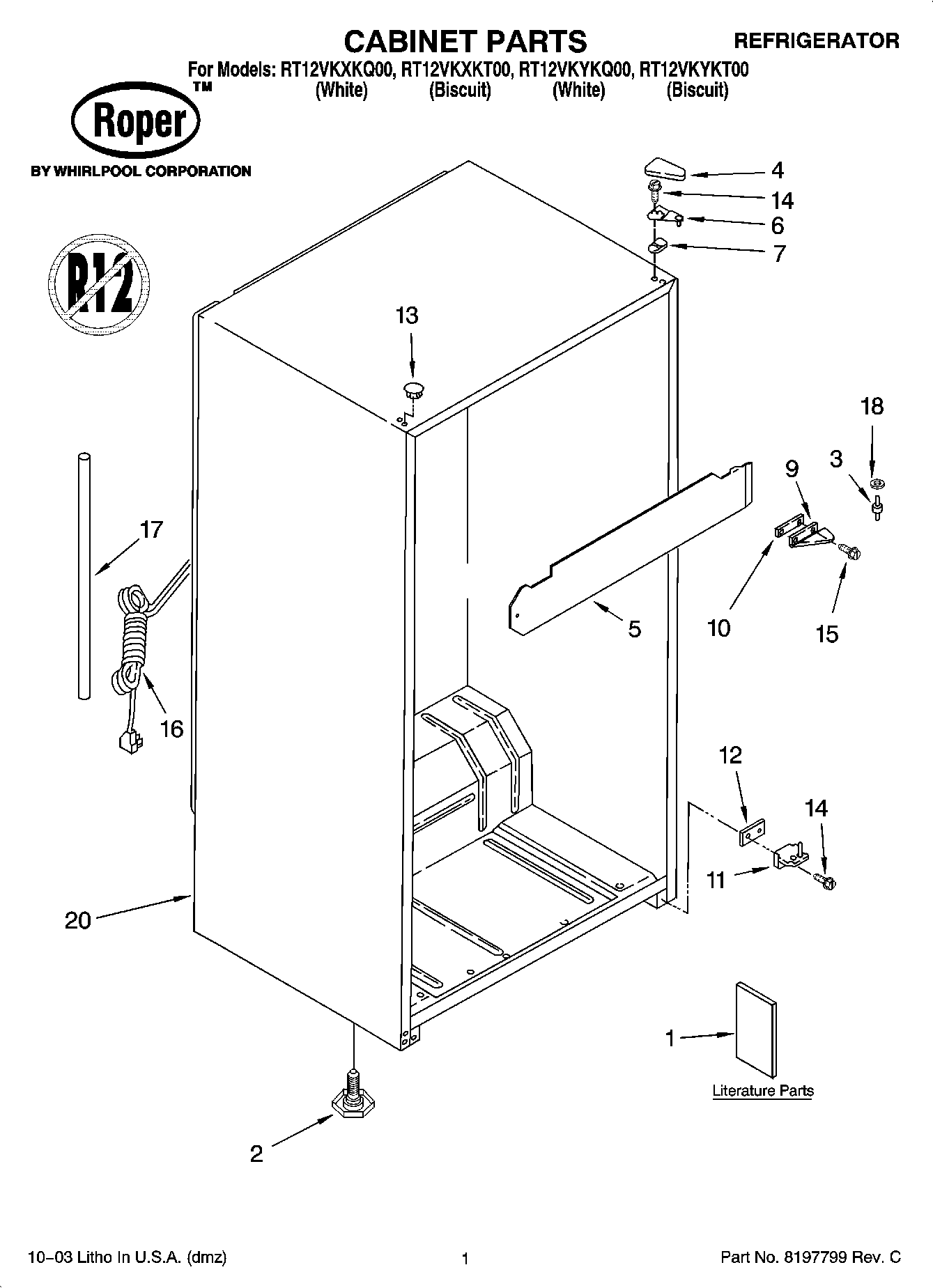

RT12VKXKT00 01 – CABINET PARTS

RT12VKXKT00 01 – CABINET PARTS

Written by

in

RT12VKXKT00 01 – CABINET PARTS

Products

PositionProduct
1Literature Parts (Owner`s Manual)
1Literature Parts (Energy Label)
2W11117769 Whirlpool Refrigerator Leveler
3Pin, Center Hinge
43-80838-003 Whirlpool Refrigerator Cover
4Hinge Cover (Biscuit)
5Center Rail
6Top, Hinge (White)
6Hinge, Top (Biscuit)
74390489 Whirlpool Refrigerator Shim
9Center Hinge (White)
9Center Hinge (Biscuit)
10Shim, Center Hinge
11Bottom Hinge (White)
11Bottom Hinge (Biscuit)
12Shim, Bottom Hinge
13Hole Plug (Biscuit)
13WP2189000 Whirlpool Refrigerator Handle Plug
15WP999367 Whirlpool Refrigerator Screw
16Cord, Service
17Tube Insulation, Heat Exchanger
18Washer, Door Adjust
20Cabinet (Not A Serviceable Part)
