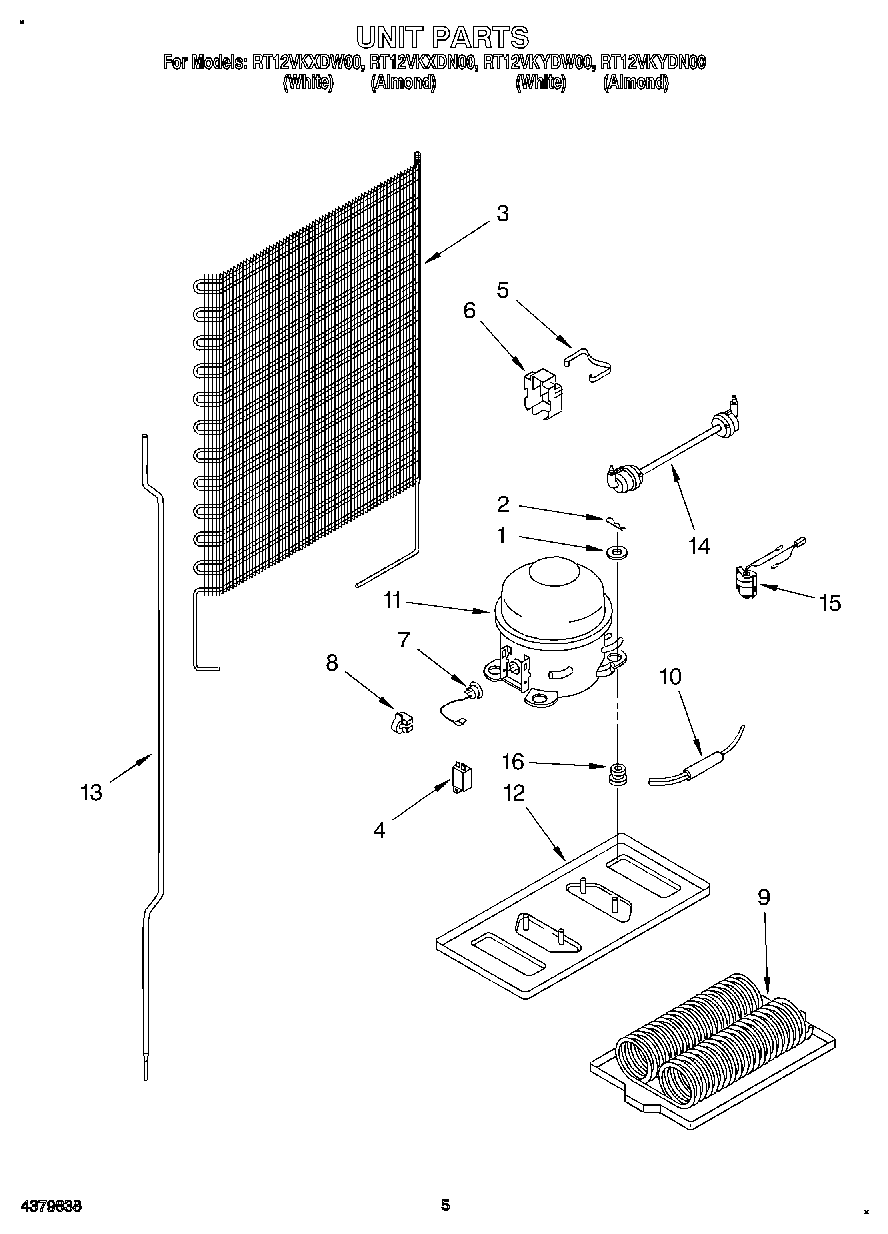

RT12VKYDN00 03 – UNIT

Written by

Products

Position	Product
1	Washer
2	Clip, Hitch Pin
3	Condenser
4	WPW10662129 Whirlpool Refrigerator Run Capacitor
5	Clip, Cover
6	Cover
7	Overload
8	Relay
9	Evaporator
10	W10843121 Whirlpool Refrigerator Tube
11	Compressor
12	Unit Mounting Plate
13	Exchanger, Heat
14	Heater, Defrost
15	Bi-Metal, Defrost
16	Grommet, Mounting Compressor
