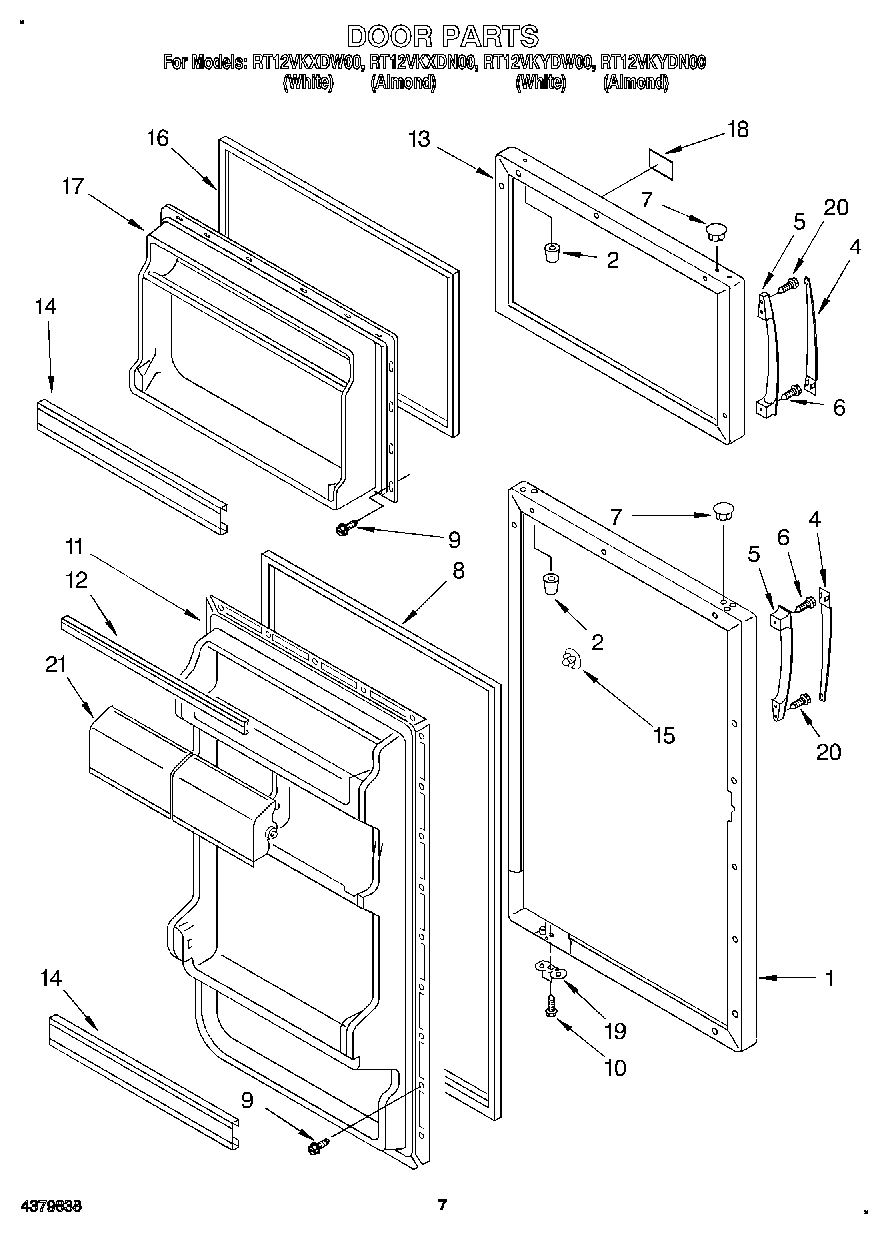

RT12VKYDN00 04 – DOOR, LIT/OPTIONAL

Products

Position	Product
	Use & Care Guide
1	Refrigerator Door Panel (White)
1	Refrigerator Door Panel (Almond)
2	Cap, Hinge Sleeve (4)
4	Insert, Handle (White)
4	Insert, Handle (Almond)
5	Handle Assembly (Includes Items 11, 12, 13 & 14)
5	Handle (Almond Model)
6	Screw
7	Hole Plug (White)
7	Hole Plug (Almond)
8	WP4390534 Whirlpool Refrigerator Door Gasket
9	Screw
10	Screw
11	Interior Door Panel (Refrigerator)
12	Trim, Door Shelf
13	Freezer Door Panel (White)
13	Freezer Door Panel (Almond)
14	Trim, Door Shelf
15	WP2189000 Whirlpool Refrigerator Handle Plug
15	Hole Plug (Almond)
16	WP4390530 Whirlpool Refrigerator Door Gasket
16	Door Gasket, Magnetic (Almond Model)
17	Interior Door Panel (Freezer)
18	Nameplate
19	Bracket, Door Stop
20	WP3-24004-109 Whirlpool Refrigerator Screw
21	350956 Whirlpool Spray Assembly
21	Compartment Door
21	350942 Whirlpool Spray Paint
21	Almond (Uncut)
21	WP72107 Whirlpool Touchup
21	799344 Whirlpool Refrigerator Paint
21	72017 Whirlpool Appliance Touch-Up Paint White
21	350930 Whirlpool White Spray Paint
