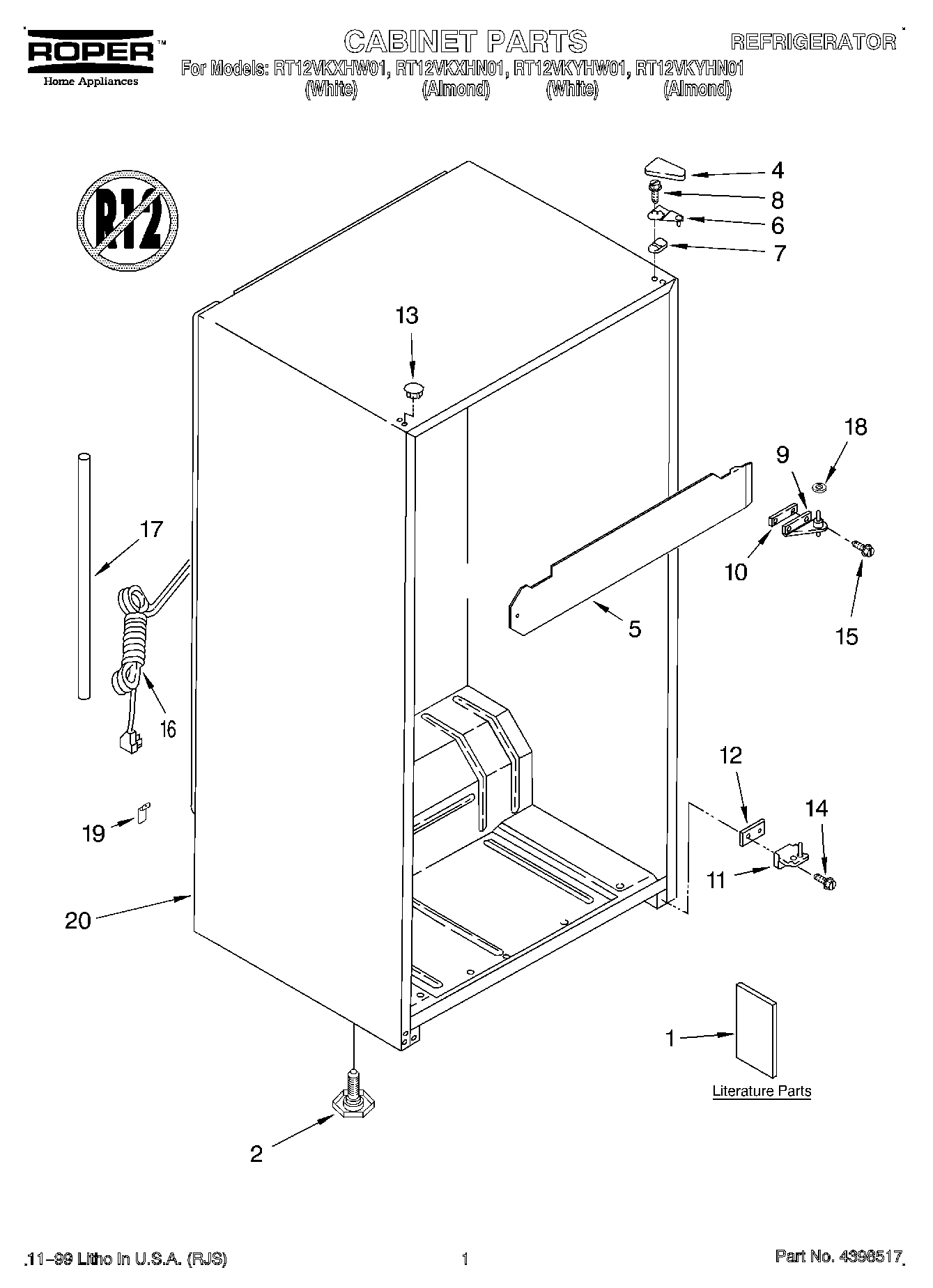

RT12VKYHN01 01 – CABINET, LITERATURE

RT12VKYHN01 01 – CABINET, LITERATURE

Written by

in

RT12VKYHN01 01 – CABINET, LITERATURE

Products

PositionProduct
1Literature Parts (Energy Label)
1Literature Parts (Owner`s Manual)
2W11117769 Whirlpool Refrigerator Leveler
43-80838-003 Whirlpool Refrigerator Cover
5Center Rail
6Top, Hinge
74390489 Whirlpool Refrigerator Shim
8WP8204624 Whirlpool Bolt
9Center Hinge
10Shim, Center Hinge
11Bottom Hinge (Almond Model)
11Bottom Hinge (White Model)
12Shim, Bottom Hinge
13WP2189000 Whirlpool Refrigerator Handle Plug
13Hole Plug (Almond)
15WP999367 Whirlpool Refrigerator Screw
16Cord, Service
17Tube Cover, Heat Exchanger
18Washer, Door Adjust
19Clip
20Cabinet (Not A Serviceable Part)
