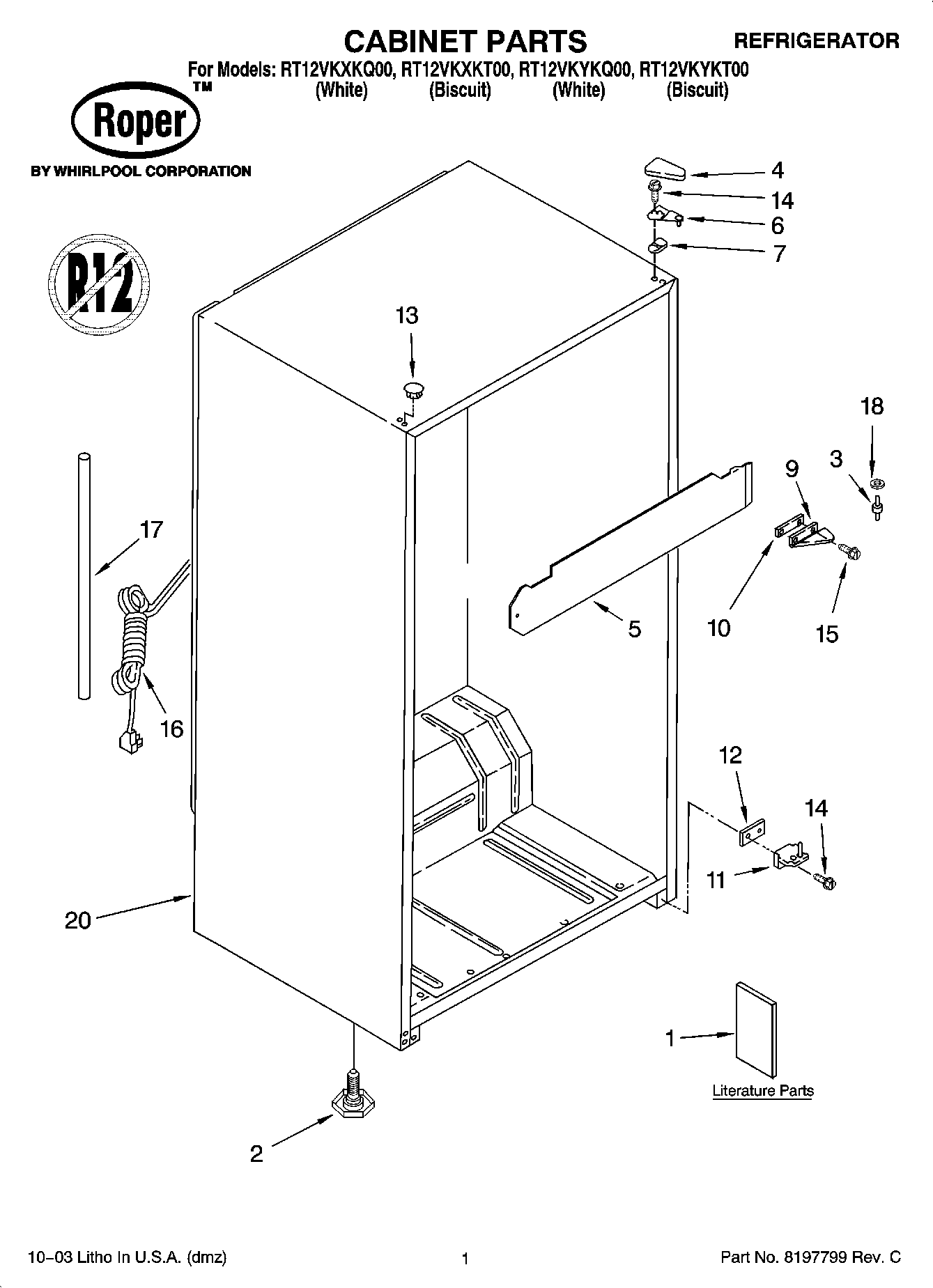

RT12VKYKT00 01 – CABINET PARTS

Products

Position	Product
1	Literature Parts (Energy Label)
1	Literature Parts (Owner`s Manual)
2	W11117769 Whirlpool Refrigerator Leveler
3	Pin, Center Hinge
4	3-80838-003 Whirlpool Refrigerator Cover
4	Hinge Cover (Biscuit)
5	Center Rail
6	Top, Hinge (White)
6	Hinge, Top (Biscuit)
7	4390489 Whirlpool Refrigerator Shim
9	Center Hinge (White)
9	Center Hinge (Biscuit)
10	Shim, Center Hinge
11	Bottom Hinge (Biscuit)
11	Bottom Hinge (White)
12	Shim, Bottom Hinge
13	Hole Plug (Biscuit)
13	WP2189000 Whirlpool Refrigerator Handle Plug
15	WP999367 Whirlpool Refrigerator Screw
16	Cord, Service
17	Tube Insulation, Heat Exchanger
18	Washer, Door Adjust
20	Cabinet (Not A Serviceable Part)
