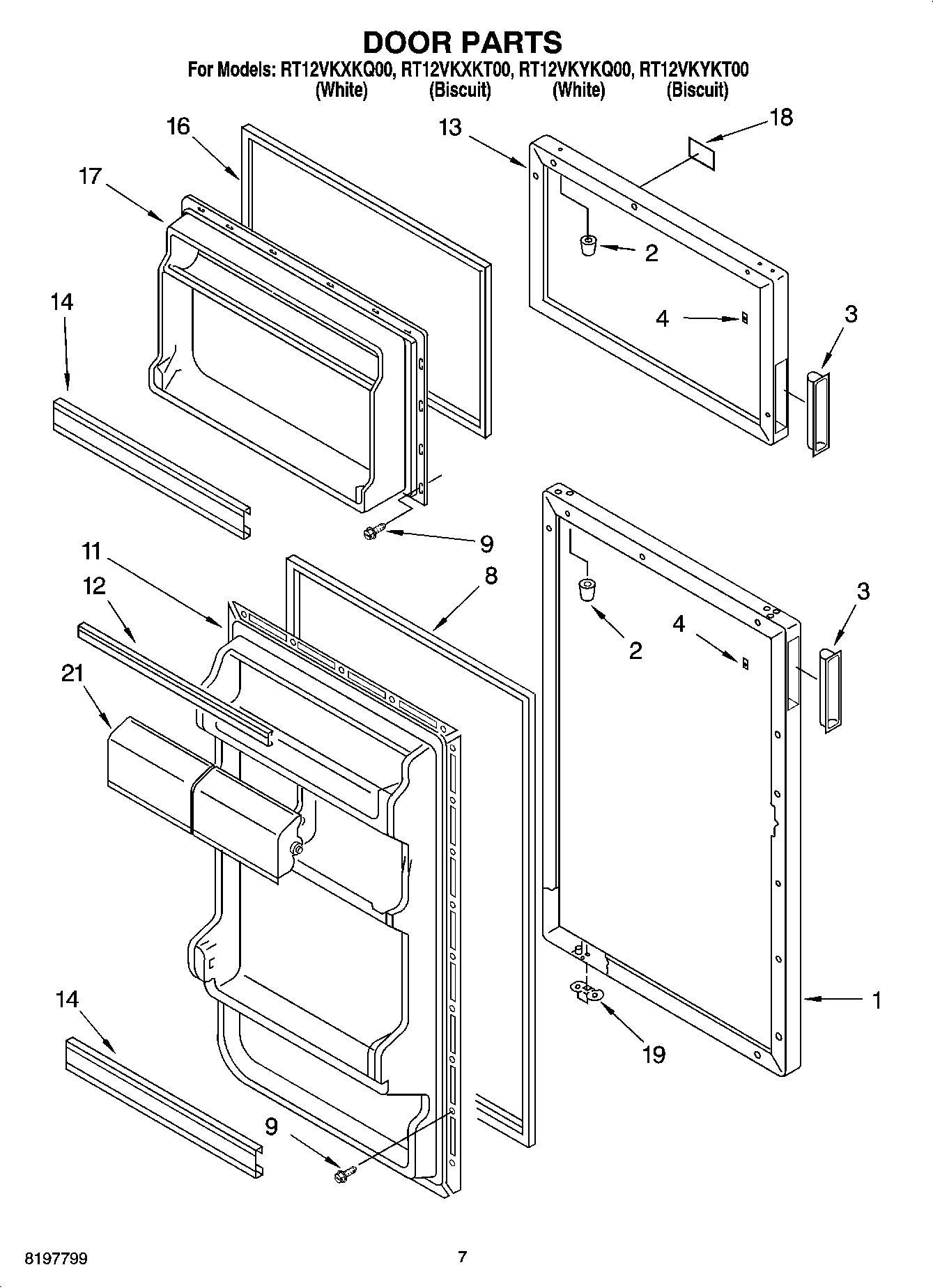

RT12VKYKT00 04 – DOOR PARTS

RT12VKYKT00 04 – DOOR PARTS

Written by

in

RT12VKYKT00 04 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door Panel (Biscuit)
1Refrigerator Door Panel (White)
2Cap, Hinge Sleeve (Biscuit)
24390731 Whirlpool Refrigerator Hinge Bushing
3Handle Kit (Biscuit)
3Handle
43-24059-024 Whirlpool Refrigerator Handle Clip
8Door Gasket, Magnetic (White)
94390598 Whirlpool Refrigerator Screw
11Interior Door Panel (Refrigerator)
12Trim, Door Shelf
13Freezer Door Panel (White)
13Freezer Door Panel (Biscuit)
14Trim, Door Shelf
16Door Gasket, Magnetic (White Model)
17Interior Door Panel (Freezer)
18Nameplate (White)
18Nameplate (Biscuit)
19Bracket, Door Stop
21Compartment Door
