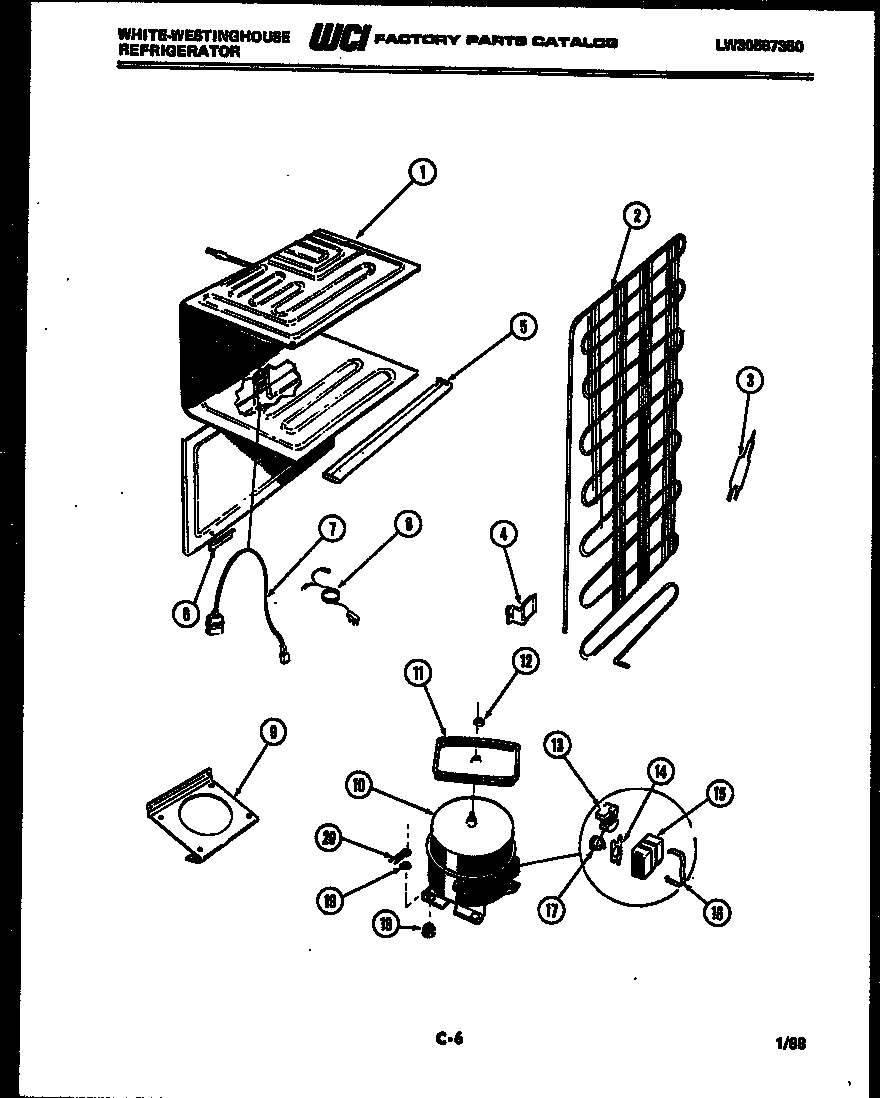

RT140GLD5 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI G187593
2WCI G178225
35303305677 Frigidaire Replacement Filter Dryer Filters
4BRACKET-CONDENSER MOUNTING (4)
5WCI G162980-01
6WCI G178497
7WCI G186467
8CORD, SERVICE
9WCI G162822
10WCI 3916008
10AWCI G167234
10WCI G186043
11NUT, LOCK
12DEFROST PAN
12DEFROST PAN & NUT
13WCI G182225-15
13WCI G182225-13
14RETAINER, OVERLOAD
15WCI G185792
16STRAP-COVER
165303006412 Frigidaire Refrigerator Cover Mounting Strap
17WCI G187544
17WCI G187172
18218513300 Frigidaire Refrigerator Compressor Mount Grommet
19WASHER, COMPRESSOR MOUNTING (4)
20CLIP, COMPRESSOR MOUNTING (4)
20AHOT TUBE REPAIR KIT (NON-ILLUSTRATED)
