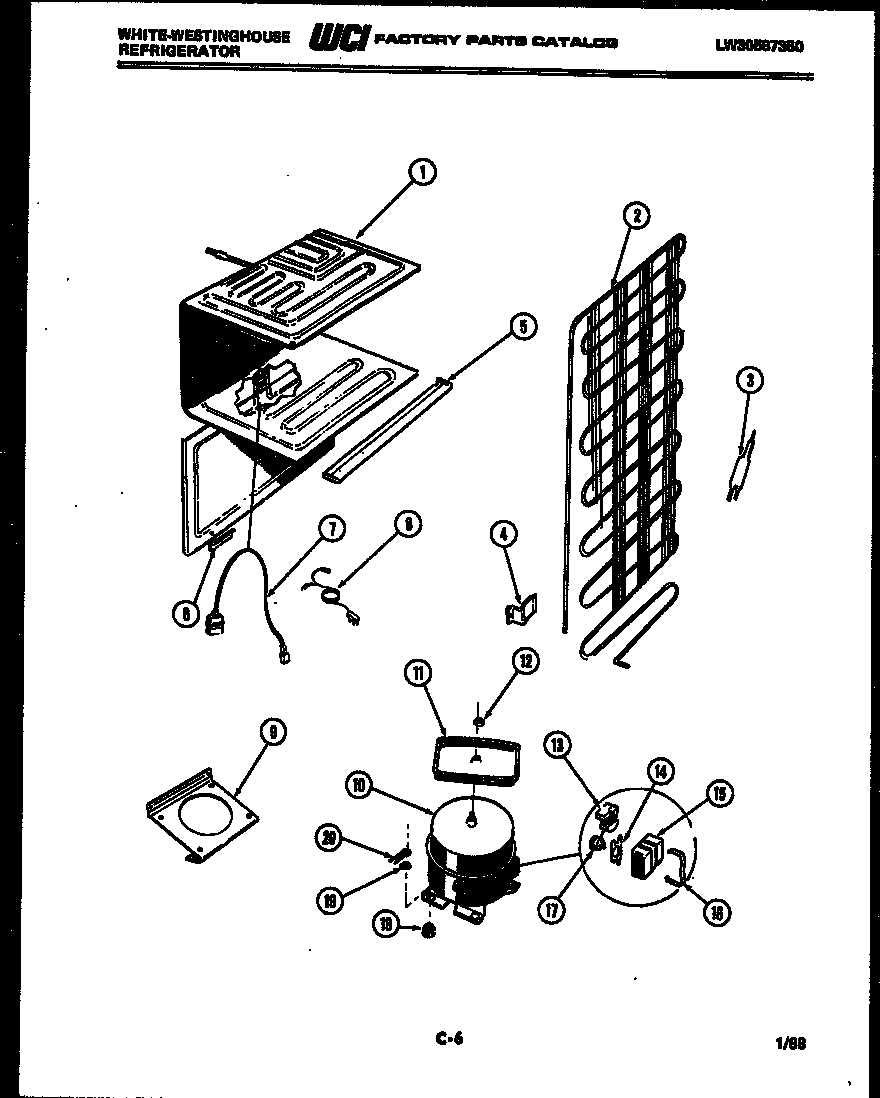

RT140GLV5 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI G187593
2	WCI G178225
3	5303305677 Frigidaire Replacement Filter Dryer Filters
4	BRACKET-CONDENSER MOUNTING (4)
5	WCI G162980-01
6	WCI G178497
7	WCI G186467
8	CORD, SERVICE
9	WCI G162822
10	WCI 3916008
10A	WCI G167234
10	WCI G186043
11	NUT, LOCK
12	DEFROST PAN
12	DEFROST PAN & NUT
13	WCI G182225-15
13	WCI G182225-13
14	RETAINER, OVERLOAD
15	WCI G185792
16	STRAP-COVER
16	5303006412 Frigidaire Refrigerator Cover Mounting Strap
17	WCI G187544
17	WCI G187172
18	218513300 Frigidaire Refrigerator Compressor Mount Grommet
19	WASHER, COMPRESSOR MOUNTING (4)
20	CLIP, COMPRESSOR MOUNTING (4)
20A	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
