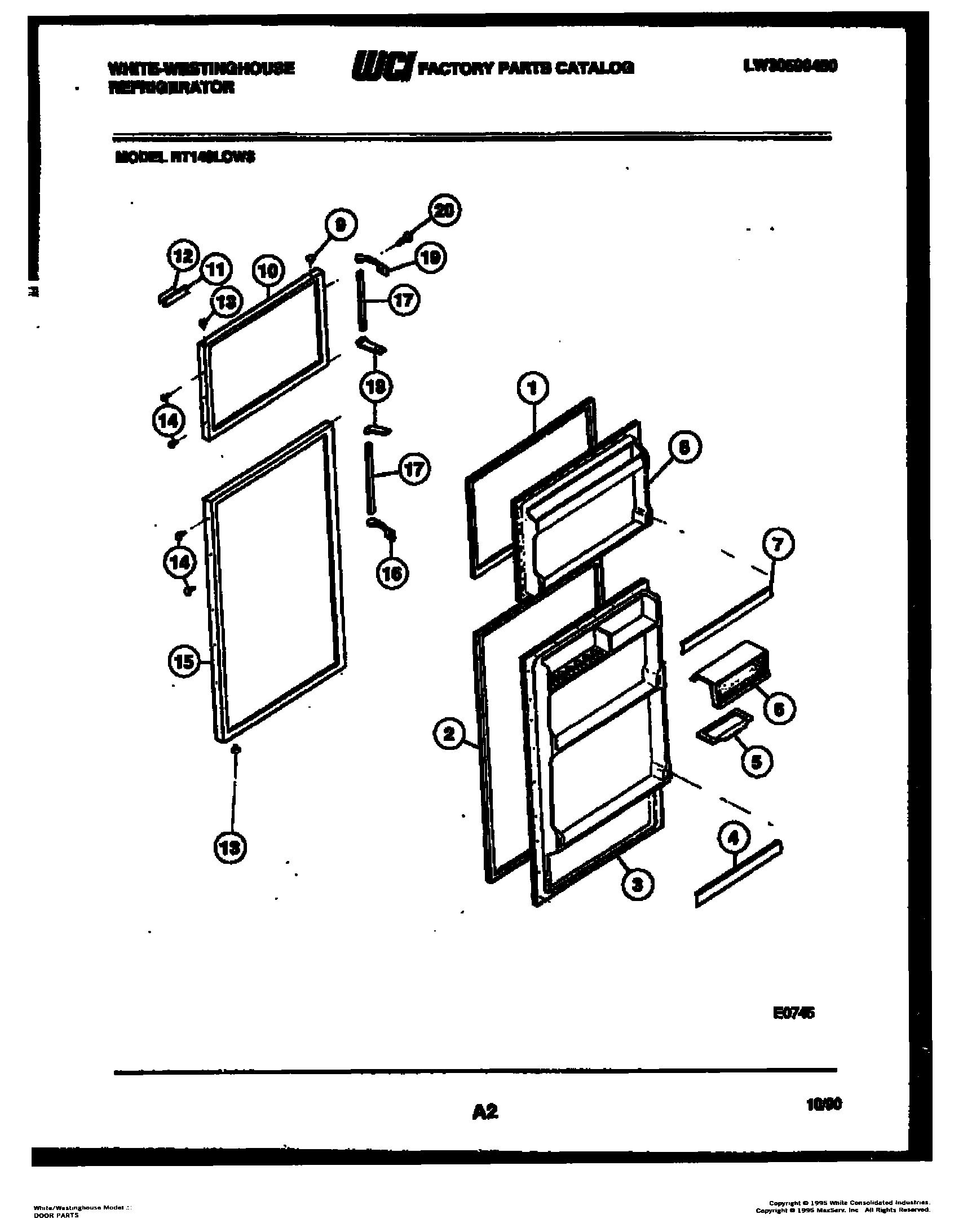

RT140LCD3 02 – DOOR PARTS

Products

Position	Product
*35989	INSULATION-BULK (NON-ILLUSTRATED)
1	WCI 5303001399
2	GASKET-REFRIGERATOR
3	WCI 5318022801
5	5308000716 Frigidaire Refrigerator Dish
6	DOOR – DAIRY
7	DOOR RACK-FRZR
8A	218843801 Frigidaire Refrigerator Screw
8	WCI 5318023001
9	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
10	FREEZER DOOR-ALMOND
11	NAMEPLATE
11A	TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12	WCI G177218-02
13	BEARING-HINGE
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	REFR DOOR-ALMOND
16	HANDLE END
17	HANDLE-DOOR (2)
18	WCI 5303001296
19	HANDLE END
20	WCI 5308011745
