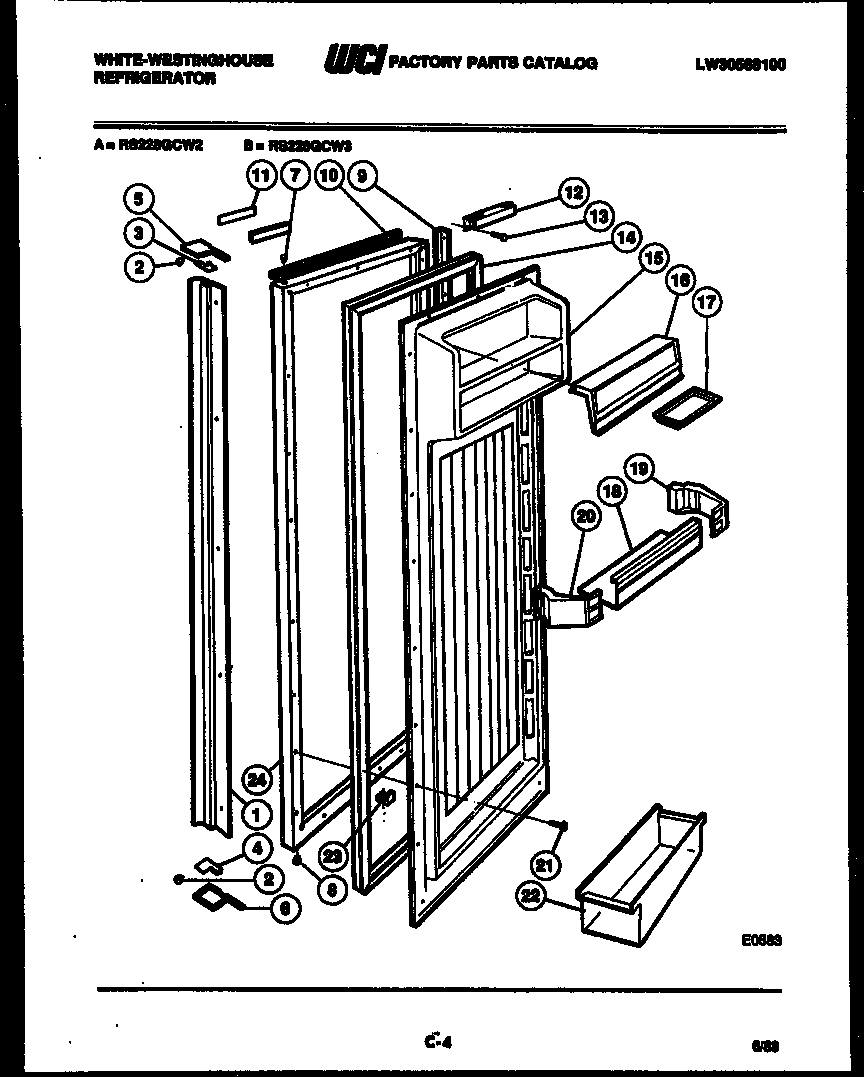

RT140LCW0 03 – CABINET PARTS

Products

Position	Product
*96918	NUT, ANCHOR (2)
1	WCI G174747--01
2	WCI G183861
3	BRACKET, TOP HINGE
4	COVER, TOP HINGE, AVOCADO
4	COVER HINGE, WHITE
5	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
5A	WCI G103903
6	215667501 Frigidaire Refrigerator Ice Tray Primary
7	TUBE, INSULATION (2)
8	TRIM (4)
9	BRACKET, HINGE CENTER
10	WCI G142220
11	CLIP (4)
12	WCI G163220
13	WCI 3016980
14A	WASHER (2)
14	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
15	CLAMP, MULLION MOUNTING
16	5309918806 Frigidaire Refrigerator Light Switch Door
17	MULLION
18	WCI G187921
19	TUBE
20	WCI G162205-09
21	WCI G174733
22	KNOB
23	316538904 Frigidaire Oven Lamp Light
24	SOCKET LIGHT
25	WCI G176722-02
26	WCI G180037
27	SHELF-SLIDING (2)
28	COVER
29	WCI G174734
30	WCI G162973-34
31	BRACKET, HINGE, LOWER
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	SHIM, HINGE
34	TAPPING, PLATE (2)
35	WCI G166912
36	LEG-LEVELING (2)
