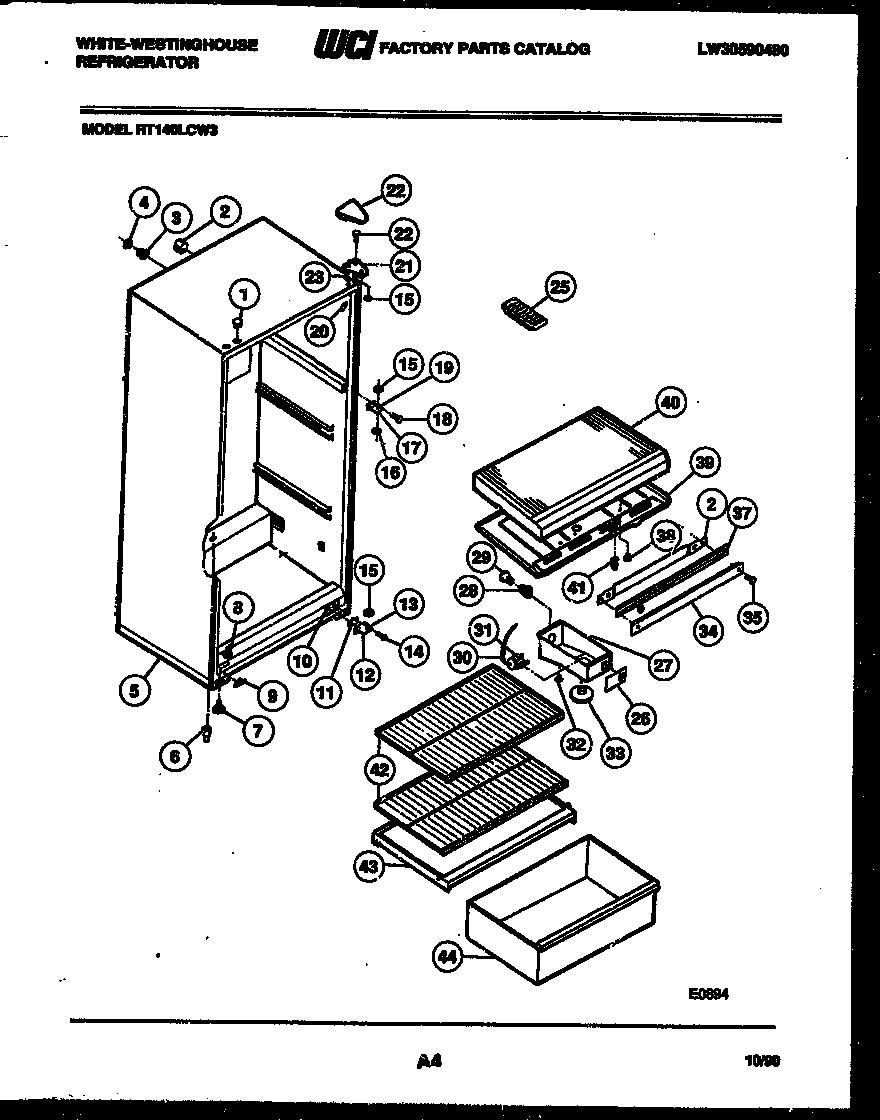

RT140LCW3 03 – CABINET PARTS

Products

Position	Product
1	PLUG-BUTTON, WHITE
2	TUBE-RUBBER
3	WCI 5303001286
4	WCI 5303001287
5	WCI 5303006086
6	TUBE – DRAIN
7	SCREW-LEVELING (4)
8	WCI 5308003584
9	COVER-HOLE, LOWER HINGE
10	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
11	SHIM-LOWER HINGE
12	HINGE – LOWER DOOR
13	5303001321 Frigidaire Refrigerator Lower Hinge Pin
14	241710601 Frigidaire Refrigerator Screw
15	WASHER, .34 X .62 X .05, NYLON
16	WASHER, .28 X .62 X .19, NYLON
17	WCI 5308000184
19	BRACKET-CTR HINGE
20	CORNER TRIM, WHITE (4)
21	BRACKET-UPPER HINGE
23	SHIM – UPPER HINGE
24	COVER-UPPER HINGE, WHITE
25	215667501 Frigidaire Refrigerator Ice Tray Primary
26	WCI G000180105
27	BOX-CONTROL
27A	5304455650 Frigidaire Refrigerator Screw
28	SOCKET-LIGHT/LAMP
29	316538904 Frigidaire Oven Lamp Light
30	TUBE
31	WCI 5308006984
31B	WCI 5303001260
31A	SWITCH-ENERGY SAVER, SLIDE TYPE
32	PLUG BTN (NON-ILLUSTRATED)
33	WCI 5308010011
34	WCI 5303200465
35B	WCI 3001370
35	WCI 5308012258
35A	WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
36	WCI 5308017408
37	WCI 5308003604
38	WCI 5303001380
39	WCI 3016980
40	WCI 5308000986
41	5309918806 Frigidaire Refrigerator Light Switch Door
42	WCI 53127217303
43	WCI 5308000749
44	PAN – CRISPER
