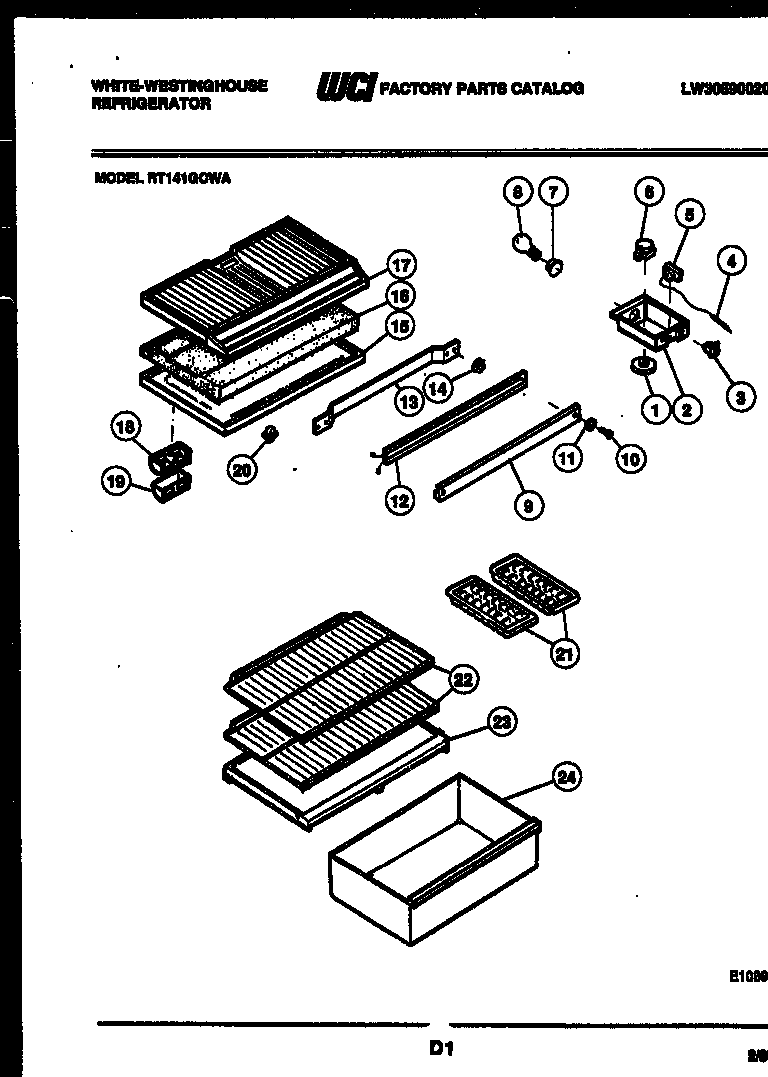

RT141GCDA 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 08006978
2BPLUG BTN (NON-ILLUSTRATED)
2ALABEL-CONTROL BOX
2WCI 5308009730
2C5304455650 Frigidaire Refrigerator Screw
3SWITCH, SLIDE
4TUBE
5WCI 5308015762
5AWCI 5303001260
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A5304455649 Frigidaire Refrigerator Screw
7SOCKET-LIGHT/LAMP
8316538904 Frigidaire Oven Lamp Light
9WCI 5303916134
10WCI 5308012258
11WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
12WCI 5308017408
13WCI 5308003604
14WCI 3001370
15TOP PANEL-REFR, W/ SNAP BUSHING
15AWCI 5303001380
16WCI 5308000759
16AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
17WCI 5308000748
18DEFLECTOR-AIR
19COVER – AIR DEFLECTOR
205309918806 Frigidaire Refrigerator Light Switch Door
21215667501 Frigidaire Refrigerator Ice Tray Primary
22WCI G172175-01
23WCI 5308000749
24PAN – CRISPER
