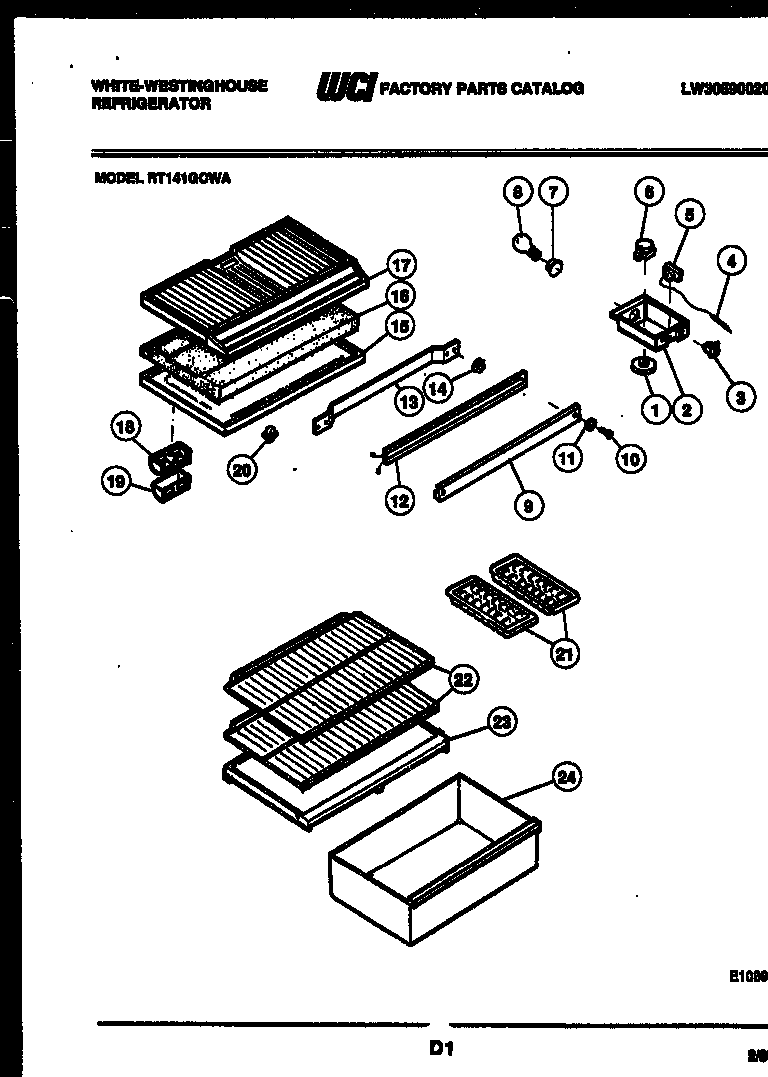

RT141GCHA 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 08006978
2B	PLUG BTN (NON-ILLUSTRATED)
2	WCI 5308009730
2A	LABEL-CONTROL BOX
2C	5304455650 Frigidaire Refrigerator Screw
3	SWITCH, SLIDE
4	TUBE
5A	WCI 5303001260
5	WCI 5308015762
6	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A	5304455649 Frigidaire Refrigerator Screw
7	SOCKET-LIGHT/LAMP
8	316538904 Frigidaire Oven Lamp Light
9	WCI 3916132
10	WCI 5308012258
11	WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
12	WCI 5308017408
13	WCI 5308003604
14	WCI 3001370
15	TOP PANEL-REFR, W/ SNAP BUSHING
15A	WCI 5303001380
16A	HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
16	WCI 5308000759
17	WCI 5308000748
18	DEFLECTOR-AIR
19	COVER - AIR DEFLECTOR
20	5309918806 Frigidaire Refrigerator Light Switch Door
21	215667501 Frigidaire Refrigerator Ice Tray Primary
22	WCI G172175-01
23	WCI 5308000749
24	PAN - CRISPER
