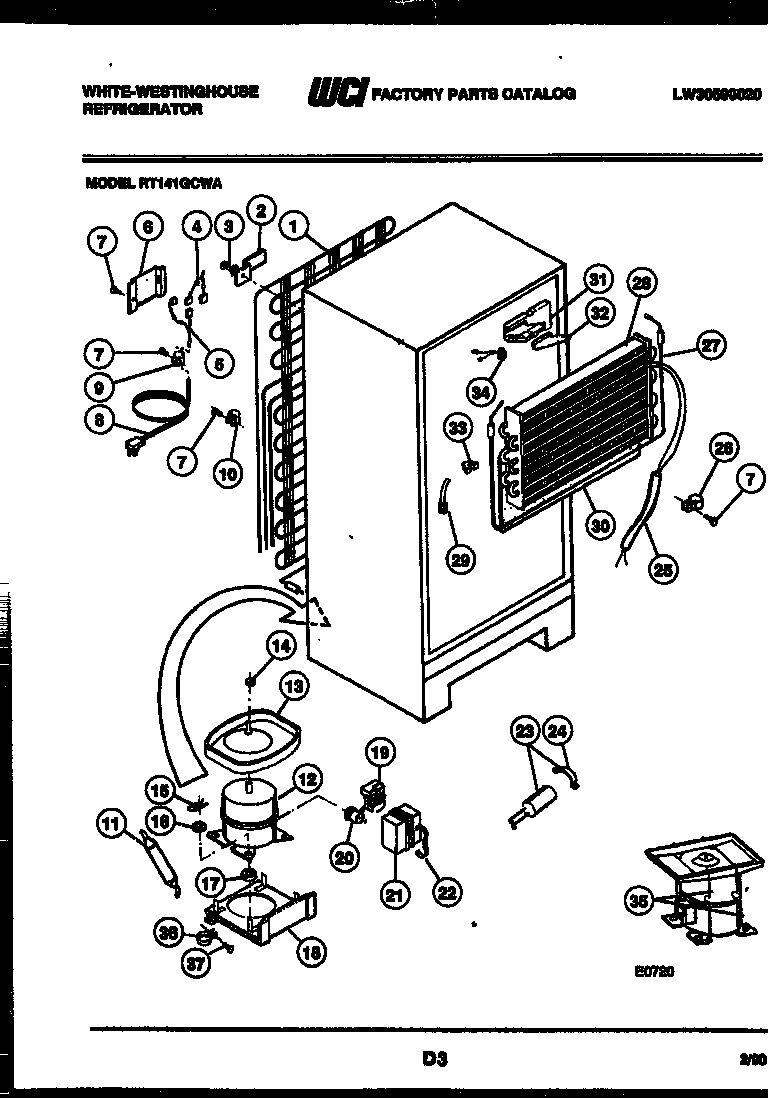

RT141GCVA 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

RT141GCVA 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RT141GCVA 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 5303001341
2BRACKET-MTG (4)
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
35308000039 Frigidaire Refrigerator Screw
4HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
5WIRING HARNESS, COMPRESSOR,
6WCI 5303001197
75304455651 Frigidaire Refrigerator Screw
8CORD-ELECTRIC POWER
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
115303305677 Frigidaire Replacement Filter Dryer Filters
12WCI 3916012
13PAN-DEFROST-ORIG COMPRESSOR
13APAN-DEFROST DRAIN, ORIG/SVCE COMPR
14Nut,lock `1/4-20 ,drain pan mtg
15CLIP – COMPRESSOR MTG
16WASHER-COMPR MTG
17218513300 Frigidaire Refrigerator Compressor Mount Grommet
18WCI 5308009596
19RELAY-TL
20WCI 3202863
20AWCI 3202891
21WCI 08016583
22STRAP-BALE
23WCI 5303018427
24STRAP CAPACITOR
25HEAT EXCHANGER, SUCTION LINE
265308000133 Frigidaire Refrigerator Clamp
27WCI 5303001362
28EVAPORATOR
295308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
30INSULATOR-EVAP, PLASTIC
31INSULATION BLOCK, RH
32INSULATION PLUG, RH
33INSULATION BLOCK, LH
345303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
35A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
35PAN RETAINER KIT, SERVICE
35BHOT TUBE REPAIR KIT-SERVICE
36WCI 3201679
37218843801 Frigidaire Refrigerator Screw
