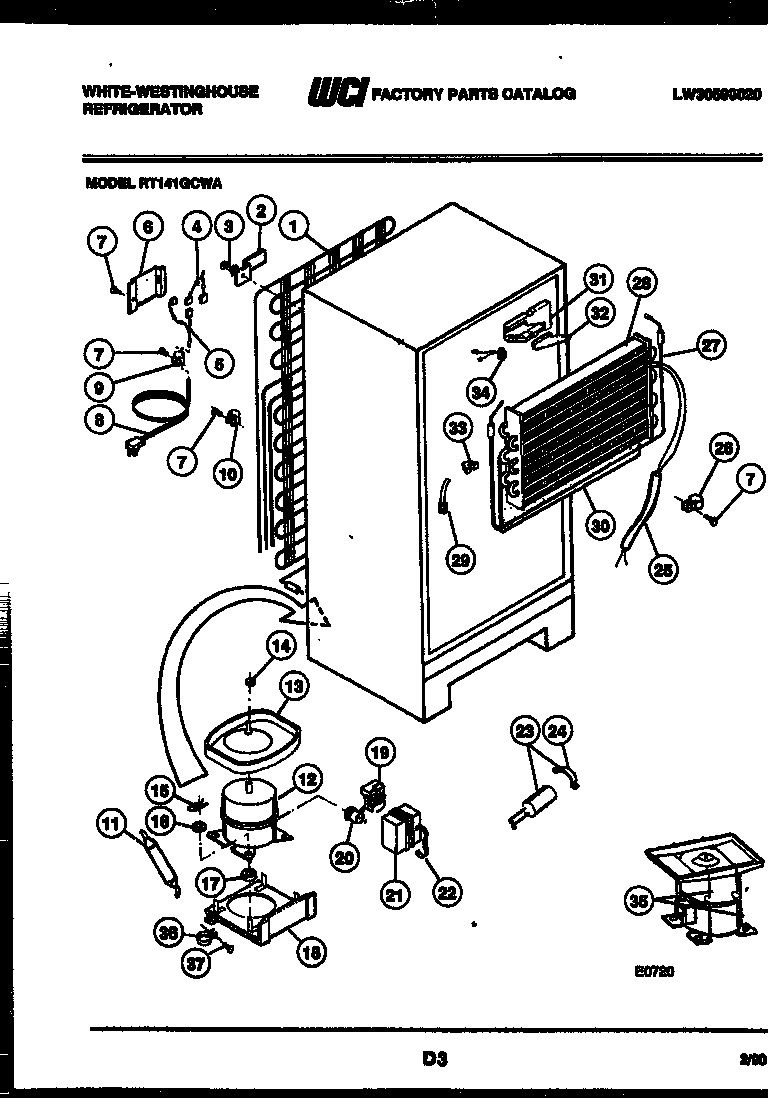

RT141GCWA 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI 5303001341
2	BRACKET-MTG (4)
2A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
3	5308000039 Frigidaire Refrigerator Screw
4	HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
5	WIRING HARNESS, COMPRESSOR,
6	WCI 5303001197
7	5304455651 Frigidaire Refrigerator Screw
8	CORD-ELECTRIC POWER
9	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
11	5303305677 Frigidaire Replacement Filter Dryer Filters
12	WCI 3916012
13	PAN-DEFROST-ORIG COMPRESSOR
13A	PAN-DEFROST DRAIN, ORIG/SVCE COMPR
14	Nut,lock `1/4-20 ,drain pan mtg
15	CLIP - COMPRESSOR MTG
16	WASHER-COMPR MTG
17	218513300 Frigidaire Refrigerator Compressor Mount Grommet
18	WCI 5308009596
19	RELAY-TL
20	WCI 3202863
20A	WCI 3202891
21	WCI 08016583
22	STRAP-BALE
23	WCI 5303018427
24	STRAP CAPACITOR
25	HEAT EXCHANGER, SUCTION LINE
26	5308000133 Frigidaire Refrigerator Clamp
27	WCI 5303001362
28	EVAPORATOR
29	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
30	INSULATOR-EVAP, PLASTIC
31	INSULATION BLOCK, RH
32	INSULATION PLUG, RH
33	INSULATION BLOCK, LH
34	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
35A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
35	PAN RETAINER KIT, SERVICE
35B	HOT TUBE REPAIR KIT-SERVICE
36	WCI 3201679
37	218843801 Frigidaire Refrigerator Screw
