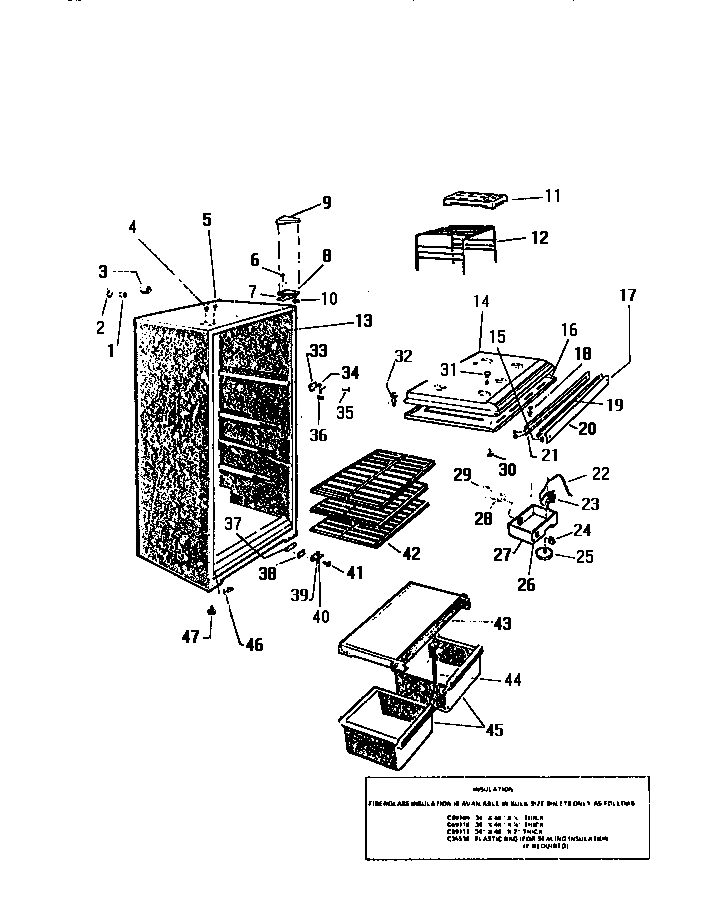

RT142GCD2 03 – CABINET, SHELVES, DIVIDER, FAN

Products

Position	Product
*63285	PLASTIC BAG
*63281	WCI G177353
*63284	FIBERGLASS 34``X48``X11/2 `` TH
*63282	FIBERGLASS INSULATION 34``X48``X1/2`` TH
*63283	FIBERGLASS INSULATION 34``X48``X1``TH
1	WCI G174734
2	WCI G174733
3	TUBE, INSULATION (2)
4D	WCI G169332-11
5	WCI G177747-11
6	241710601 Frigidaire Refrigerator Screw
7	WCI G183861
8	BRACKET, TOP HINGE
9	COVER, TOP HINGE, ALMOND
11	ICE TRAY
12	5303282284 Frigidaire Wire Shelf
13	TRIM CORNER-ALMOND
14	WCI G163220
16	WCI G174766
17	WASHER (2)
17	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
18	5309918806 Frigidaire Refrigerator Light Switch Door
19	CLAMP, MULLION MOUNTING
20	MULLION
21	HTR, CENTER RAIL
22	TUBE
23	WCI G162667-09
24	WCI G178402
25	KNOB
26	WCI G180197
27	WCI G176722-01
28	WCI G163802
29	WCI Q63749
30	SCREW (5)
31	WCI G164854
32	CLIP (4)
33	BRACKET, HINGE CENTER
34	WCI G142220
35	SCREW, MULLION MOUNTING (2)
36	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
37	TAPPING PLATE (2)
38	SHIM, HINGE
39	5303001321 Frigidaire Refrigerator Lower Hinge Pin
40	BRACKET, HINGE, LOWER
42	SHELF-SLIDING (2)
43	COVER
44	SUPPORT, CRISPER COVER
45	PAN, CRISPER
46	WCI G166912
47A	LEG-LEVELING (2)
47	NUT, ANCHOR (2)
