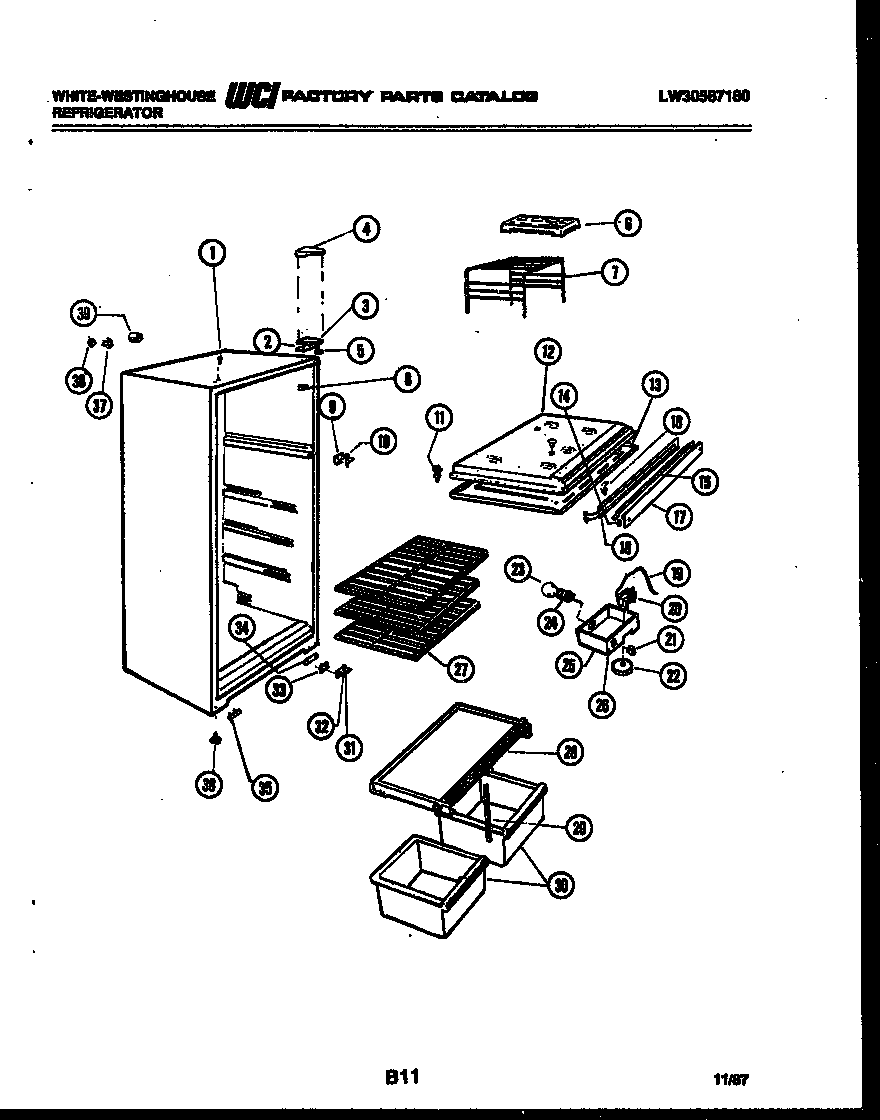

RT142GCF5 03 – CABINET PARTS

Products

Position	Product
1	WCI G174747-10
2	WCI G183861
3	BRACKET, TOP HINGE
4	COVER HINGE, COFFEE
5	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
5	WCI G103903
6	215667501 Frigidaire Refrigerator Ice Tray Primary
7	5303282284 Frigidaire Wire Shelf
8	TRIM, COFFEE
9	BRACKET, HINGE CENTER
10	WCI G142220
11	CLIP (4)
12	WCI G163220
13	WCI G174766
14A	WASHER (2)
14	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
15	CLAMP, MULLION MOUNTING
16	5309918806 Frigidaire Refrigerator Light Switch Door
17	WCI G174520-10
18	WCI G187921
19	TUBE
20	WCI G162205-09
21	WCI G178402-02
22	KNOB
23	316538904 Frigidaire Oven Lamp Light
24	SOCKET LIGHT
25	WCI G176722-01
26	WCI G180197
27	SHELF-SLIDING (2)
28	COVER
29	SUPPORT, CRISPER COVER
30	PAN, CRISPER
31	BRACKET, HINGE, LOWER
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	SHIM, HINGE
34	TAPPING PLATE (2)
35	WCI G166912
36	LEG-LEVELING (2)
36A	NUT, ANCHOR (2)
37	WCI G174733
38	WCI G174734
39	TUBE, INSULATION (2)
