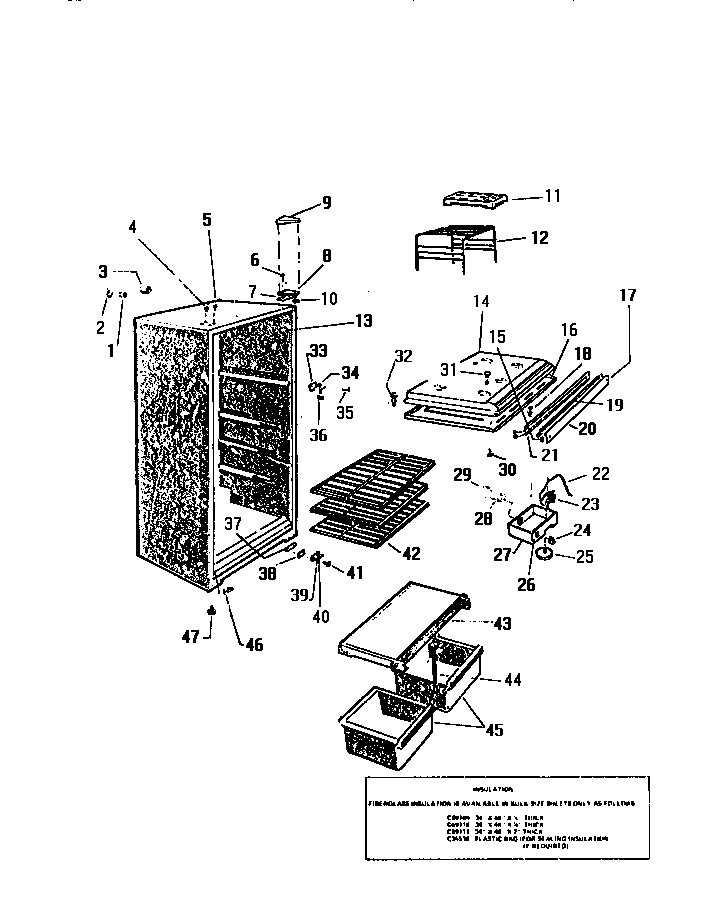

RT142GCV3 03 – CABINET, SHELVES, DIVIDER, FANadmin2025-04-26T08:44:23+00:00RT142GCV3 03 – CABINET, SHELVES, DIVIDER, FAN
Products
| Position | Product |
|---|
| *63281 | WCI G177353 |
| *63282 | FIBERGLASS INSULATION 34``X48``X1/2`` TH |
| *63283 | FIBERGLASS INSULATION 34``X48``X1``TH |
| *63284 | FIBERGLASS 34``X48``X11/2 `` TH |
| *63285 | PLASTIC BAG |
| 1 | WCI G174734 |
| 2 | WCI G174733 |
| 3 | TUBE, INSULATION (2) |
| 4 | WCI G169332-08 |
| 5 | WCI G177747-08 |
| 6 | 241710601 Frigidaire Refrigerator Screw |
| 7 | WCI G183861 |
| 8 | BRACKET, TOP HINGE |
| 9 | COVER, TOP HINGE, AVOCADO |
| 11 | ICE TRAY |
| 12 | 5303282284 Frigidaire Wire Shelf |
| 13 | TRIM-CAB CORNER-AVOC |
| 14 | WCI G163220 |
| 16 | WCI G174766 |
| 17 | SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED) |
| 17 | WASHER (2) |
| 18 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 19 | CLAMP, MULLION MOUNTING |
| 20 | MULLION |
| 21 | HTR, CENTER RAIL |
| 22 | TUBE |
| 23 | WCI G162667-09 |
| 24 | WCI G178402 |
| 25 | KNOB |
| 26 | WCI G180197 |
| 27 | WCI G176722-01 |
| 28 | WCI G163802 |
| 29 | WCI Q63749 |
| 30 | SCREW (5) |
| 31 | WCI G164854 |
| 32 | CLIP (4) |
| 33 | BRACKET, HINGE CENTER |
| 34 | WCI G142220 |
| 35 | SCREW, MULLION MOUNTING (2) |
| 36 | WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET) |
| 37 | TAPPING PLATE (2) |
| 38 | SHIM, HINGE |
| 39 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 40 | BRACKET, HINGE, LOWER |
| 42 | SHELF-SLIDING (2) |
| 43 | COVER |
| 44 | SUPPORT, CRISPER COVER |
| 45 | PAN, CRISPER |
| 46 | WCI G166912 |
| 47A | LEG-LEVELING (2) |
| 47 | NUT, ANCHOR (2) |
