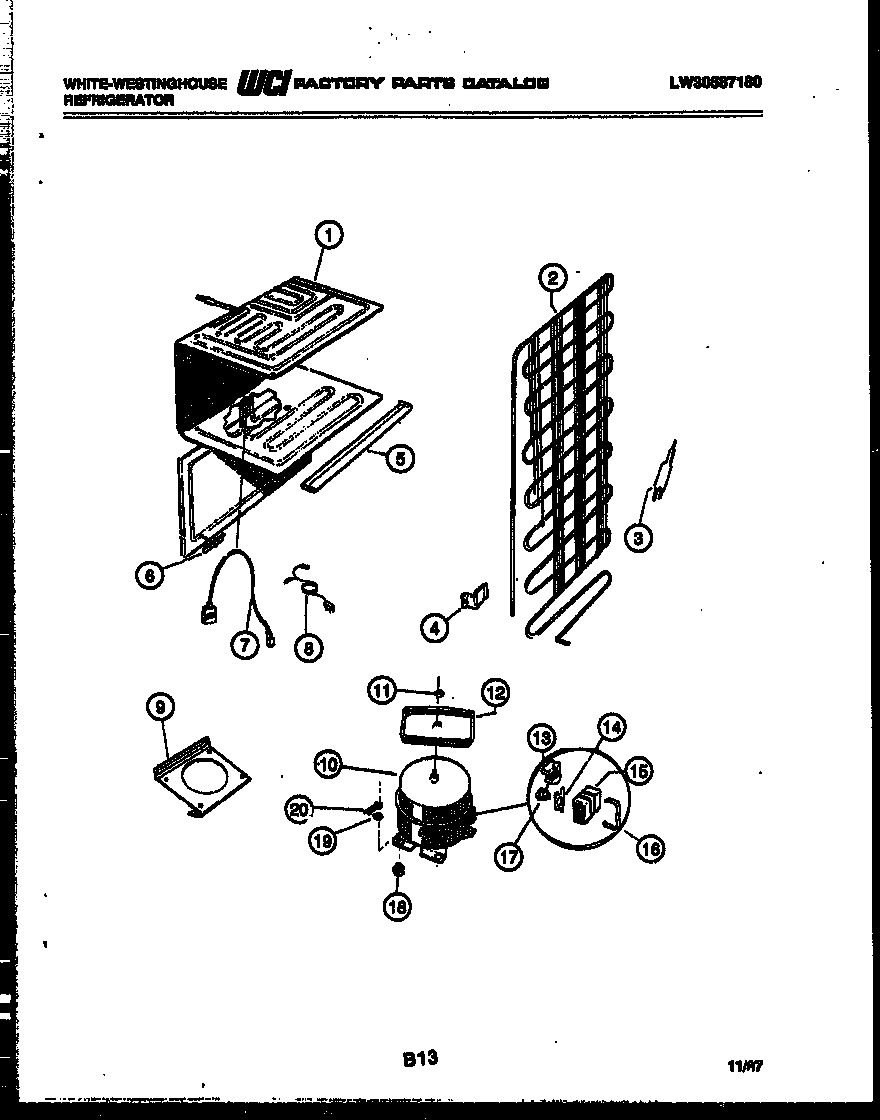

RT142GLF5 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*38763	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
1	WCI G187593
2	WCI G178225
3	5303305677 Frigidaire Replacement Filter Dryer Filters
4	BRACKET-CONDENSER MOUNTING (4)
5	WCI G162980-01
6	WCI G178497
7	WCI G186467
8	CORD, SERVICE
9	WCI G162822
10	WCI G186043
10	WCI G167234
11	NUT, LOCK
12	DEFROST PAN
13	WCI G182225-13
14	RETAINER, OVERLOAD
16	5303006412 Frigidaire Refrigerator Cover Mounting Strap
17	WCI G187172
18	218513300 Frigidaire Refrigerator Compressor Mount Grommet
19	WASHER, COMPRESSOR MOUNTING (4)
20	CLIP, COMPRESSOR MOUNTING (4)
