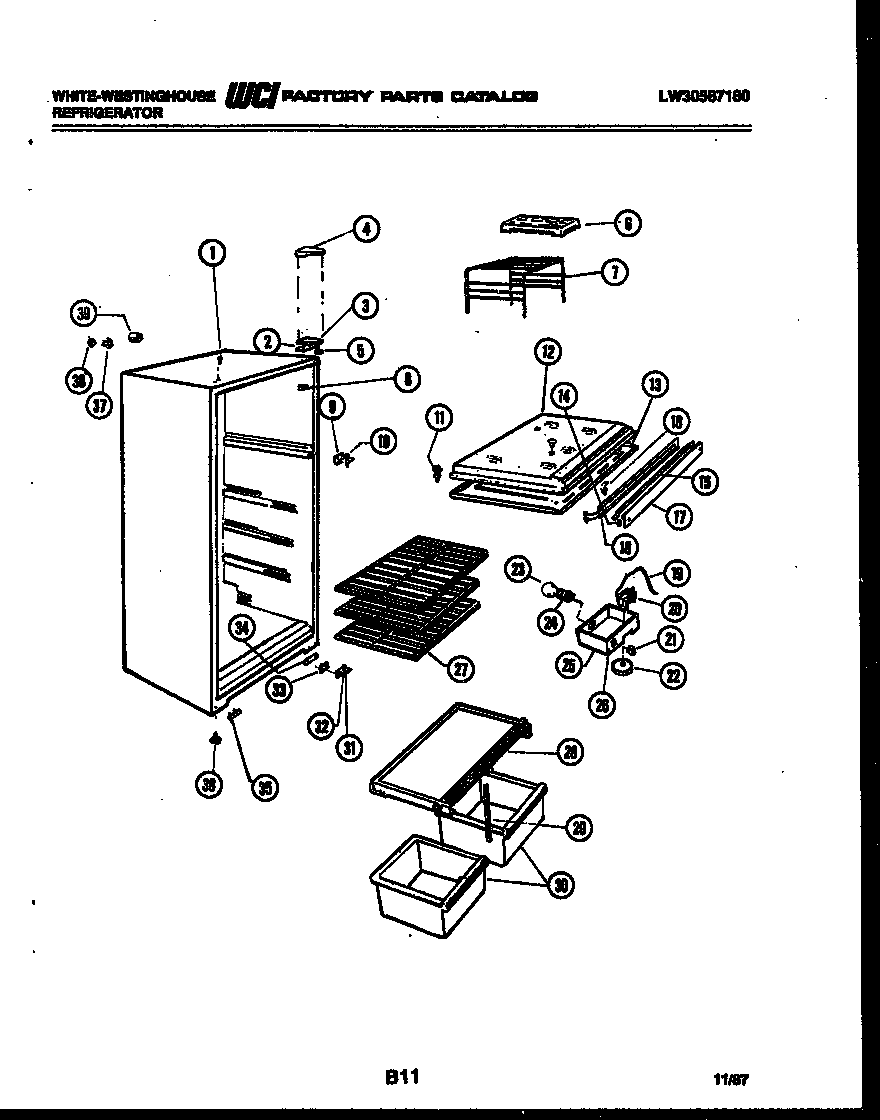

RT142GLW5 03 – CABINET PARTSadmin2025-04-26T08:44:12+00:00RT142GLW5 03 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | WCI G174747-09 |
| 1 | WCI G174747-08 |
| 1 | WCI G174747-11 |
| 1 | WCI G174747--01 |
| 1 | WCI G174747-10 |
| 2 | WCI G183861 |
| 3 | BRACKET, TOP HINGE |
| 4 | COVER, TOP HINGE, AVOCADO |
| 4 | COVER HINGE, WHITE |
| 4 | COVER HINGE, WHEAT |
| 4 | COVER, TOP HINGE, ALMOND |
| 4 | COVER HINGE, COFFEE |
| 5 | WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET) |
| 5 | WCI G103903 |
| 6 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 7 | 5303282284 Frigidaire Wire Shelf |
| 8 | TRIM-CAB CORNER-AVOC |
| 8 | TRIM, COFFEE |
| 8 | TRIM CORNER-ALMOND |
| 8 | TRIM (4) |
| 8 | TRIM, WHEAT |
| 9 | BRACKET, HINGE CENTER |
| 10 | WCI G142220 |
| 11 | CLIP (4) |
| 12 | WCI G163220 |
| 13 | WCI G174766 |
| 14 | SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED) |
| 14 | WASHER (2) |
| 15 | CLAMP, MULLION MOUNTING |
| 16 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 17 | MULLION |
| 17 | WCI G174520-10 |
| 17 | WCI G174520-08 |
| 17 | WCI G174520-11 |
| 17 | WCI G174520-09 |
| 18 | WCI G187921 |
| 19 | TUBE |
| 20 | WCI G162205-09 |
| 21 | WCI G178402-02 |
| 22 | KNOB |
| 23 | 316538904 Frigidaire Oven Lamp Light |
| 24 | SOCKET LIGHT |
| 25 | WCI G176722-01 |
| 26 | WCI G180197 |
| 27 | SHELF-SLIDING (2) |
| 28 | COVER |
| 29 | SUPPORT, CRISPER COVER |
| 30 | PAN, CRISPER |
| 31 | BRACKET, HINGE, LOWER |
| 32 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 33 | SHIM, HINGE |
| 34 | TAPPING PLATE (2) |
| 35 | WCI G166912 |
| 36 | NUT, ANCHOR (2) |
| 36 | LEG-LEVELING (2) |
| 37 | WCI G174733 |
| 38 | WCI G174734 |
| 39 | TUBE, INSULATION (2) |
