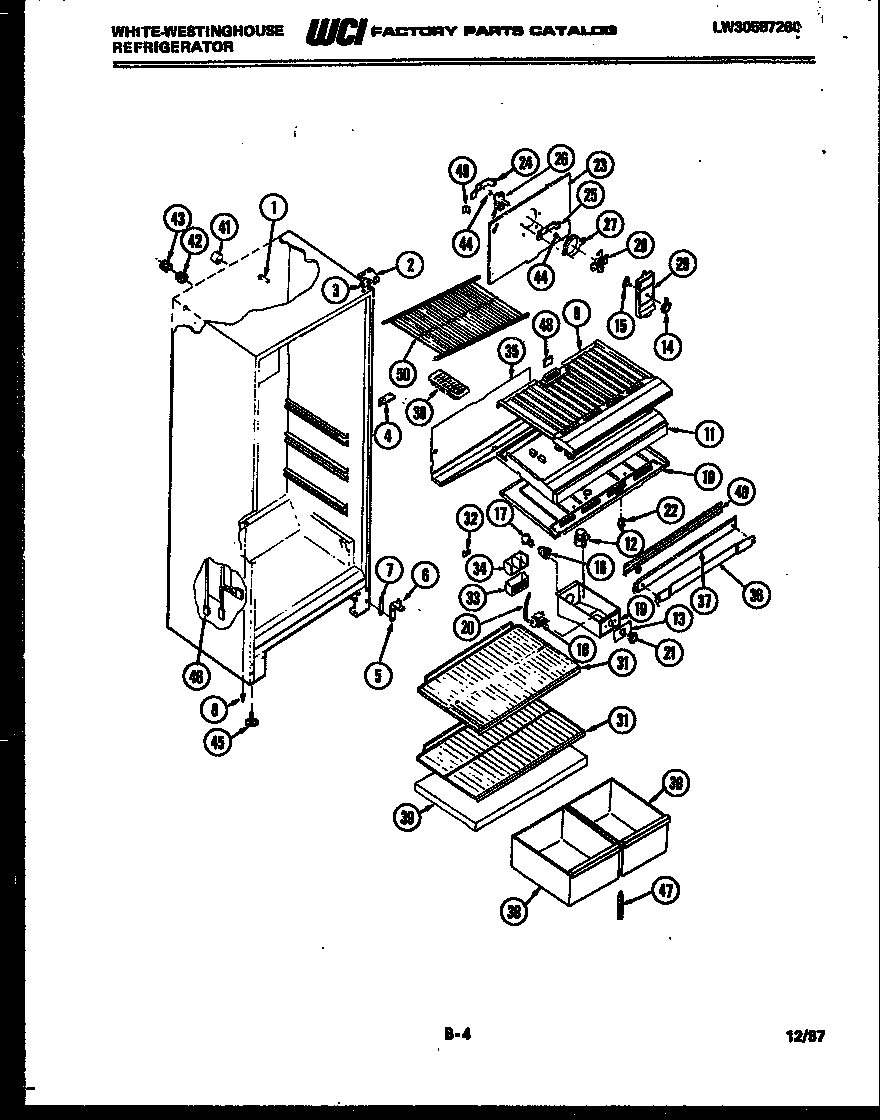

RT143GCVA 03 – CABINET PARTS

RT143GCVA 03 – CABINET PARTS

Written by

in

RT143GCVA 03 – CABINET PARTS

Products

PositionProduct
*45551WCI G166912
*45552BUTTON, PLUG, LINER (2)
1WCI G163669
2AWASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
2B241710601 Frigidaire Refrigerator Screw
2BRACKET, TOP HINGE
3WCI G183861
4BWCI G142220
4ASCREW, BRACKET MOUNTING (4)
4BRACKET, HINGE CENTER
5BRACKET, HINGE, LOWER
65303001321 Frigidaire Refrigerator Lower Hinge Pin
7SHIM, HINGE
8CLIP (4)
9BOTTOM ( FREEZER )
10TOP-REFRIGERATOR
10ASCREW (5)
11DIVIDER-COMPARTMENT
12A5304455649 Frigidaire Refrigerator Screw
12215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
13WCI G177795
14WCI G162663-15
15ANUT, DAMPER MOUNTING
15DAMPER FAN COVER
16SOCKET LIGHT
17316538904 Frigidaire Oven Lamp Light
18CONTROL-COLD
18AWCI G107080
19ASWITCH SLIDE
19WCI G176722-01
20TUBE
21KNOB
225309918806 Frigidaire Refrigerator Light Switch Door
23COVER-COIL
24WCI G185303
25WCI G185302
265300158289 Frigidaire Evaporator Fan Motor
27RING, FAN ORIFICE
27ANUT, ORIFICE (2)
285308000010 Frigidaire Refrigerator Evaporator Fan Blade
29WCI G490076-02
29ALABEL-FAN COVER
30215667501 Frigidaire Refrigerator Ice Tray Primary
31SHELF-SLIDING (2)
32CLAMP-TUBE (NON-ILLUSTRATED)
33WCI G162178
34DEFLECTOR AIR
35TROUGH-DRAIN
36CLAMP, MULLION MOUNTING
37MULLION
37AWASHER (2)
37BSPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
38WCI 3016393
39COVER-CRISPER
40WCI G187921
41TUBE, INSULATION (2)
42WCI G174734
43WCI G174733
44G187559 Frigidaire Refrigerator Bushing
45LEG-LEVELING (2)
45ANUT, ANCHOR (2)
46HARNESS, WIRING
47SUPPORT, CRISPER COVER
48PAD, FOAM (2)
49A218843801 Frigidaire Refrigerator Screw
49WCI G164571
50WCI G166862-01
