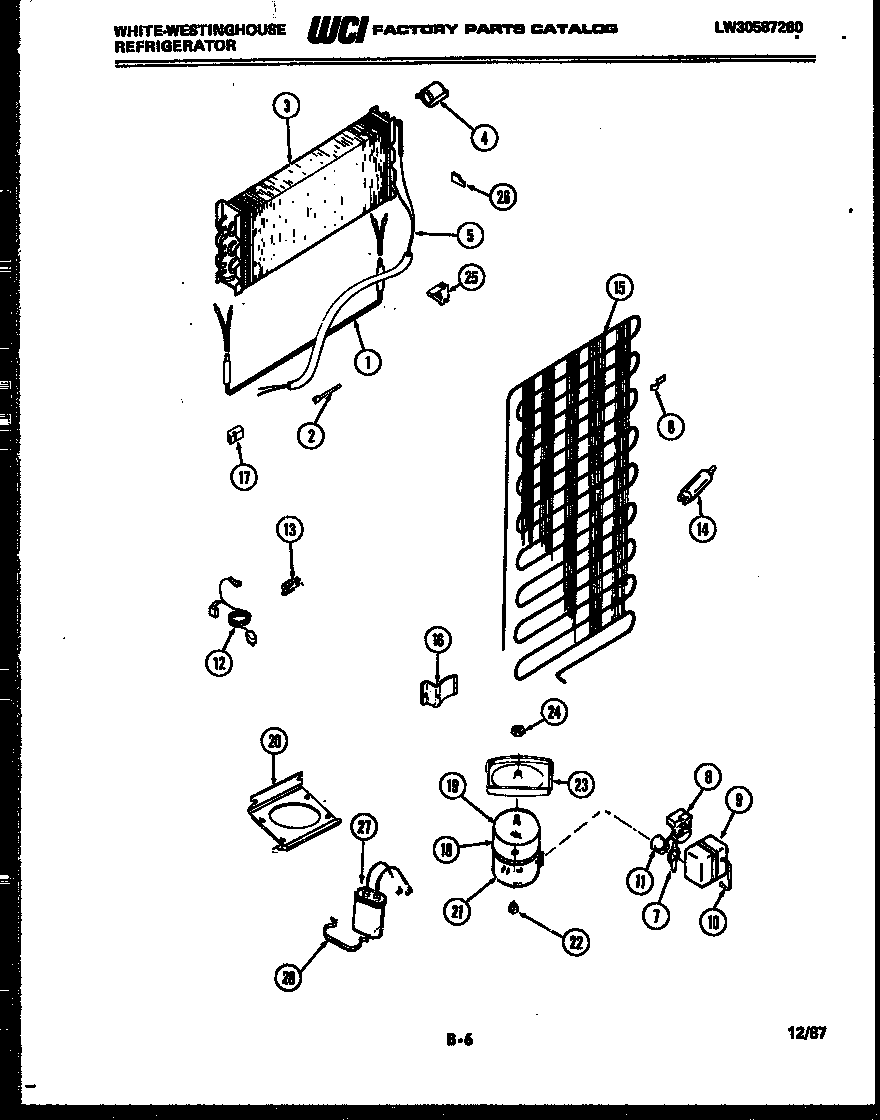

RT143GLDA 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*45569	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
1	WCI G162432-02
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3	WCI G164563
4	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5	WCI G149013
6	CLAMP-TUBE (NON-ILLUSTRATED)
7	RETAINER, OVERLOAD
8	WCI G182225-18
10	5303006412 Frigidaire Refrigerator Cover Mounting Strap
11	WCI G188877
12	CORD, SERVICE
13	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
14	5303305677 Frigidaire Replacement Filter Dryer Filters
15	WCI G178225
16	BRACKET-CONDENSER MOUNTING (4)
17	BLOCK, LEFT SIDE
18	WASHER, COMPRESSOR MOUNTING (4)
19	CLIP, COMPRESSOR MOUNTING (4)
20	WCI G162822
21	WCI G190374
22	218513300 Frigidaire Refrigerator Compressor Mount Grommet
23	WCI G184716
24	NUT, LOCK
25	BLOCK, EVAPORATOR, RH
26	PLUG, EVAPORATOR INSULATION BLOCK, R H
27	WCI G188885-01
28	STRAP-CAPACITOR
