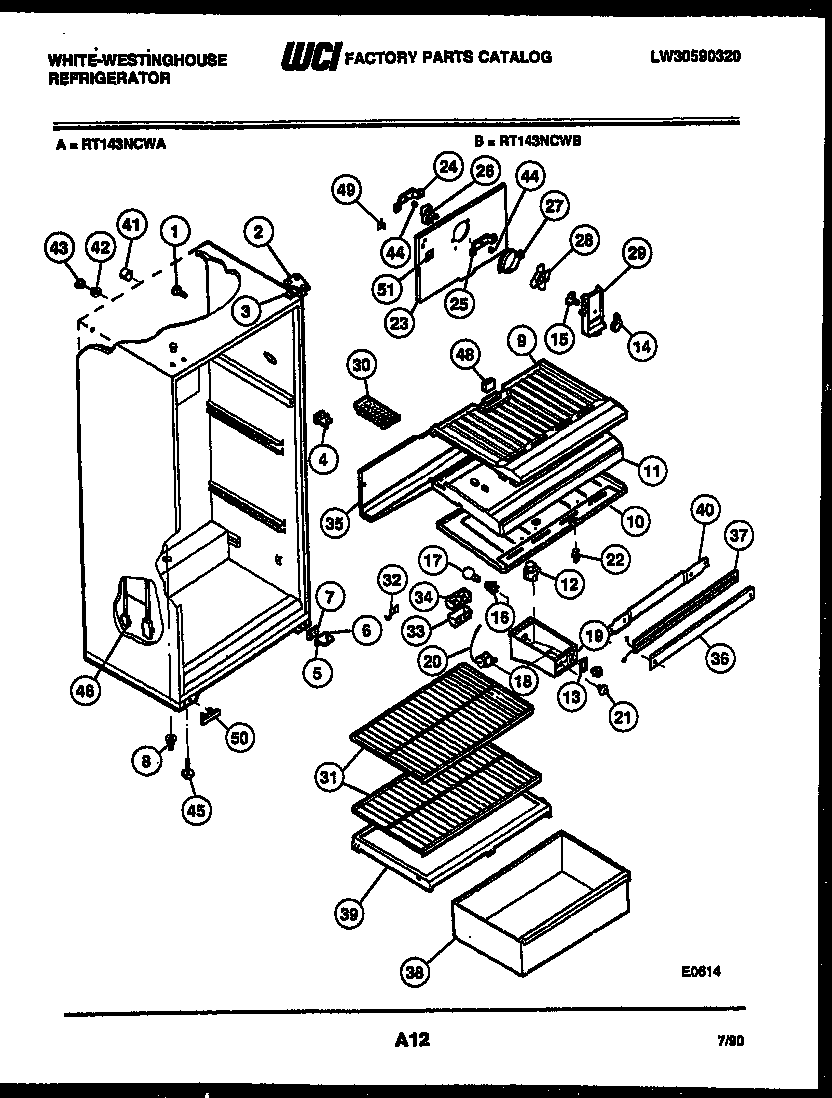

RT143NCDB 03 – CABINET PARTSadmin2025-04-26T08:44:06+00:00RT143NCDB 03 – CABINET PARTS
Products
| Position | Product |
|---|
| *34310 | PLUG, BUTTON, CABINET LINER (NI) |
| 1 | SUPPORT-COIL COVER |
| 2 | BRACKET-UPPER HINGE |
| 2B | WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET) |
| 3 | WCI G183861 |
| 4B | WCI 5308000184 |
| 4 | BRACKET-CTR HINGE |
| 4A | SCREW, BRACKET MOUNTING (4) |
| 5A | TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED) |
| 5 | HINGE - LOWER DOOR |
| 5B | 241710601 Frigidaire Refrigerator Screw |
| 6 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 7 | SHIM-LOWER HINGE |
| 8 | TUBE - DRAIN |
| 9 | WCI 5308000748 |
| 10A | SCREW (5) |
| 10 | TOP PANEL-REFR, W/ SNAP BUSHING |
| 11 | WCI 5308000759 |
| 12 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 13 | WCI G000180105 |
| 14 | KNOB-DAMPER CONTROL |
| 15A | NUT, DAMPER MOUNTING |
| 15 | DAMPER-FAN COVER |
| 16 | SOCKET-LIGHT/LAMP |
| 17 | 316538904 Frigidaire Oven Lamp Light |
| 18 | WCI 5308015762 |
| 19 | BOX-CONTROL |
| 19B | PLUG BTN (NON-ILLUSTRATED) |
| 19A | SWITCH-ENERGY SAVER, SLIDE TYPE |
| 20 | TUBE |
| 21 | WCI 5308010011 |
| 22 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 23 | WCI 3001358 |
| 24 | BRACKET-MOTOR MTG, REAR |
| 25 | WCI 5303001226 |
| 26 | 5300158289 Frigidaire Evaporator Fan Motor |
| 27 | RING-FAN ORIFICE |
| 27A | NUT, ORIFICE (2) |
| 28 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 29 | COVER-FAN |
| 29A | LABEL-FAN COVER (NON-ILLUSTRATED) |
| 30 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 31 | WCI 5317217303 |
| 32 | CLAMP-TUBE |
| 33 | COVER - AIR DEFLECTOR |
| 34 | DEFLECTOR-AIR |
| 35 | TROUGH-DRAIN |
| 36 | WCI 5308003604 |
| 37A | WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED) |
| 37B | WCI 3001370 |
| 37 | WCI 5303200465 |
| 38 | WCI 5303211360 |
| 39 | WCI 5308000749 |
| 40 | WCI 5308017408 |
| 41 | TUBE-RUBBER |
| 42 | WCI G174734 |
| 43 | WCI G174733 |
| 44 | G187559 Frigidaire Refrigerator Bushing |
| 45 | SCREW-LEVELING (4) |
| 45A | NUT, ANCHOR (2) |
| 46 | HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED) |
| 48 | PAD, FOAM (2) |
| 49A | 218843801 Frigidaire Refrigerator Screw |
| 49 | WCI G164571 |
| 50 | COVER-HOLE, LOWER HINGE |
| 51 | PLUG-DECORATIVE, ICE MAKER HOLE |
