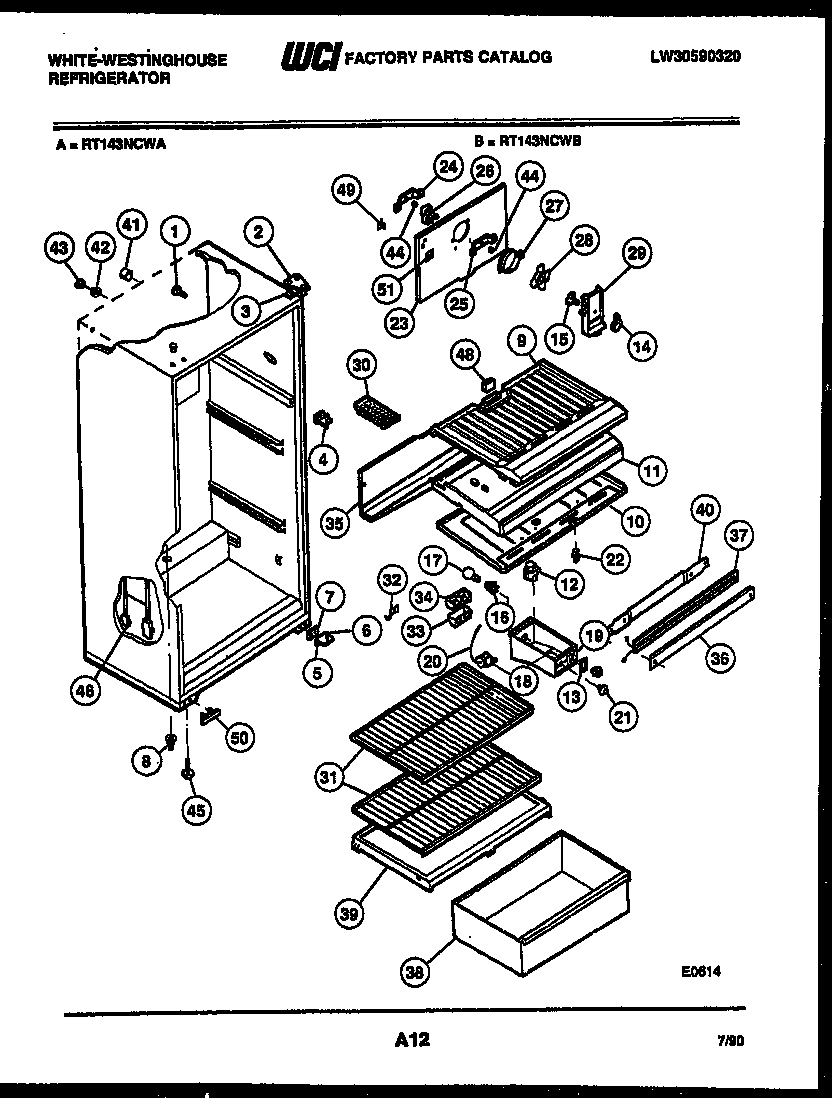

RT143NCWA 03 – CABINET PARTS

RT143NCWA 03 – CABINET PARTS

Written by

in

RT143NCWA 03 – CABINET PARTS

Products

PositionProduct
*34310PLUG, BUTTON, CABINET LINER (NI)
1SUPPORT-COIL COVER
2BRACKET-UPPER HINGE
2BWASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
3WCI G183861
4BWCI 5308000184
4BRACKET-CTR HINGE
4ASCREW, BRACKET MOUNTING (4)
5ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
5HINGE – LOWER DOOR
5B241710601 Frigidaire Refrigerator Screw
65303001321 Frigidaire Refrigerator Lower Hinge Pin
7SHIM-LOWER HINGE
8TUBE – DRAIN
9WCI 5308000748
10ASCREW (5)
10TOP PANEL-REFR, W/ SNAP BUSHING
11WCI 5308000759
12215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
13WCI G000180105
14KNOB-DAMPER CONTROL
15ANUT, DAMPER MOUNTING
15DAMPER-FAN COVER
16SOCKET-LIGHT/LAMP
17316538904 Frigidaire Oven Lamp Light
18WCI 5308015762
19BOX-CONTROL
19BPLUG BTN (NON-ILLUSTRATED)
19ASWITCH-ENERGY SAVER, SLIDE TYPE
20TUBE
21WCI 5308010011
225309918806 Frigidaire Refrigerator Light Switch Door
23WCI 3001358
24BRACKET-MOTOR MTG, REAR
25WCI 5303001226
265300158289 Frigidaire Evaporator Fan Motor
27RING-FAN ORIFICE
27ANUT, ORIFICE (2)
285308000010 Frigidaire Refrigerator Evaporator Fan Blade
29COVER-FAN
29ALABEL-FAN COVER (NON-ILLUSTRATED)
30215667501 Frigidaire Refrigerator Ice Tray Primary
31WCI 5317217303
32CLAMP-TUBE
33COVER – AIR DEFLECTOR
34DEFLECTOR-AIR
35TROUGH-DRAIN
36WCI 5308003604
37AWASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
37BWCI 3001370
37WCI 5303200465
38WCI 5303211360
39WCI 5308000749
40WCI 5308017408
41TUBE-RUBBER
42WCI G174734
43WCI G174733
44G187559 Frigidaire Refrigerator Bushing
45SCREW-LEVELING (4)
45ANUT, ANCHOR (2)
46HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
48PAD, FOAM (2)
49A218843801 Frigidaire Refrigerator Screw
49WCI G164571
50COVER-HOLE, LOWER HINGE
51PLUG-DECORATIVE, ICE MAKER HOLE
