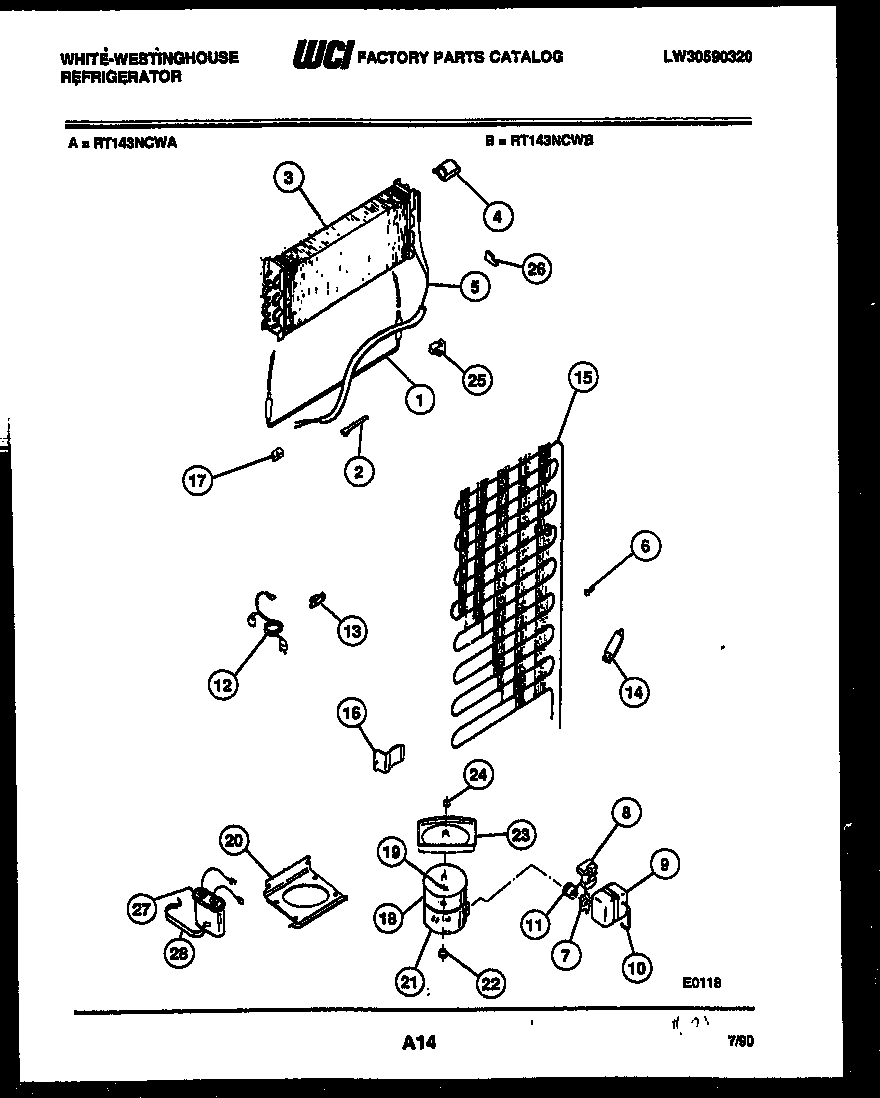

RT143NCWA 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

RT143NCWA 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RT143NCWA 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 5303001362
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3EVAPORATOR
45303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5HEAT EXCHANGER, SUCTION LINE
6CLAMP-TUBE (NON-ILLUSTRATED)
7WCI 3202891
8RELAY-TL
105303006412 Frigidaire Refrigerator Cover Mounting Strap
11WCI 3202863
11WCI 5303001713
12WCI 53162549-01
135303001199 Frigidaire Refrigerator Wiring Harness Clamp
145303305677 Frigidaire Replacement Filter Dryer Filters
15WCI 5303001341
16BRACKET-MTG (4)
17INSULATION BLOCK, LH
18WASHER-COMPR MTG
19CLIP – COMPRESSOR MTG
20WCI 5308009596
21COMPRESSOR W/ ELEC
22218513300 Frigidaire Refrigerator Compressor Mount Grommet
23PAN-DEFROST DRAIN, ORIG/SVCE COMPR
24NUT, LOCK
25INSULATION BLOCK, RH
26PLUG, EVAPORATOR INSULATION BLOCK, R H
27WCI 5303018427
28STRAP CAPACITOR
28D5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
28AHOT TUBE REPAIR KIT-SERVICE
28BWCI 5303001197
28CWIRING HARNESS, COMPRESSOR,
