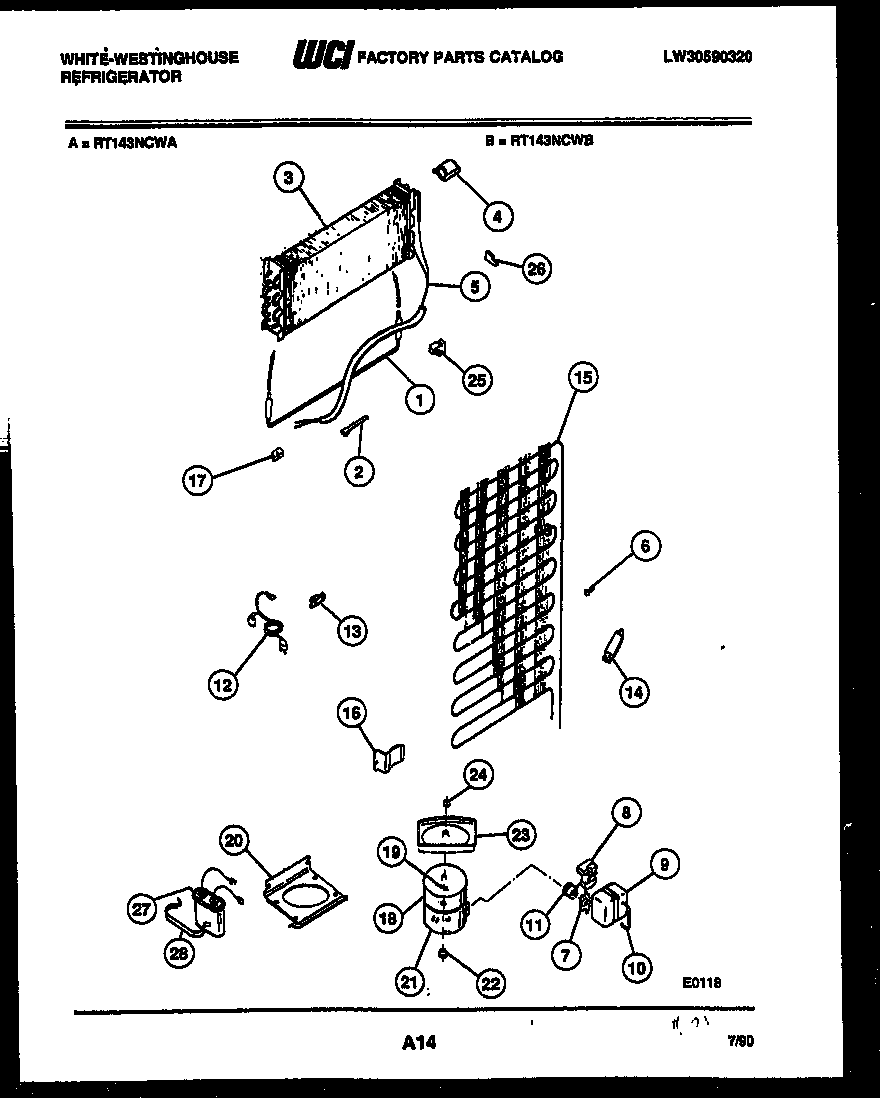

RT143NCWB 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI 5303001362
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3	EVAPORATOR
4	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5	HEAT EXCHANGER, SUCTION LINE
6	CLAMP-TUBE (NON-ILLUSTRATED)
7	WCI 3202891
8	RELAY-TL
10	5303006412 Frigidaire Refrigerator Cover Mounting Strap
11	WCI 3202863
11	WCI 5303001713
12	WCI 53162549-01
13	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
14	5303305677 Frigidaire Replacement Filter Dryer Filters
15	WCI 5303001341
16	BRACKET-MTG (4)
17	INSULATION BLOCK, LH
18	WASHER-COMPR MTG
19	CLIP - COMPRESSOR MTG
20	WCI 5308009596
21	COMPRESSOR W/ ELEC
22	218513300 Frigidaire Refrigerator Compressor Mount Grommet
23	PAN-DEFROST-ORIG COMPRESSOR
24	NUT, LOCK
25	INSULATION BLOCK, RH
26	PLUG, EVAPORATOR INSULATION BLOCK, R H
27	WCI 5303018427
28C	WIRING HARNESS, COMPRESSOR,
28	STRAP CAPACITOR
28D	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
28A	HOT TUBE REPAIR KIT-SERVICE
28B	WCI 5303001197
