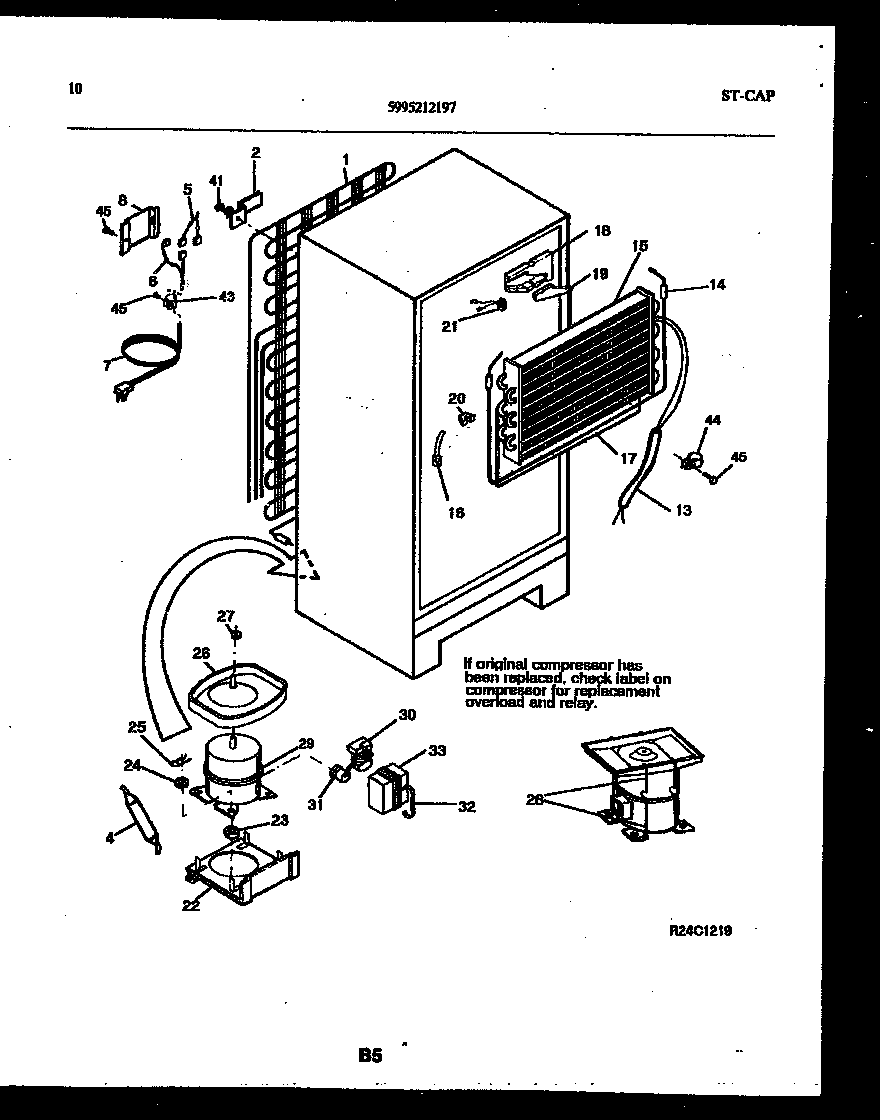

RT143NCWC 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*54806	HOT TUBE REPAIR KIT-SERVICE
1	WCI 5303001341
2A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2	BRACKET-MTG (4)
3	WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
6	WIRING HARNESS, COMPRESSOR,
7	CORD-ELECTRIC POWER
8	WCI 5303001197
13	HEAT EXCHANGER, SUCTION LINE
14	WCI 5303001362
15	WCI 5303272044
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	INSULATION BLOCK, RH
19	INSULATION PLUG, RH
20	INSULATION BLOCK, LH
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 5308009596
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP - COMPRESSOR MTG
26A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26	PAN-DEFROST DRAIN, ORIG/SVCE COMPR
27	Nut,lock `1/4-20 ,drain pan mtg
28	PAN RETAINER KIT, SERVICE
29	COMPRESSOR W/ ELEC
29A	CAPACITOR
30	RELAY-TL
31	WCI 5303274700
32	5303006412 Frigidaire Refrigerator Cover Mounting Strap
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	5308000133 Frigidaire Refrigerator Clamp
45	5304455651 Frigidaire Refrigerator Screw
