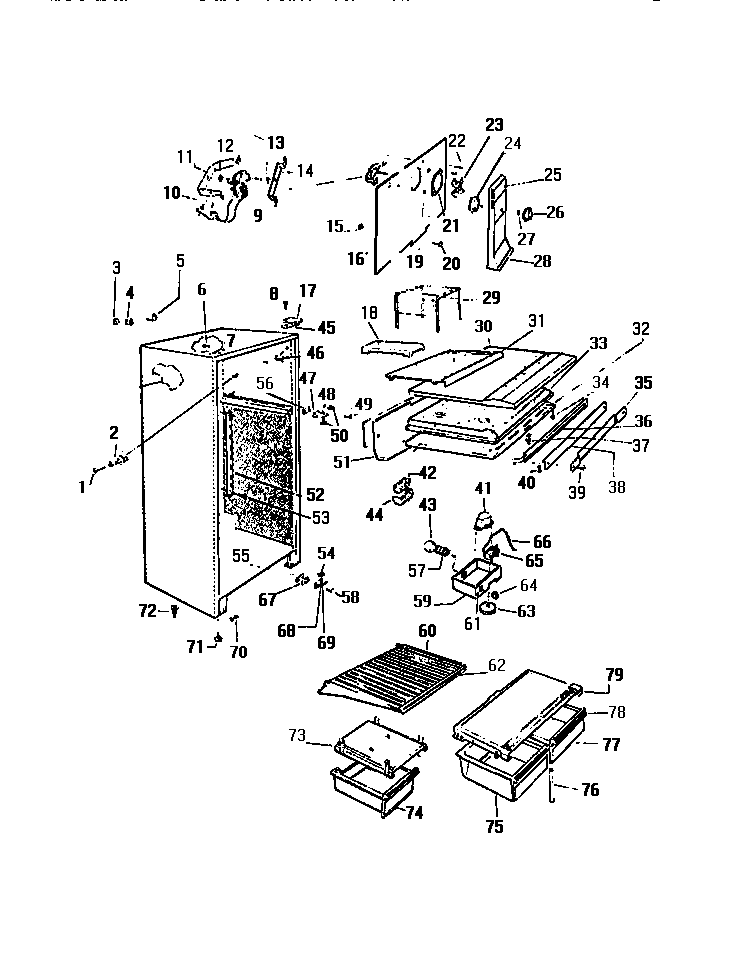

RT146GCF2 03 – CABINET, SHELVES, DIVIDLER, FAN ASS

Products

Position	Product
*90968	TRIM, COFFEE
*90964	WCI G174747-10
1	SCREW - SUPPORT TO LINER (8)
2	SUPPORT, SHELF (8)
3	WCI G174733
4	WCI G174734
5	WCI G58642
6	WCI G163669
7	WCI G174747--01
9	5300158289 Frigidaire Evaporator Fan Motor
10	WCI G164571
11	BRACKET, REAR MOTOR MOUNTING
13	G187559 Frigidaire Refrigerator Bushing
14	BRACKET, FRONT MOTOR MOUNTING
15	NUT, ORIFICE (2)
16	COVER-COIL
17	HINGE, RT SD/ L.SD
18	ICE TRAY
19	WCI G162701
20	WCI Q301267
21	RING, FAN ORIFICE
22	WCI Q401601
23	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
24	DAMPER FAN COVER
25	WCI G180184
26	WCI G162663-13
27	NUT, DAMPER MOUNTING
28	WCI G490076-02
29	5303282284 Frigidaire Wire Shelf
30	BOTTOM ( FREEZER )
31	WCI G177415-01
32	TOP-REFRIGERATOR
33	DIVIDER-COMPARTMENT
34	SCREW (5)
35	CLAMP, MULLION MOUNTING
36	HTR, CENTER RAIL
37	5309918806 Frigidaire Refrigerator Light Switch Door
38	WCI G174520-10
39	WCI 1213298
40A	WCI G166817
40	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
41	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
42	WCI G162178
43	WCI Q63749
44	DEFLECTOR AIR
45	SHIM
46	TRIM (4)
47	BRACKET, HINGE CENTER
48	WCI G142220
49	SCREW, MULLION MOUNTING (2)
50	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
51	TROUGH-DRAIN
52	CHANNEL, SHELF (2)
53	5304455852 Frigidaire Refrigerator Screw
54	WCI G103903
55	TAPPING, PLATE (2)
56	SHIM, HINGE
57	SOCKET LIGHT
58	241710601 Frigidaire Refrigerator Screw
59	WCI G176722-01
60	WCI G180195-01
61	WCI G180197
62	TRIM ( CUT TO SIZE )
63	KNOB
64	SWITCH
65	CONTROL
66	TUBE
67	SHIM, HINGE
68	5303001321 Frigidaire Refrigerator Lower Hinge Pin
69	BRACKET, HINGE, LOWER
70	WCI G166912
71A	WCI G164702
71	WCI G166739
72	CLIP (4)
73	WCI G177471-02
74	WCI G177470-01
75	WCI G177255-01
76	SUPPORT, CRISPER COVER
77	PAN, CRISPER
78	WCI G177343-03
79	COVER
