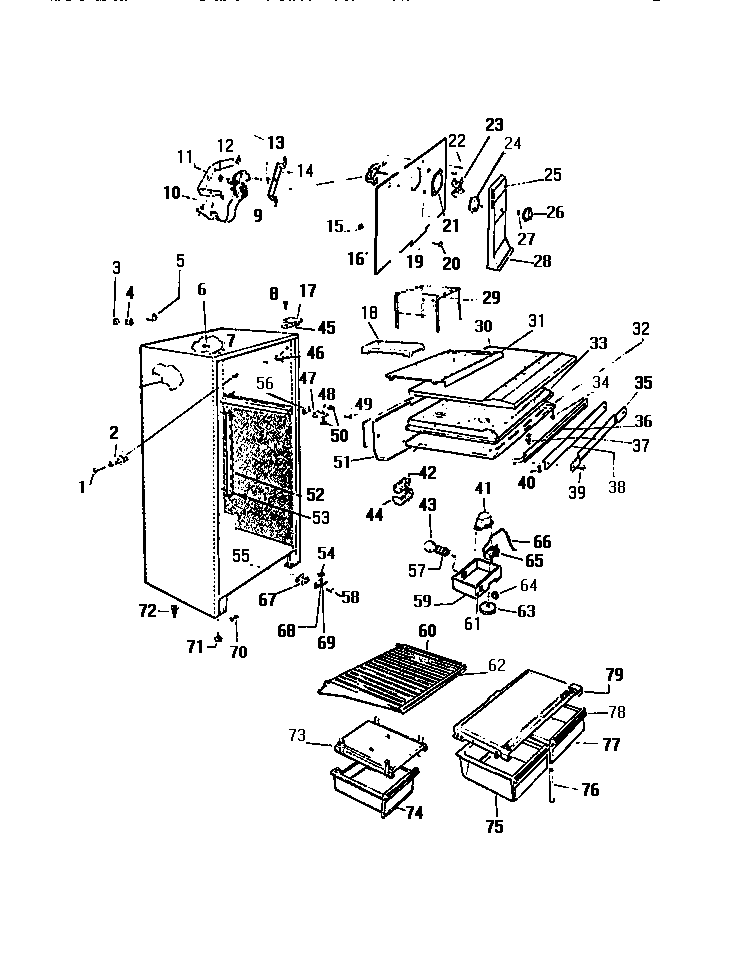

RT146GCH2 03 – CABINET, SHELVES, DIVIDLER, FAN ASS

Products

PositionProduct
*90967TRIM, WHEAT
*90963WCI G174747-09
1SCREW – SUPPORT TO LINER (8)
2SUPPORT, SHELF (8)
3WCI G174733
4WCI G174734
5WCI G58642
6WCI G163669
7WCI G174747–01
95300158289 Frigidaire Evaporator Fan Motor
10WCI G164571
11BRACKET, REAR MOTOR MOUNTING
13G187559 Frigidaire Refrigerator Bushing
14BRACKET, FRONT MOTOR MOUNTING
15NUT, ORIFICE (2)
16COVER-COIL
17HINGE, RT SD/ L.SD
18ICE TRAY
19WCI G162701
20WCI Q301267
21RING, FAN ORIFICE
22WCI Q401601
235308000010 Frigidaire Refrigerator Evaporator Fan Blade
24DAMPER FAN COVER
25WCI G180184
26WCI G162663-13
27NUT, DAMPER MOUNTING
28WCI G490076-02
295303282284 Frigidaire Wire Shelf
30BOTTOM ( FREEZER )
31WCI G177415-01
32TOP-REFRIGERATOR
33DIVIDER-COMPARTMENT
34SCREW (5)
35CLAMP, MULLION MOUNTING
36HTR, CENTER RAIL
375309918806 Frigidaire Refrigerator Light Switch Door
38WCI G174520-09
39WCI 1213298
40AWCI G166817
40SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
41215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
42WCI G162178
43WCI Q63749
44DEFLECTOR AIR
45SHIM
46TRIM (4)
47BRACKET, HINGE CENTER
48WCI G142220
49SCREW, MULLION MOUNTING (2)
50WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
51TROUGH-DRAIN
52CHANNEL, SHELF (2)
535304455852 Frigidaire Refrigerator Screw
54WCI G103903
55TAPPING, PLATE (2)
56SHIM, HINGE
57SOCKET LIGHT
58241710601 Frigidaire Refrigerator Screw
59WCI G176722-01
60WCI G180195-01
61WCI G180197
62TRIM ( CUT TO SIZE )
63KNOB
64SWITCH
65CONTROL
66TUBE
67SHIM, HINGE
685303001321 Frigidaire Refrigerator Lower Hinge Pin
69BRACKET, HINGE, LOWER
70WCI G166912
71AWCI G164702
71WCI G166739
72CLIP (4)
73WCI G177471-02
74WCI G177470-01
75WCI G177255-01
76SUPPORT, CRISPER COVER
77PAN, CRISPER
78WCI G177343-03
79COVER
