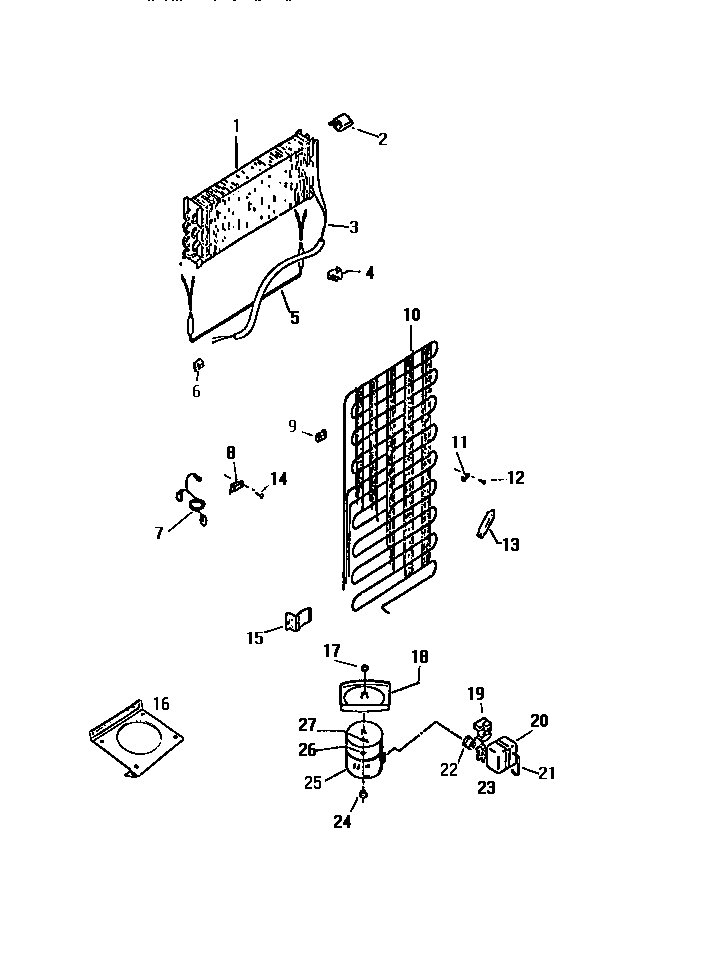

RT146GCW1 04 – COOLING SYSTEM

Products

Position	Product
1	WCI G162736
2	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
3	WCI G163389
4	WCI G163215
5	WCI G162432-02
6	BLOCK, EVAPORATOR, LH
7	CORD, SERVICE
8	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
9	WCI G165129
10	WCI G172511
11	WCI G101747
12	218843801 Frigidaire Refrigerator Screw
13A	WCI R900125
13	DRIER-REGULAR
14	WCI G171085
15	BRACKET-CONDENSER MOUNTING (4)
16	WCI G162822
17	NUT, LOCK
18	DEFROST PAN
19	WCI G150618-32
21	5303006412 Frigidaire Refrigerator Cover Mounting Strap
22	OVERLOAD
23	CLIP, OVERLOAD
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	COMPRESSOR W/ELECT.
26	WASHER, COMPRESSOR MOUNTING (4)
27	CLIP, COMPRESSOR MOUNTING (4)
