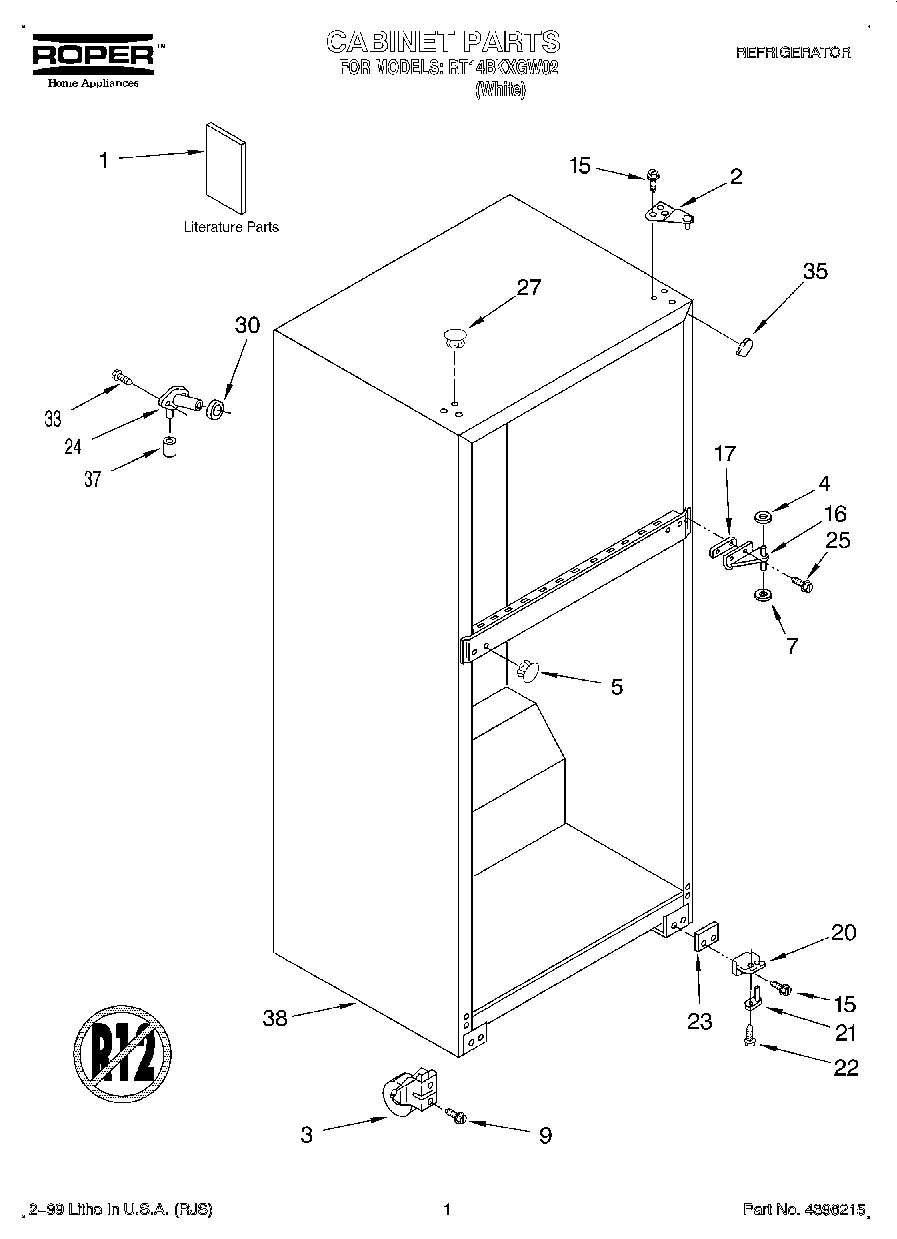

RT14BKXGW02 01 – CABINET, LITERATURE

RT14BKXGW02 01 – CABINET, LITERATURE

Written by

in

RT14BKXGW02 01 – CABINET, LITERATURE

Products

PositionProduct
WPL LIT2196756
WPL LIT2192185
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3Roller-Front
4WP487802 Whirlpool Refrigerator Washer
5Hole Plug (4) (White)
7WP487576 Whirlpool Washer
9Screw
15WP489497 Whirlpool Screw
16WP2166037 Whirlpool Refrigerator Door Hinge
172166043 Whirlpool Refrigerator Shim
20WP2325482 Whirlpool Bottom Hinge
21Hinge-Pin Bott.
22Screw 10-32 x 5/16
23WP2201567 Whirlpool Hinge Shim
24WP2196157 Whirlpool Fill Tube
25WP999367 Whirlpool Refrigerator Screw
27WP2151652 Whirlpool Refrigerator Button Plug
30WP1106508 Whirlpool Refrigerator Gasket
35W10859322 Whirlpool Refrigerator Filler
37WP487996 Whirlpool Refrigerator Cap Tube
