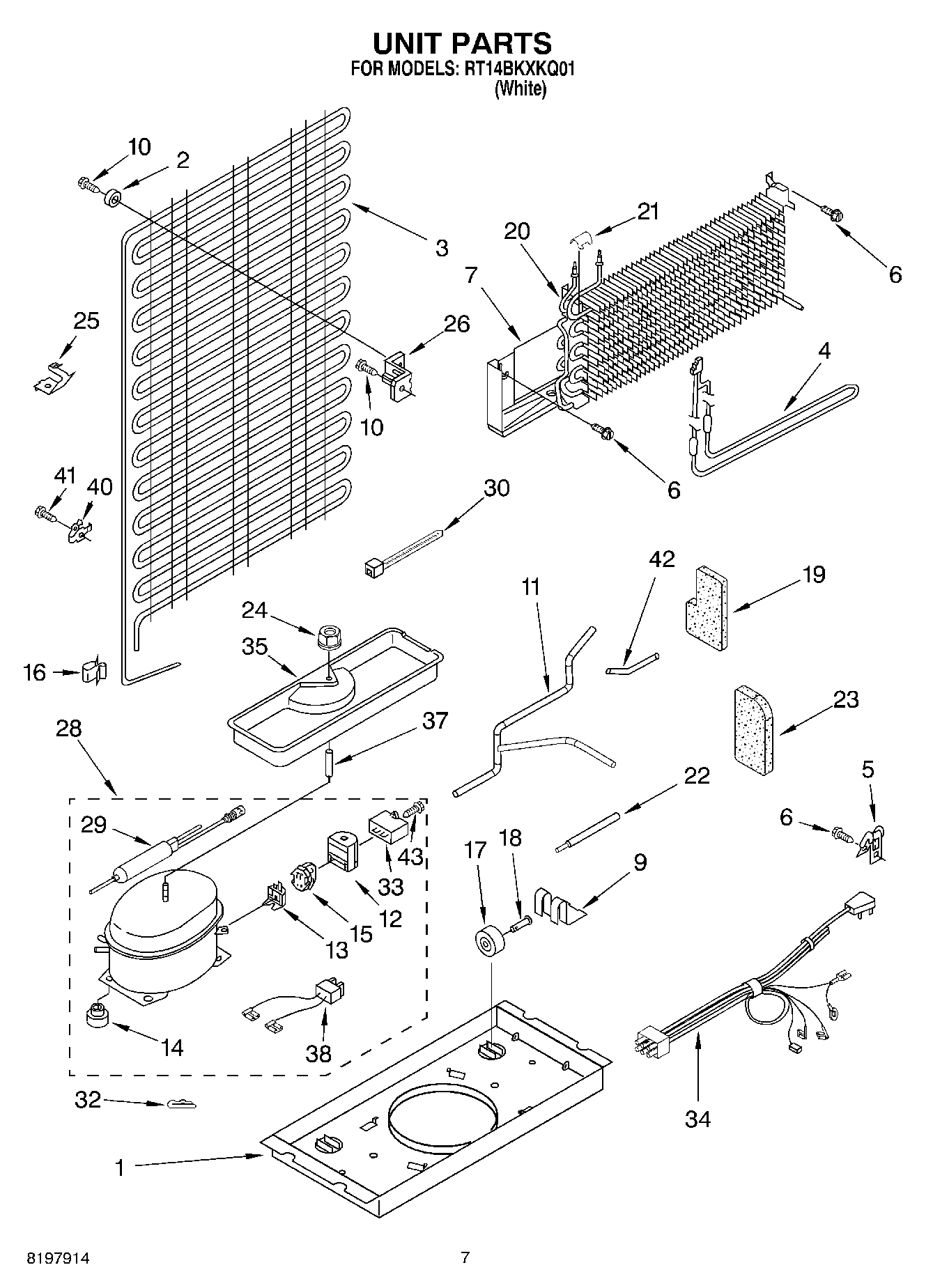

RT14BKXKQ01 04 – UNIT

RT14BKXKQ01 04 – UNIT

Written by

in

RT14BKXKQ01 04 – UNIT

Products

Position	Product
1	WPW10222451 Whirlpool Refrigerator Support
2	Bumper
3	WP2252730 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	549193 Whirlpool Refrigerator Power Clamp
6	WP489442 Whirlpool Refrigerator Screw
7	Heat Shield
9	WP2174706 Whirlpool Refrigerator Pin Hitch
10	WP488163 Whirlpool Refrigerator Screw
11	Tube, Discharge
12	WP2162358 Whirlpool Refrigerator Terminal Cover
12	2217635 Whirlpool Term Cover
13	4387913 Whirlpool Refrigerator Primary Overload Relay
13	2183408 Whirlpool Refrigerator Overload
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	WP2163786 Whirlpool Refrigerator Grommet
15	WP10097204 Whirlpool Start Relay
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263919 Whirlpool Refrigerator Evaporator
21	9791833 Whirlpool Refrigerator Clip
22	W11661102 Whirlpool Tube
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	Bracket, Condenser
28	W10309988 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	Installation Kit
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	Clip, Compressor
33	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	WP4387764 Whirlpool Run Capacitor
34	Wire Assy. Unit
35	Tray, Evaporator
37	Spacer
38	WP2172890 Whirlpool Refrigerator Wire
40	Clip, Tube
41	WP965173 Whirlpool Dishwasher Screw
42	Tube Couple, Heat Exchanger
43	978027 Whirlpool Refrigerator Primary Valve
43	876764 Whirlpool Refrigerator Primary Valve
43	W11693756 Whirlpool Screw Assembly
43	978030 Whirlpool Refrigerator Valve
43	WP978025 Whirlpool Refrigerator Valve
43	VALVE, ACCESS (1/2“)
43	VALVE, ACCESS (5/8“)
43	978026 Whirlpool Refrigerator Primary Valve
