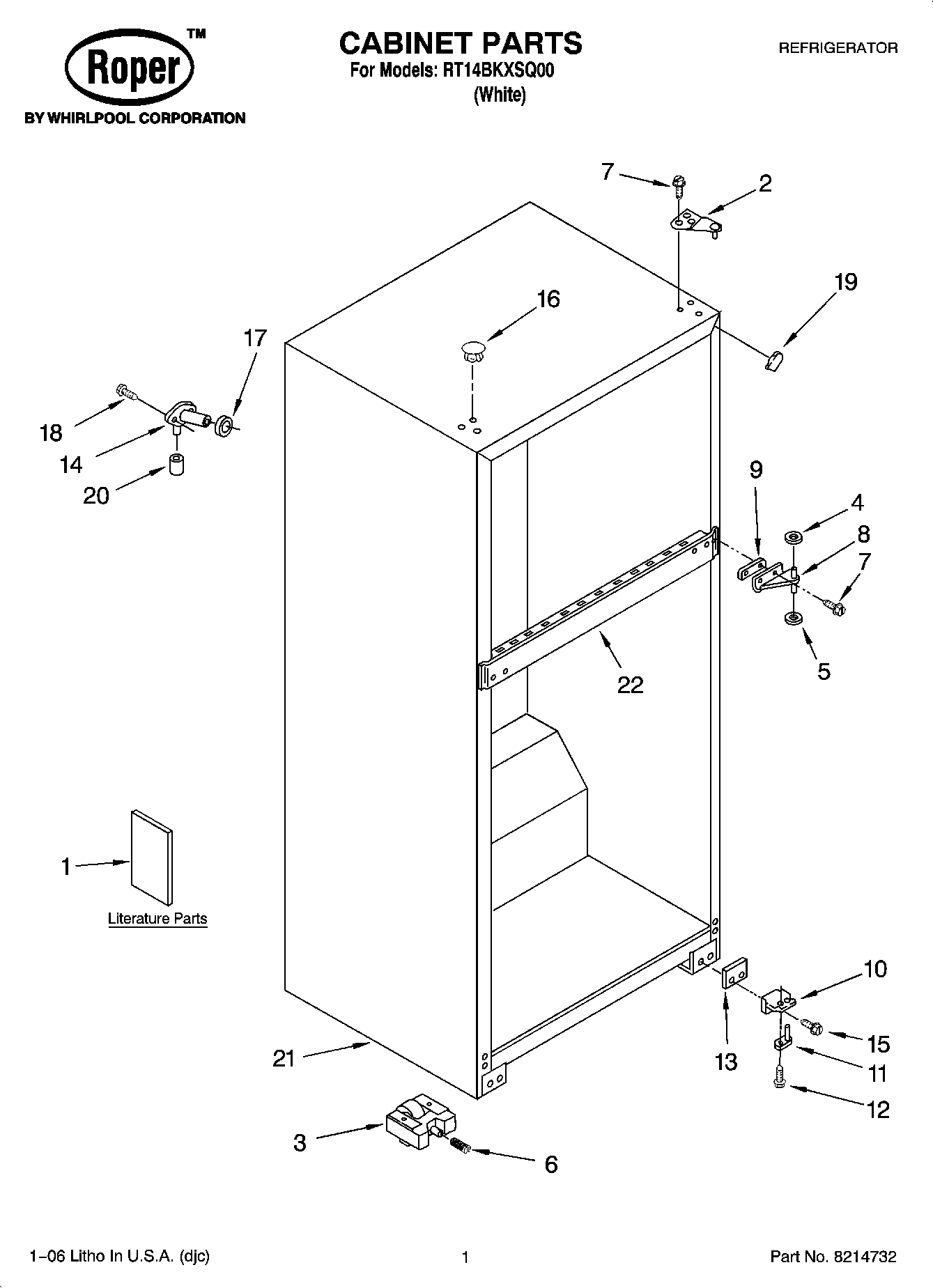

RT14BKXSQ00 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Energy Label
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	2324094 Whirlpool Refrigerator Cabinet Roller
4	WP487802 Whirlpool Refrigerator Washer
5	WP487576 Whirlpool Washer
6	2222100 Whirlpool Refrigerator Screw
8	WP2166037 Whirlpool Refrigerator Door Hinge
9	2166043 Whirlpool Refrigerator Shim
10	WP2325482 Whirlpool Bottom Hinge
11	Hinge-Pin Bott.
12	WP3428970 Whirlpool Refrigerator Screw
13	WP2201567 Whirlpool Hinge Shim
14	WP2196157 Whirlpool Fill Tube
15	WP489497 Whirlpool Screw
16	WP2151652 Whirlpool Refrigerator Button Plug
17	WP1106508 Whirlpool Refrigerator Gasket
18	WP488729 Whirlpool Refrigerator Door Screw
19	W10859322 Whirlpool Refrigerator Filler
20	WP487996 Whirlpool Refrigerator Cap Tube
21	Cabinet, (Not A Serviceable Part)
22	Rail, Center (Not Serviced)
