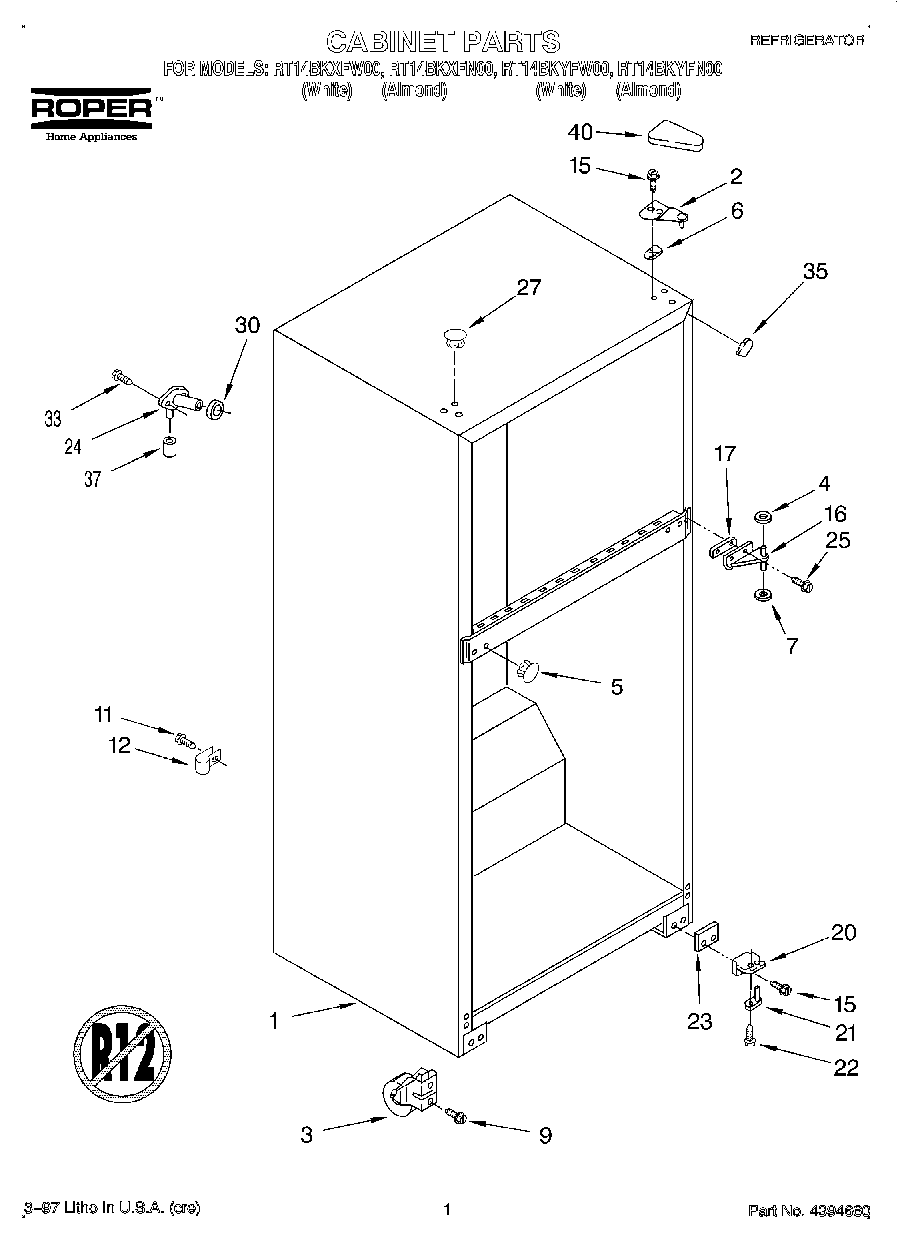

RT14BKYFW00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP2189412 Whirlpool Refrigerator Door Hinge
3	Roller-Front
4	WP487576 Whirlpool Washer
5	Hole Plug (4) (White)
6	Shim, Hinge Top
7	WP487802 Whirlpool Refrigerator Washer
9	Screw
11	WP489464 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
16	WP2166037 Whirlpool Refrigerator Door Hinge
17	2166043 Whirlpool Refrigerator Shim
20	WP2325482 Whirlpool Bottom Hinge
21	Hinge-Pin Bott.
22	Screw 10-32 x 5/16
23	WP2201567 Whirlpool Hinge Shim
24	WP2196157 Whirlpool Fill Tube
25	WP999367 Whirlpool Refrigerator Screw
27	Hole Plug (6) (Almond)
27	WP2151652 Whirlpool Refrigerator Button Plug
30	WP1106508 Whirlpool Refrigerator Gasket
35	W10859322 Whirlpool Refrigerator Filler
35	Corner Filler (Almond)
37	WP487996 Whirlpool Refrigerator Cap Tube
40	Cover, Hinge (Almond)
40	WP2213360 Whirlpool Refrigerator Cover
