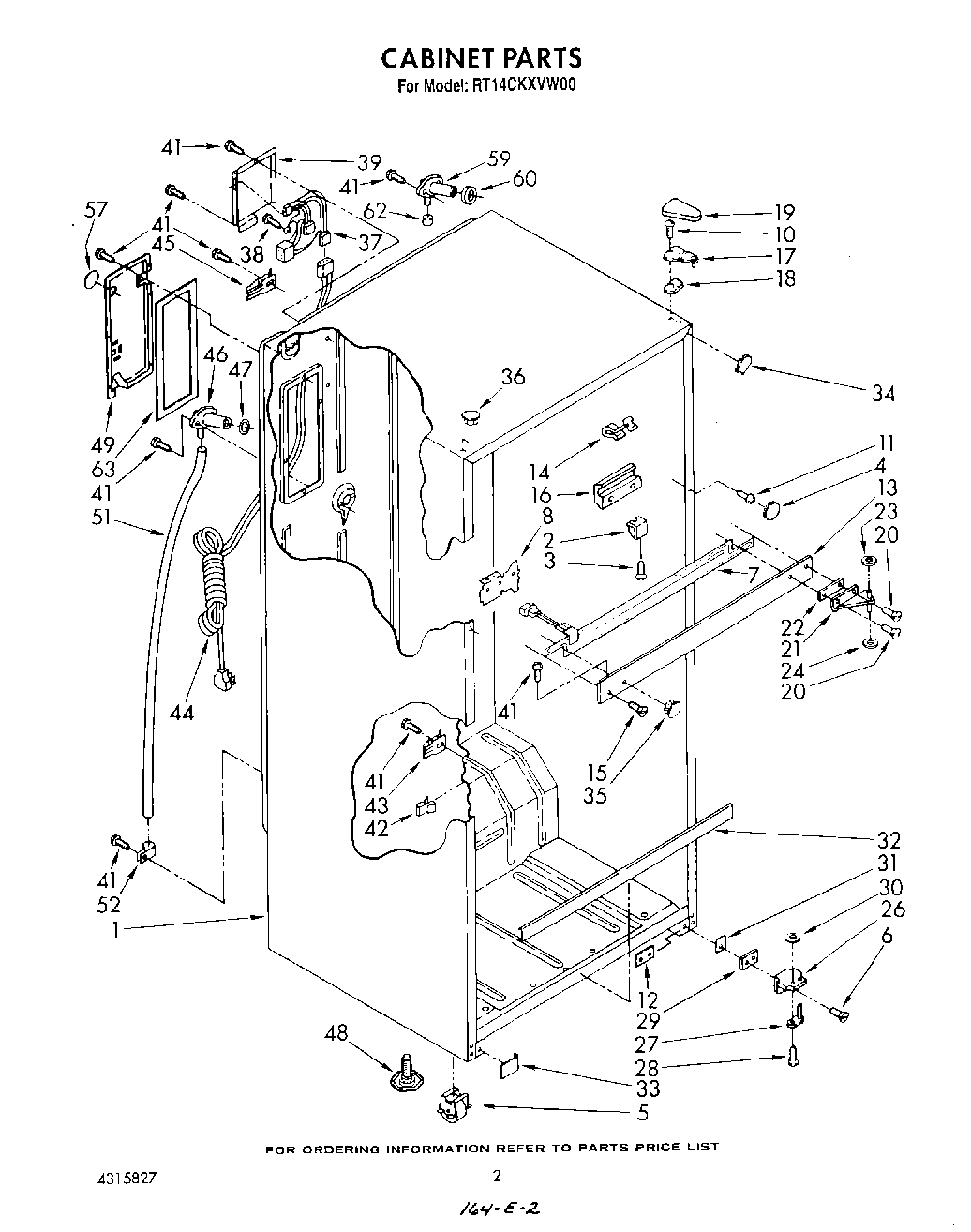

RT14CKXVG00 02 – CABINET

RT14CKXVG00 02 – CABINET

Written by

in

RT14CKXVG00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Spacer (2)
3	WP489174 Whirlpool Refrigerator Screw
4	Hole Plug (2) (Almond)
4	Hole Plug (2) (White)
4	Hole Plug (2) (Golden Harvest)
5	Roller, Front & Rear (4)
7	Heater, Mullion
8	Center Rail, Bracket (2)
10	WP999367 Whirlpool Refrigerator Screw
11	Screw (2)
12	WPL 944813
13	Center Rail (White)
13	Center Rail (Golden Harvest)
13	Center Rail (Almond)
14	Breaker, Trim Clip
15	Screw
16	Center, Rail Shim (2)
17	Shim, Hinge Top
18	Shim, Hinge
19	Hinge Cover (Golden Harvest)
19	1119787 Whirlpool Refrigerator Hinge Cover
20	Screw
20	Screw (Repair)
21	Hinge, Center
22	Shim, Hinge Center
23	WP487802 Whirlpool Refrigerator Washer
24	WP488296 Whirlpool Washer Refrigerator
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (White)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Almond)
32	Cover, Deck Rail (Golden Harvest)
33	WPL 944831
33	WPL 944833
33	WPL 943552
34	WPL 1110686
34	WPL 1110684
34	WPL 1110685
35	WPL 1119708
35	Hole Plug (White)
35	Hole Plug (Almond)
36	Hole Plug (2) (White)
36	Hole Plug (2) (Almond)
36	Hole Plug (2) (Golden Harvest)
37	WPL 942844
38	WP250830 Whirlpool Refrigerator Screw
39	WPL 942845
41	WP489478 Whirlpool Refrigerator Screw
41	SCREW
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
48	Leveler (2)
49	WPL 1106511
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
57	WPL 1120224
59	WP2196157 Whirlpool Fill Tube
60	WP1106508 Whirlpool Refrigerator Gasket
62	WP487996 Whirlpool Refrigerator Cap Tube
63	WPL 1106510
