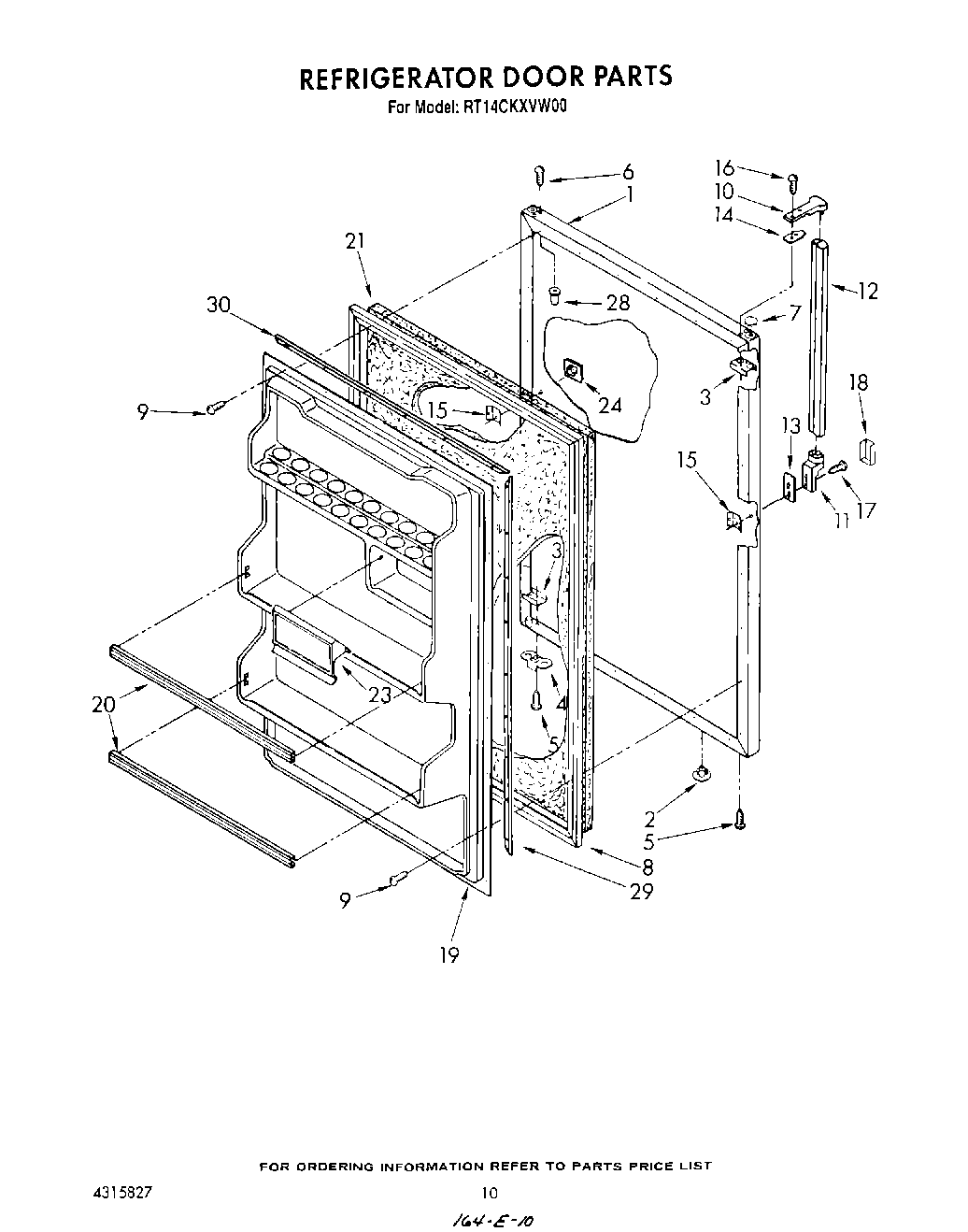

RT14CKXVG00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

RT14CKXVG00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

RT14CKXVG00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	Golden Harvest
	WPL LIT4315827
	WPL LIT1124321
	Torx Key
	350956 Whirlpool Spray Assembly
	WPL LIT1124316
	WPL LIT1118724
	Leveler (Thinner)
1	Panel, Refrigerator Door (Also Order Item 27) (Golden Harvest)
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Also Order Item 27) (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	Screw (Repair)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2188445A Whirlpool Refrigerator Door Gasket Seal
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End,
12	Handle, Center
13	Shim, Handle
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	Screw (Repair)
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Cover, End Cap
19	Interior Door Panel
20	Trim, Door Shelf (2)
23	Compartment, Butter Door
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (White)
24	Hole Plug, Handle (Almond)
28	Cap, Hinge Sleeve (2)
29	Gasket Retainer, Side (2)
30	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
30	72017 Whirlpool Appliance Touch-Up Paint White
30	Retainer, Gasket
30	Almond (Uncut)
30	WP72107 Whirlpool Touchup
30	799344 Whirlpool Refrigerator Paint
30	Golden Harvest (Uncut)
30	WP505587 Whirlpool Refrigerator Sealer
30	WP542638 Whirlpool Refrigerator Grease
30	833938 Whirlpool Refrigerator Terminal
30	Enamel, Black (1 Qt. Uncut)
30	WPL 799833
30	WPL 876029
30	876370 Whirlpool Refrigerator Insulation
30	606755 Whirlpool Refrigerator Bag
30	511873 Whirlpool Refrigerator Paint
30	212643 Whirlpool Refrigerator Permagum Sealer
30	72032 Whirlpool Touch Up Paint Black
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	TAPE, VINYL (3/4 X 108“)
30	WP503695 Whirlpool Refrigerator Sealer
