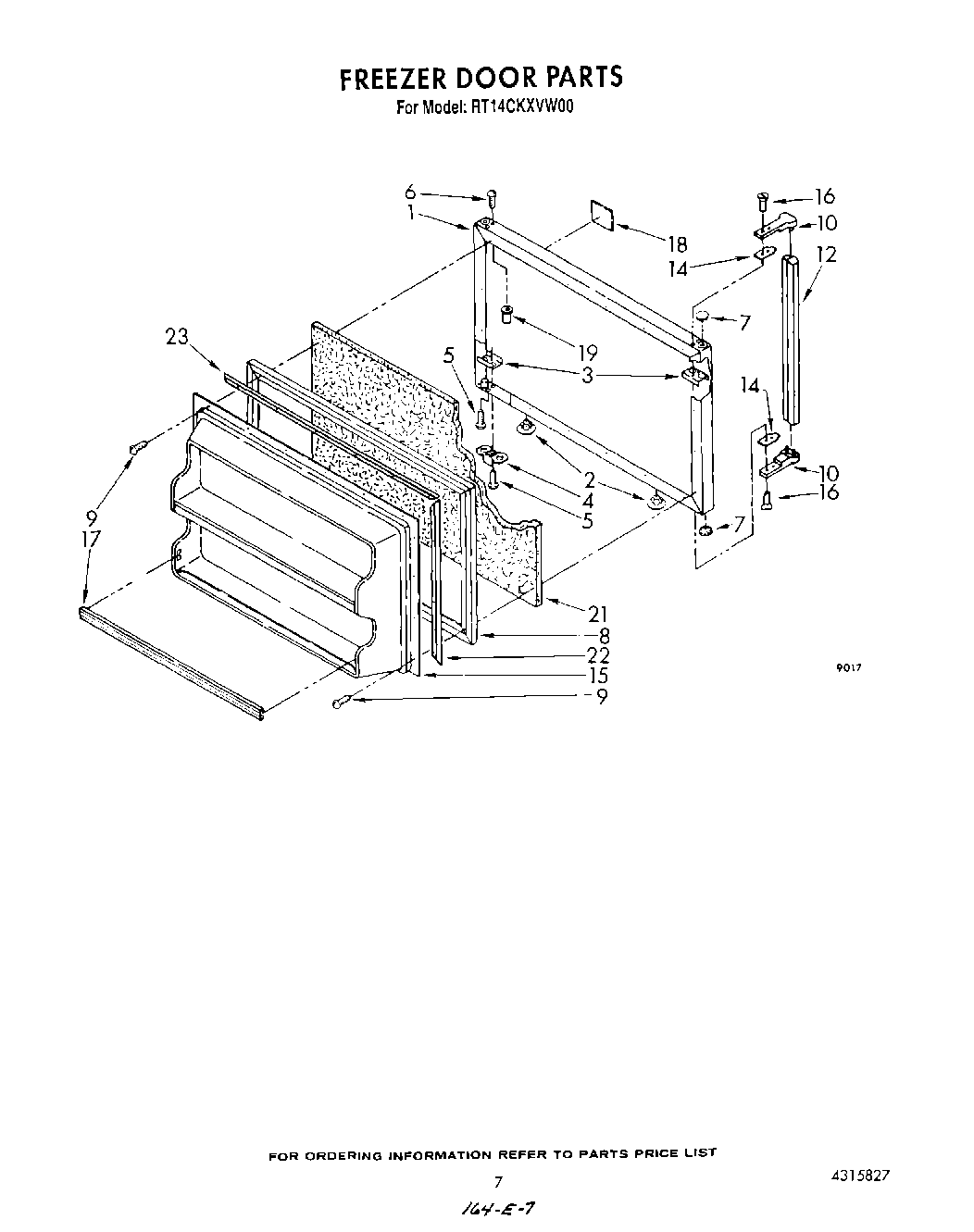

RT14CKXVL00 06 – FREEZER DOOR

RT14CKXVL00 06 – FREEZER DOOR

Written by

in

RT14CKXVL00 06 – FREEZER DOOR

Products

PositionProduct
1Panel, Freezer Door (Also Order Item 21) (White)
1Panel, Freezer Door (Also Order Item 21) (Almond)
1Panel, Freezer Door (Also Order Item 21) (Golden Harvest)
2Hole Plug (2) (Golden Harvest)
2Hole Plug (2) (Almond)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6Screw (Repair)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
8GASKET-DOR
9WP489069 Whirlpool Compactor Screw
10Handle End
12Handle, Center
14Spa
15Panel, Interior Door (Freezer)
16Screw (Repair)
16WP488920 Whirlpool Refrigerator Screw
17Trim, Door Shelf
18Nameplate
19Cap, Hinge Sleeve (2)
21WPL 876029
22Gasket Retainer, Side (2)
23Retainer, Gasket
