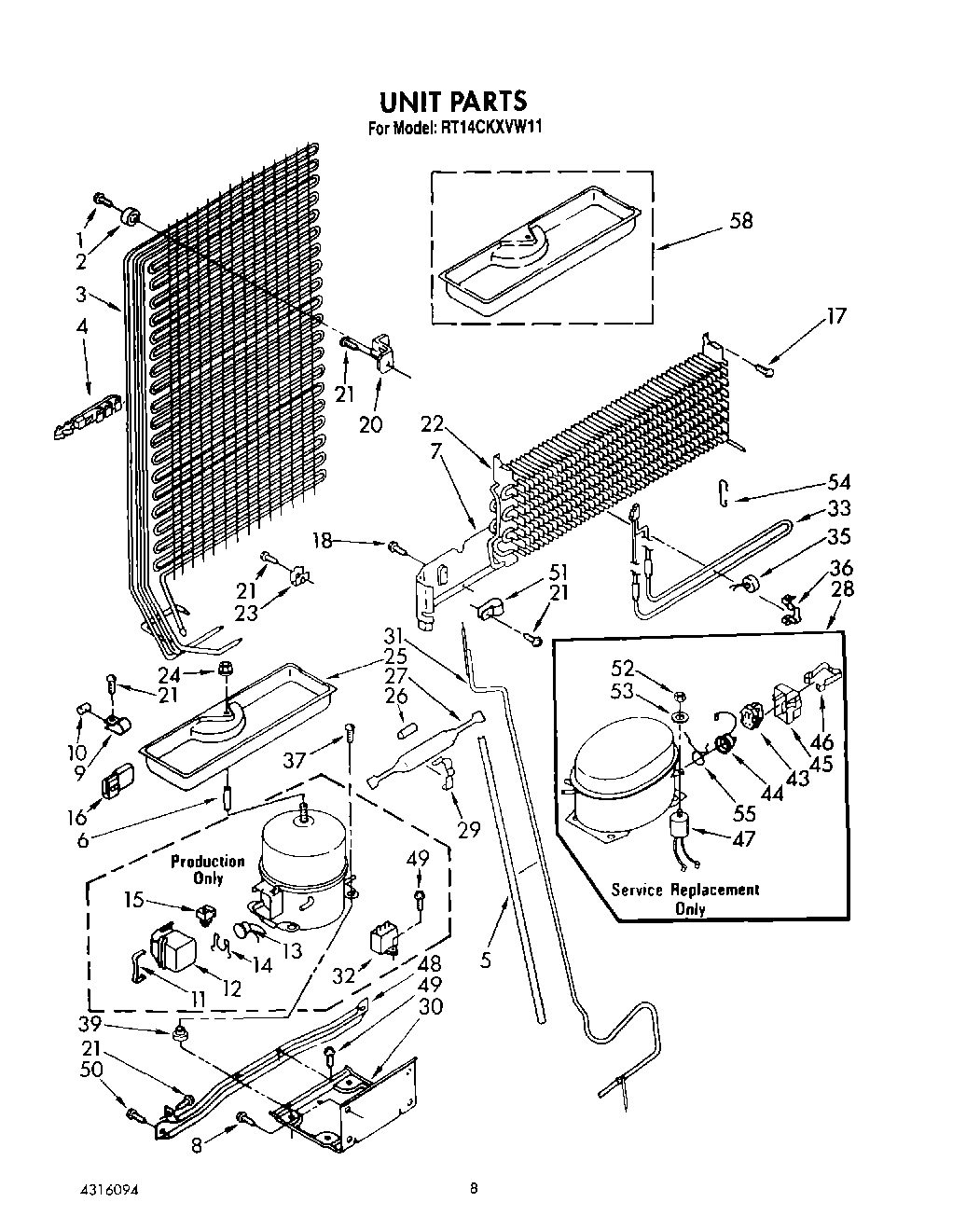

RT14CKXVL11 07 – UNIT

Written by

Products

Position	Product
1	WP488163 Whirlpool Refrigerator Screw
2	Bumper
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
8	WP489069 Whirlpool Compactor Screw
9	Clamp Tube
10	Dampener
11	case spring
12	Case, Relay
13	Overload
14	Spring, Overload
15	Relay
16	WP717253 Whirlpool Dishwasher Connector
17	WP489174 Whirlpool Refrigerator Screw
20	Bracket, Condenser
21	SCREW
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Tray, Evaporator
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 32, 33, 34, 35, 36, 43, & 44)
28	Installation Kit
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	Clamp, Dryer
30	Unit Mounting Plate
31	Exchanger, Heat
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	Heater, Defrost
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
39	876811 Whirlpool Grommet
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Unit Mounting Rail
49	WP965173 Whirlpool Dishwasher Screw
50	Screw, 1/4-28 x 1
51	Tube, Clamp
52	Nut
53	Washer
54	Support, Heater
55	Overload Spring
58	VALVE, ACCESS (5/8“)
58	876764 Whirlpool Refrigerator Primary Valve
58	Evaporator Tray
58	978026 Whirlpool Refrigerator Primary Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	978030 Whirlpool Refrigerator Valve
58	VALVE, ACCESS (1/2“)
58	WP978025 Whirlpool Refrigerator Valve
