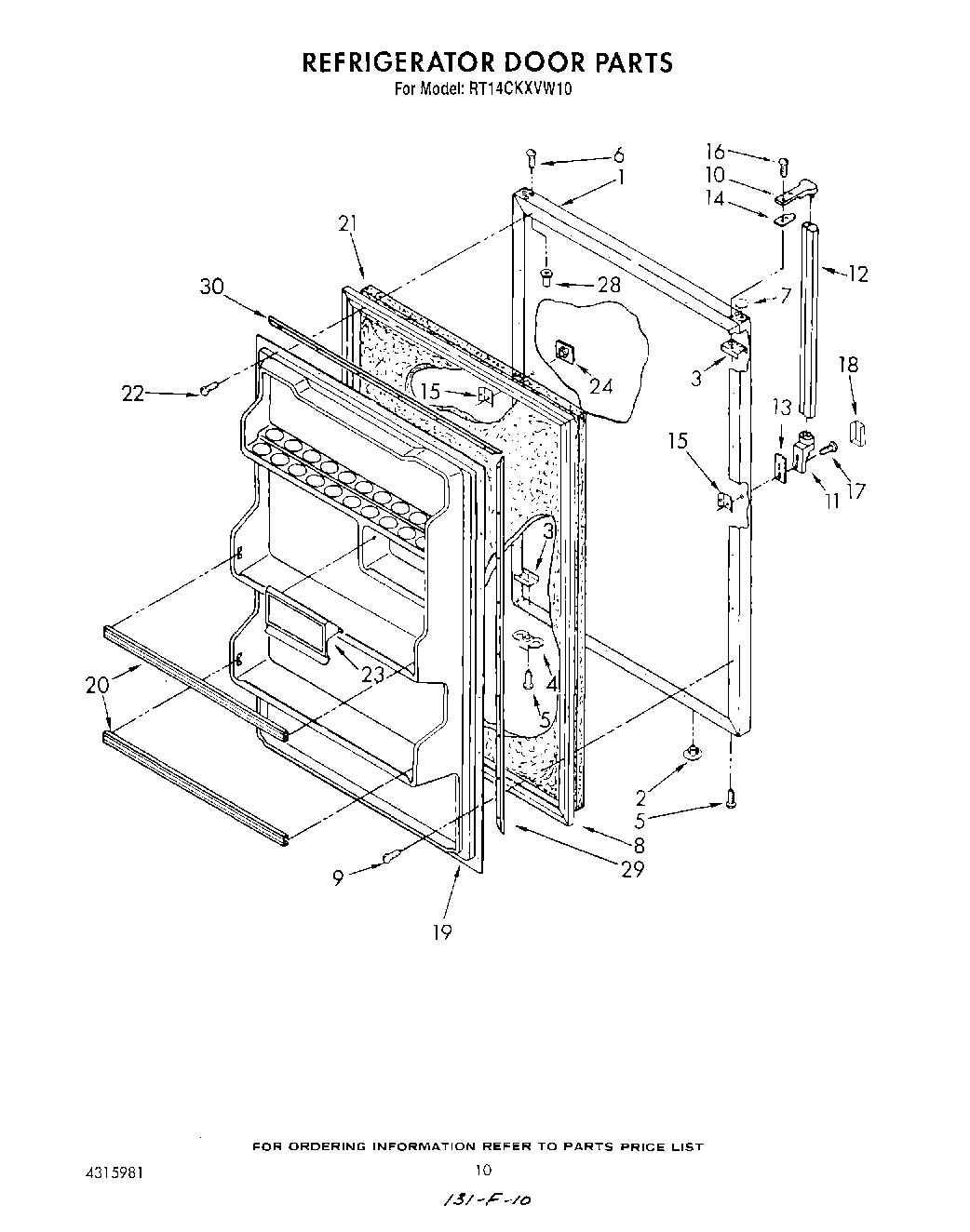

RT14CKXVW10 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

RT14CKXVW10 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

RT14CKXVW10 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
350942 Whirlpool Spray Paint
Torx Key
Golden Harvest
WPL LIT4315981
WPL LIT2150138
WPL LIT1124901
350956 Whirlpool Spray Assembly
Leveler (Thinner)
WPL LIT1127665
1Panel, Refrigerator Door (Also Order Item 27) (Almond)
1Panel, Refrigerator Door (Also Order Item 27) (Golden Harvest)
1Panel, Refrigerator Door (Also Order Item 27) (White)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
6Screw (Repair)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
82188445A Whirlpool Refrigerator Door Gasket Seal
9WP489069 Whirlpool Compactor Screw
10Handle End
11Handle End,
12Handle, Center
13Shim, Handle
14Spa
15WP939101 Whirlpool Refrigerator Plate
16Screw (Repair)
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18Cover, End Cap
19Interior Door Panel
20Trim, Door Shelf (2)
23Compartment, Butter Door
24Hole Plug, Handle (Almond)
24Hole Plug, Handle (White)
24WP2189000 Whirlpool Refrigerator Handle Plug
28Cap, Hinge Sleeve (2)
29Gasket Retainer, Side (2)
3072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
30Almond (Uncut)
30WP72107 Whirlpool Touchup
30799344 Whirlpool Refrigerator Paint
3072017 Whirlpool Appliance Touch-Up Paint White
30TAPE, VINYL (3/4 X 108“)
30Golden Harvest (Uncut)
30Enamel, Black (1 Qt. Uncut)
30WPL 799833
30WPL 876029
30WP542638 Whirlpool Refrigerator Grease
30WP505587 Whirlpool Refrigerator Sealer
30WP503695 Whirlpool Refrigerator Sealer
30876370 Whirlpool Refrigerator Insulation
30833938 Whirlpool Refrigerator Terminal
3072032 Whirlpool Touch Up Paint Black
30CEMENT, ALUMILASTIC (1 1/4 OZ.)
30606755 Whirlpool Refrigerator Bag
30511873 Whirlpool Refrigerator Paint
30212643 Whirlpool Refrigerator Permagum Sealer
30Retainer, Gasket
