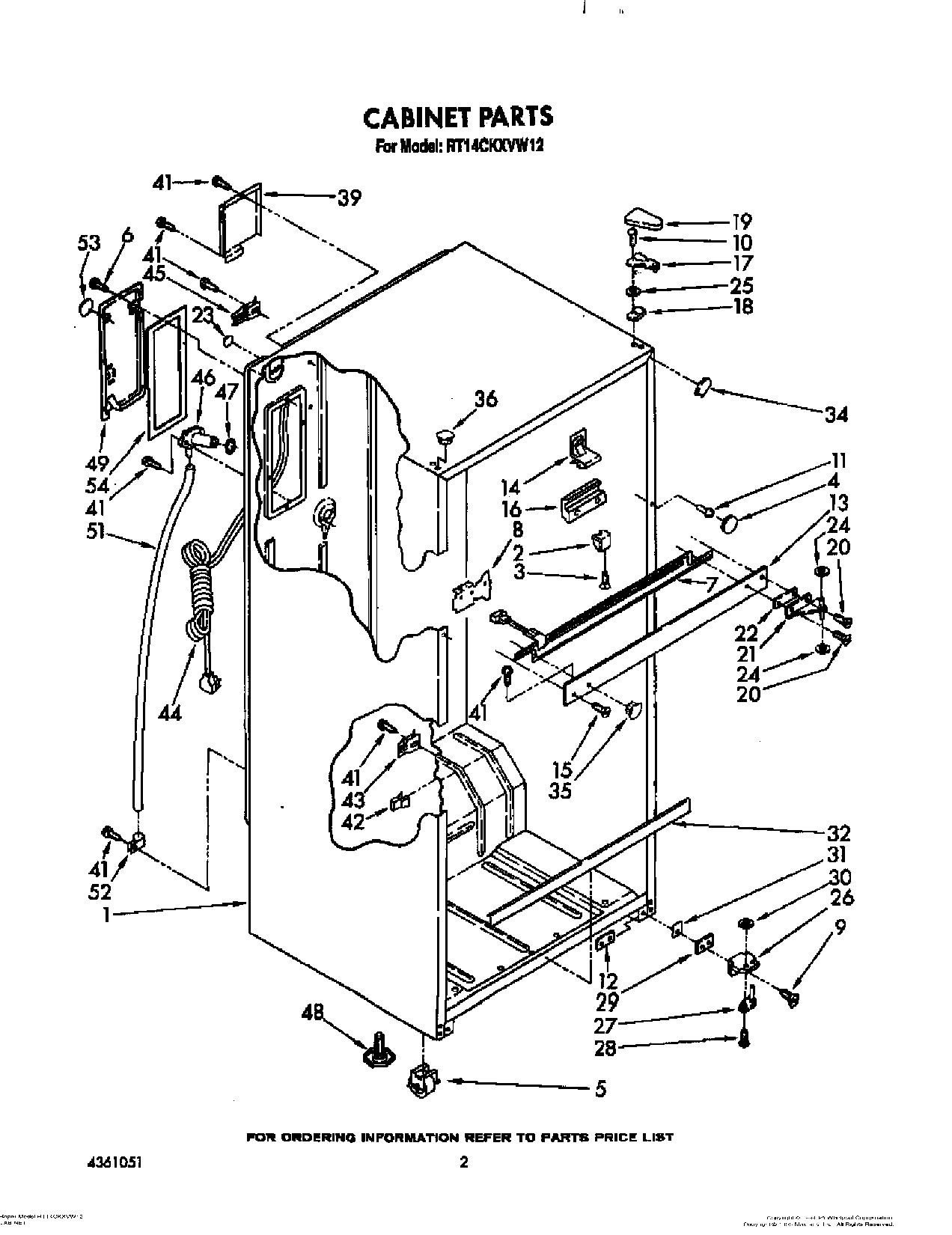

RT14CKXVW12 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Spacer (3)
3	WP489174 Whirlpool Refrigerator Screw
4	Hole Plug (2) (White)
4	Hole Plug (2) (Almond)
5	Roller, Rear
6	WP489464 Whirlpool Refrigerator Screw
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	Screw
10	WP489349 Whirlpool Refrigerator Screw
11	Screw, 8-32 x 1/2 (2)
12	Tap Plate (2)
13	Center Rail (White)
13	Center Rail (Almond)
14	Clip, Center Rail (4)
15	Screw
16	Center, Rail Shim (2)
17	Hinge, Top
18	Shim, Hinge
19	1119787 Whirlpool Refrigerator Hinge Cover
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
23	Hole Seal
24	WP488296 Whirlpool Washer Refrigerator
25	WP487576 Whirlpool Washer
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (White)
32	Cover, Deck Rail (Almond)
32	Cover, Deck Rail (White)
34	WPL 943552
34	WPL 944831
35	Hole Plug (Almond)
35	Hole Plug (White)
36	WP2151652 Whirlpool Refrigerator Button Plug
36	Hole Plug (6) (Almond)
39	WPL 942845
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
48	Leveler (2)
49	WPL 1106511
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WPL 1120224
54	WPL 1106510
