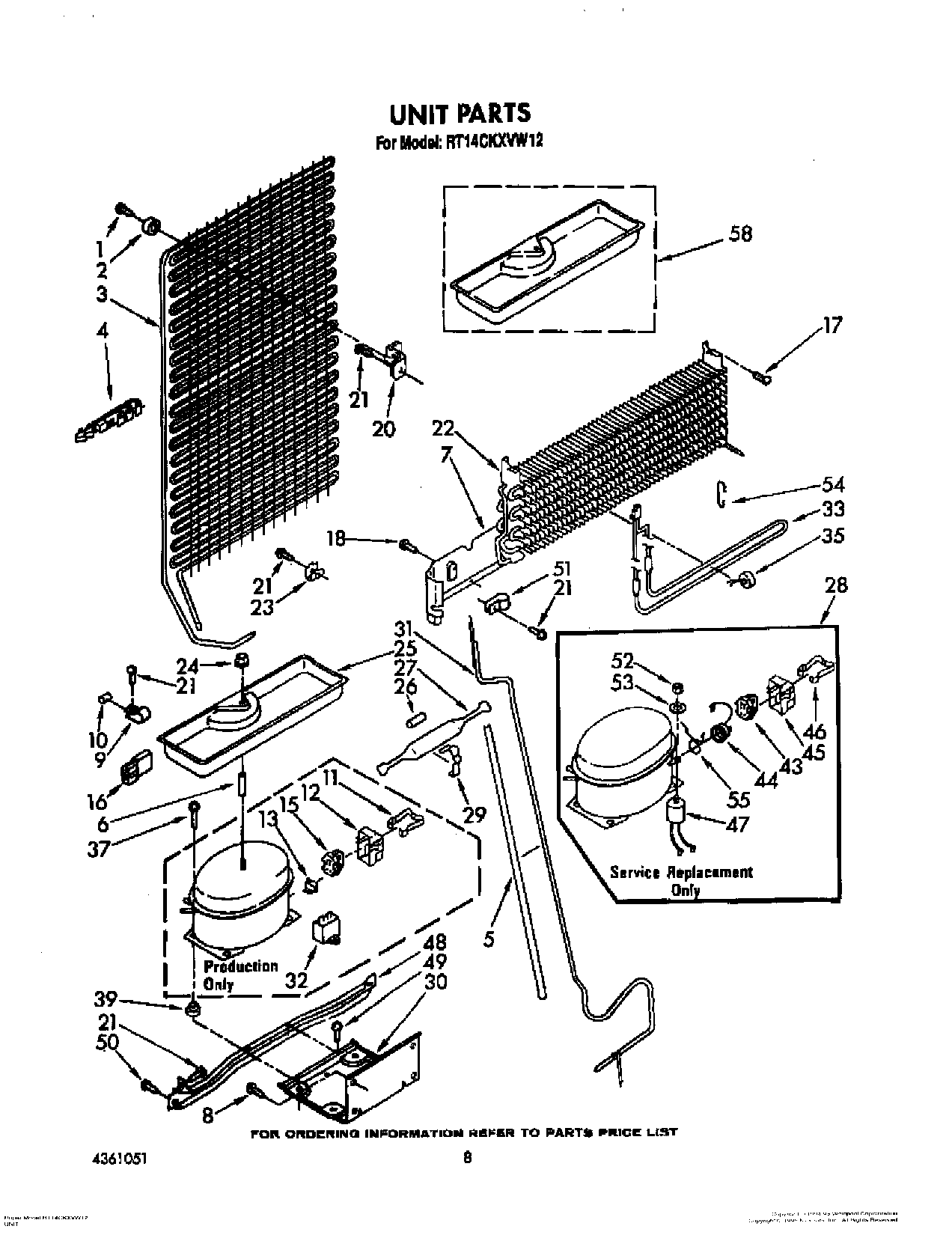

RT14CKXVW12 07 – UNIT

Products

Position	Product
1	WP488163 Whirlpool Refrigerator Screw
2	Bumper
3	Condenser
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
9	Clamp Tube
10	Dampener
12	Cover
13	Overload
16	WP717253 Whirlpool Dishwasher Connector
17	WP489174 Whirlpool Refrigerator Screw
20	Bracket, Condenser
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	Clamp, Dryer
30	Unit Mounting Plate
31	Exchanger, Heat
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	Heater, Defrost
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
39	876811 Whirlpool Grommet
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Unit Mounting Rail
49	WP965173 Whirlpool Dishwasher Screw
50	WP489427 Whirlpool Refrigerator Screw
51	Tube, Clamp
52	Nut
53	Washer
54	Support, Heater
55	Overload Spring
58	978026 Whirlpool Refrigerator Primary Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	978030 Whirlpool Refrigerator Valve
58	WP978025 Whirlpool Refrigerator Valve
58	VALVE, ACCESS (1/2“)
58	876764 Whirlpool Refrigerator Primary Valve
58	Evaporator Tray
58	VALVE, ACCESS (5/8“)
