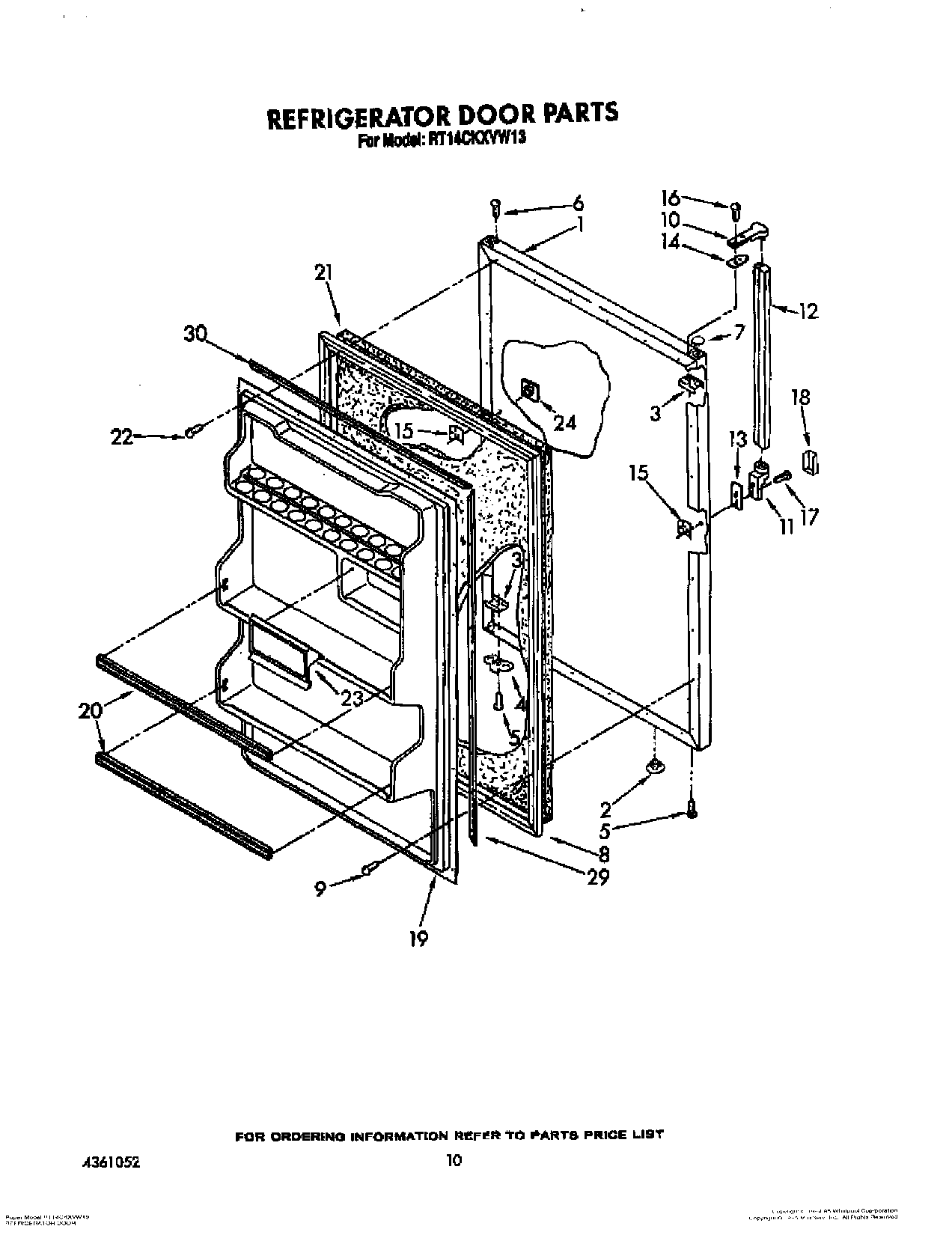

RT14CKXVW13 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

RT14CKXVW13 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

RT14CKXVW13 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT2150256
	WPL LIT2149680
	350942 Whirlpool Spray Paint
	Torx Key
	285006 Whirlpool Spray
	Leveler (Thinner)
	350956 Whirlpool Spray Assembly
	WPL LIT4361052
	WPL LIT2148879
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Also Order Item 27) (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188445A Whirlpool Refrigerator Door Gasket Seal
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End,
12	Handle, Center
13	Shim, Handle
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Cover, End Cap
19	Interior Door Panel
20	Trim, Door Shelf (2)
23	Compartment, Butter Door
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (Almond)
29	Gasket Retainer, Side (2)
30	606755 Whirlpool Refrigerator Bag
30	Almond (Uncut)
30	511873 Whirlpool Refrigerator Paint
30	WPL 876029
30	212643 Whirlpool Refrigerator Permagum Sealer
30	WP72107 Whirlpool Touchup
30	799344 Whirlpool Refrigerator Paint
30	72017 Whirlpool Appliance Touch-Up Paint White
30	833938 Whirlpool Refrigerator Terminal
30	876370 Whirlpool Refrigerator Insulation
30	WP503695 Whirlpool Refrigerator Sealer
30	72032 Whirlpool Touch Up Paint Black
30	WP542638 Whirlpool Refrigerator Grease
30	Retainer, Gasket
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	TAPE, VINYL (3/4 X 108“)
30	Enamel, Black (1 Qt. Uncut)
30	WPL 799833
30	WP505587 Whirlpool Refrigerator Sealer
