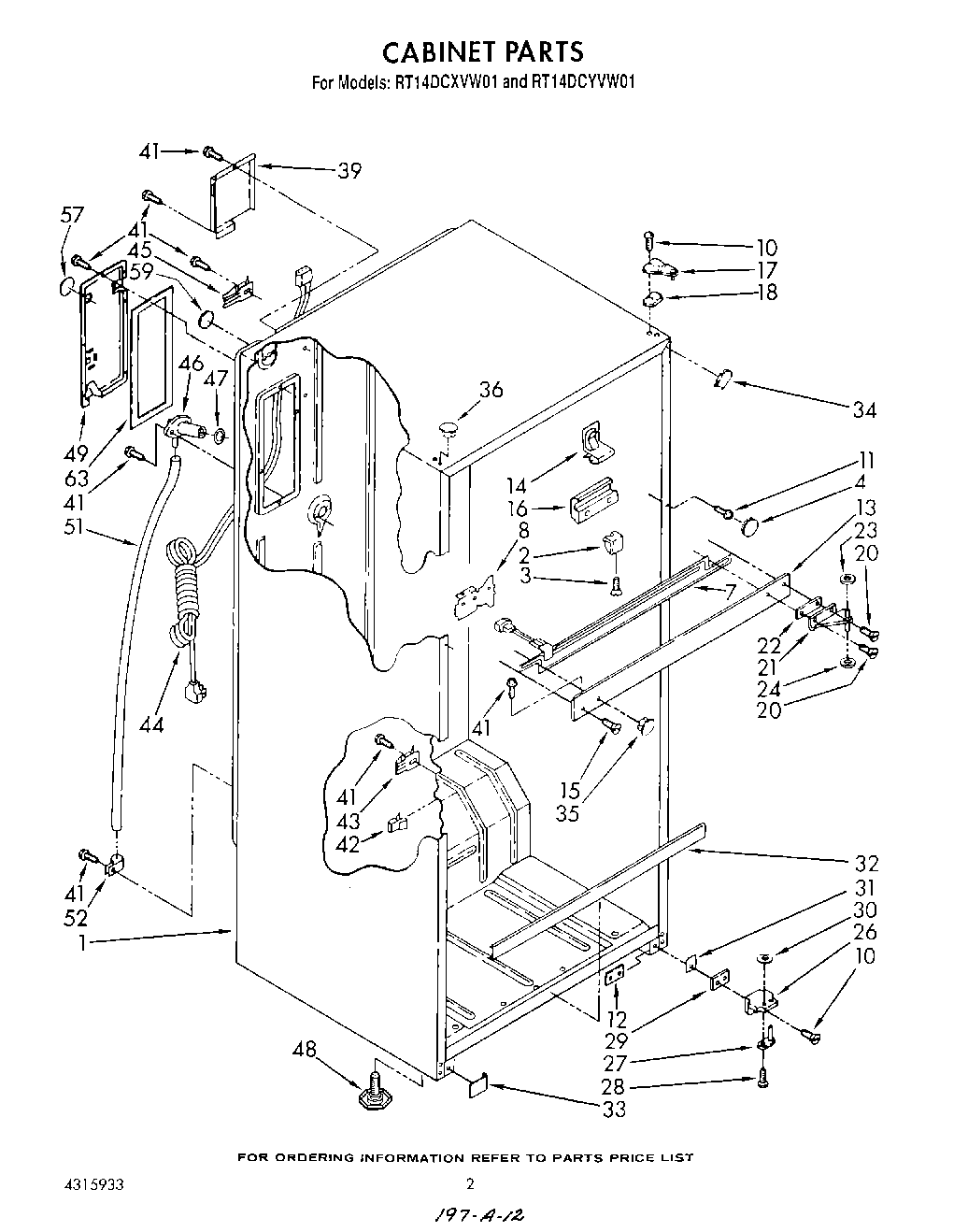

RT14DCXVG01 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Spacer (2)
3	WP489174 Whirlpool Refrigerator Screw
4	Hole Plug (2) (Almond)
4	Hole Plug (2) (White)
4	Hole Plug (2) (Golden Harvest)
7	Heater, Mullion
8	Center Rail, Bracket (2)
10	Screw
11	WPL 488844
12	Tap Plate (2)
13	Center Rail (Golden Harvest)
13	Center Rail (White)
13	Center Rail (Almond)
14	Clip, Center Rail (4)
15	Screw
16	Center, Rail Shim (2)
17	Shim, Hinge Top
18	Shim, Hinge
20	Screw
20	Screw (Repair)
21	Hinge, Center
22	Shim, Hinge Center
23	WP487802 Whirlpool Refrigerator Washer
24	WP488296 Whirlpool Washer Refrigerator
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (White)
32	Cover, Deck Rail (Golden Harvest)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Almond)
33	WPL 943552
33	WPL 944831
33	WPL 944833
34	WPL 1110686
34	WPL 1110685
34	WPL 1110684
35	Hole Plug (White)
35	Hole Plug (Almond)
35	WPL 1119708
36	Hole Plug (4) (White)
36	Hole Plug (4) (Almond)
36	Hole Plug (4) (Golden Harvest)
39	WPL 942845
41	SCREW
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
48	Leveler (2)
49	WPL 1106511
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
57	WPL 1120224
59	Seal, Hole
63	WPL 1106510
