RT14DCYVW01 07 – UNIT

RT14DCYVW01 07 – UNIT

Written by

in

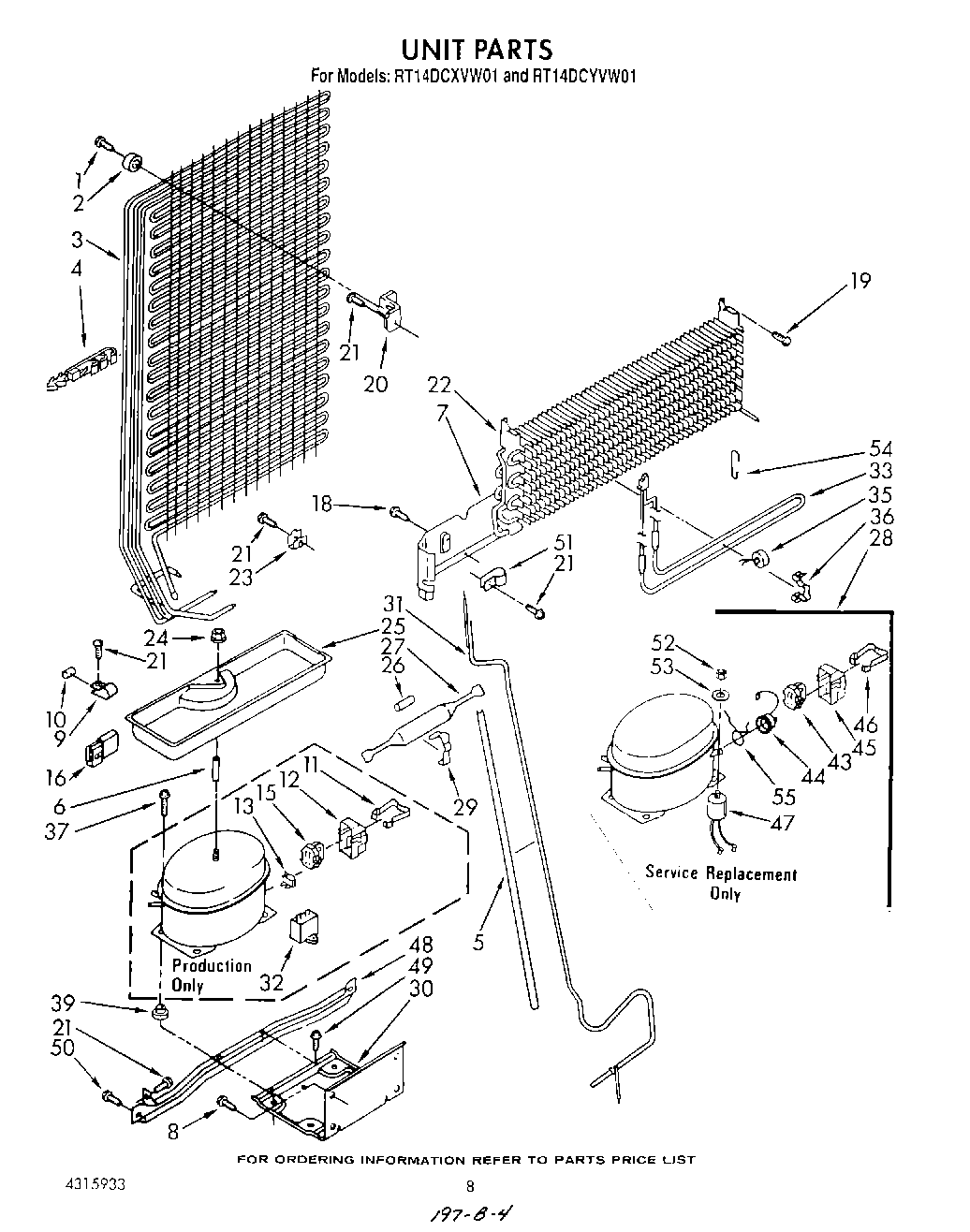

RT14DCYVW01 07 – UNIT

Products

PositionProduct
1WP488163 Whirlpool Refrigerator Screw
2Bumper
3Condenser & Precooler Assembly
4Clip, Tube (2)
5WP2002171 Whirlpool Refrigerator Sleeve
6Spacer
7Heat Shield Evaporator
8WP489069 Whirlpool Compactor Screw
9Clamp Tube
10Dampener
12Cover
13Overload
16WP717253 Whirlpool Dishwasher Connector
19WP489174 Whirlpool Refrigerator Screw
20Bracket, Condenser
21SCREW
21WP489478 Whirlpool Refrigerator Screw
22Evaporator
234386951 Whirlpool Refrigerator Clip
24285002 Whirlpool Nut
25Evaporator Tray
26Restrictor Sleeve
27W10843121 Whirlpool Refrigerator Tube
28Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29Clamp, Dryer
30Unit Mounting Plate
31Heater, Defrost
32WPW10662129 Whirlpool Refrigerator Run Capacitor
33Heater, Defrost
35WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36Clamp
39876811 Whirlpool Grommet
43WP2262181 Whirlpool Refrigerator Start Relay
44Overload
45Cover, Terminal
46Strap
47Capacitor
48Unit Mounting Rail
49WP965173 Whirlpool Dishwasher Screw
50Screw, 1/4-28 x 1
51Tube, Clamp
52Nut
53Washer
54Support, Heater
55VALVE, ACCESS (5/8“)
55Overload Spring
55VALVE, ACCESS (1/2“)
55WP978025 Whirlpool Refrigerator Valve
55876764 Whirlpool Refrigerator Primary Valve
55978026 Whirlpool Refrigerator Primary Valve
55978027 Whirlpool Refrigerator Primary Valve
55978030 Whirlpool Refrigerator Valve
