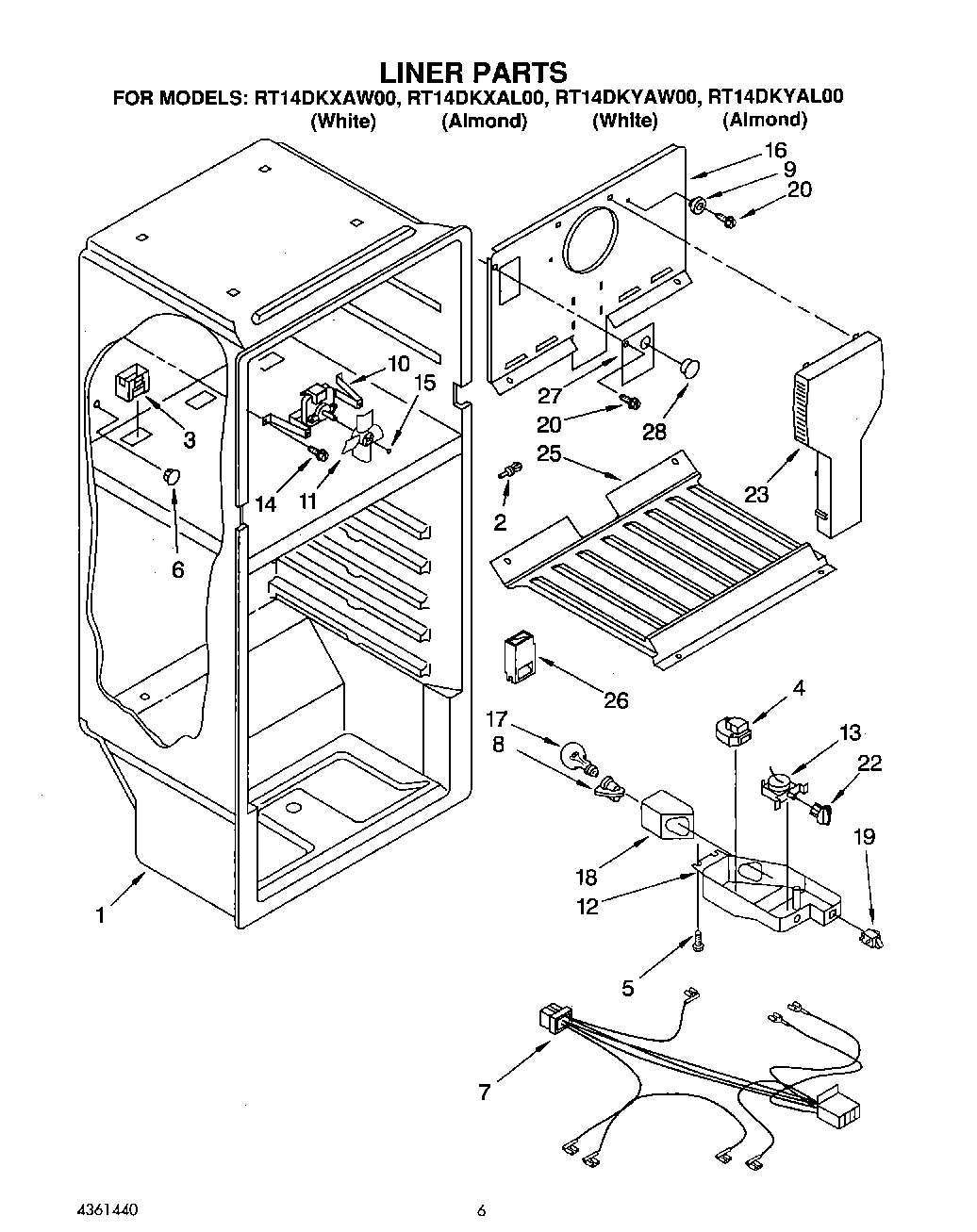

RT14DKXAL00 04 – LINER, LIT/OPTIONAL

RT14DKXAL00 04 – LINER, LIT/OPTIONAL

Written by

in

RT14DKXAL00 04 – LINER, LIT/OPTIONAL

Products

PositionProduct
Torx Key
WPL LIT4361440
WPL LIT2163327
WPL LIT9791409
WPL LIT2163325
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
1Liner (Not A Serviceable Part)
2939962 Whirlpool Refrigerator Rivet
3Diffuser-Air
4WP2183400 Whirlpool Defrost Timer
5WP489174 Whirlpool Refrigerator Screw
6WP941839 Whirlpool Refrigerator Button Plug
72176927 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9Grommet
10Fan Motor & Bracket Assy.
11Fan Blade
122215213 Whirlpool Refrigerator Control Box
13Thermostat
14WP489478 Whirlpool Refrigerator Screw
15Ring, Compression
16Cover-Evaporator
17W11679940 Whirlpool Refrigerator Light Bulb Assembly
18W11034434 Whirlpool Refrigerator Light Lens
19W11384469 Whirlpool Door Switch
20WP488729 Whirlpool Refrigerator Door Screw
22WP2202885 Whirlpool Refrigerator Thermal Knob
23Air Tower
25Freezer Floor
26Air Diffuser
27WP2217784 Whirlpool Refrigerator Cover
28WPL 876029
28350942 Whirlpool Spray Paint
28212643 Whirlpool Refrigerator Permagum Sealer
28Leveler (Thinner)
28WP72107 Whirlpool Touchup
28Almond (Uncut)
28799344 Whirlpool Refrigerator Paint
2872017 Whirlpool Appliance Touch-Up Paint White
28350956 Whirlpool Spray Assembly
28511873 Whirlpool Refrigerator Paint
28606755 Whirlpool Refrigerator Bag
28833938 Whirlpool Refrigerator Terminal
28285006 Whirlpool Spray
2872032 Whirlpool Touch Up Paint Black
28WPL 799833
28WPL 799832
28TAPE, VINYL (3/4 X 108“)
28CEMENT, ALUMILASTIC (1 1/4 OZ.)
28WP542638 Whirlpool Refrigerator Grease
28Hole Plug
28WP505587 Whirlpool Refrigerator Sealer
28WP503695 Whirlpool Refrigerator Sealer
28876370 Whirlpool Refrigerator Insulation
28350930 Whirlpool White Spray Paint
