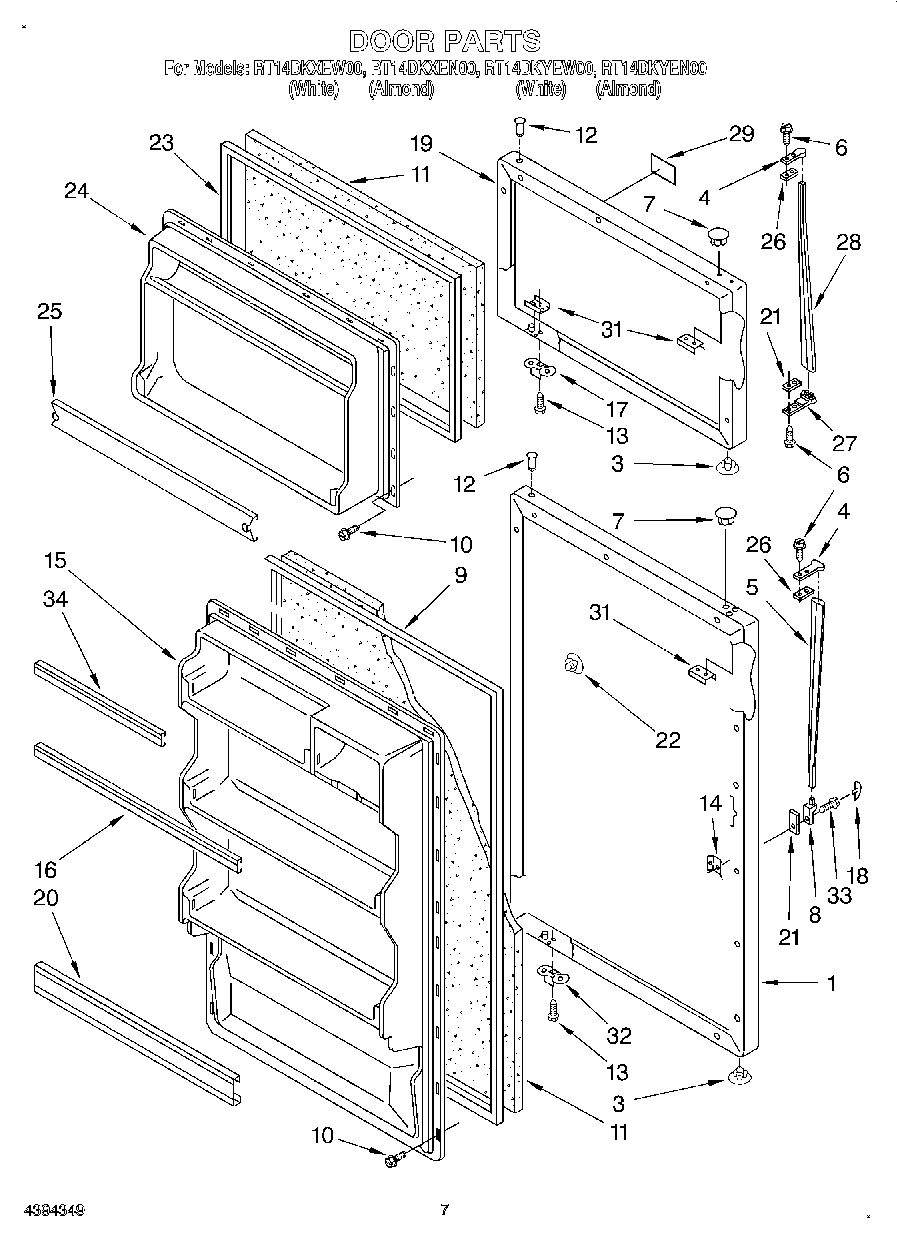

RT14DKXEN00 05 – DOOR, LIT/OPTIONAL

Products

PositionProduct
Energy Label
WPL LIT2178980
WPL LIT2190787
1Refrigerator Door Panel (Also Order Item 11) (Almond)
1Refrigerator Door Panel (Also Order Item 11) (White)
3Hole Plug (2)
3Hole Plug (2) (Almond)
4819342 Whirlpool Refrigerator Endcap Kit
5Handle, Center
6WP488920 Whirlpool Refrigerator Screw
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
92188445A Whirlpool Refrigerator Door Gasket Seal
10Screw
12WP2183003 Whirlpool Thimble
13WP488921 Whirlpool Refrigerator Screw
14WP939101 Whirlpool Refrigerator Plate
15Interior Door Panel (Refrigerator)
16Trim, Door Shelf
17Bracket, Door Stop
18WP1101634 Whirlpool Refrigerator Cover
19Freezer Door Panel (Also Order Item 11) (Almond)
19Freezer Door Panel (Also Order Item 11) (White)
20Trim, Door Shelf
21Spa
22WP2189000 Whirlpool Refrigerator Handle Plug
22Hole Plug, Handle (Almond)
23GASKET-DOR
24Interior Door Panel (Freezer)
25Trim, Door
26Shim, Handle
28Handle, Center
29Nameplate
31W10833053 Whirlpool Refrigerator Plate
32Bracket, Door Stop
33WP488729 Whirlpool Refrigerator Door Screw
34350930 Whirlpool White Spray Paint
34350942 Whirlpool Spray Paint
34Almond (Uncut)
34WP72107 Whirlpool Touchup
34212643 Whirlpool Refrigerator Permagum Sealer
34350956 Whirlpool Spray Assembly
3472017 Whirlpool Appliance Touch-Up Paint White
34799344 Whirlpool Refrigerator Paint
34Trim, Door Shelf
34511873 Whirlpool Refrigerator Paint
34WPL 799833
34Enamel, Black (1 Qt. Uncut)
34CEMENT, ALUMILASTIC (1 1/4 OZ.)
34TAPE, VINYL (3/4 X 108“)
34WP542638 Whirlpool Refrigerator Grease
34285006 Whirlpool Spray
3472032 Whirlpool Touch Up Paint Black
34WP505587 Whirlpool Refrigerator Sealer
34WP503695 Whirlpool Refrigerator Sealer
34876370 Whirlpool Refrigerator Insulation
34833938 Whirlpool Refrigerator Terminal
34WPL 876029
34606755 Whirlpool Refrigerator Bag
34Door Reversal Instructions
