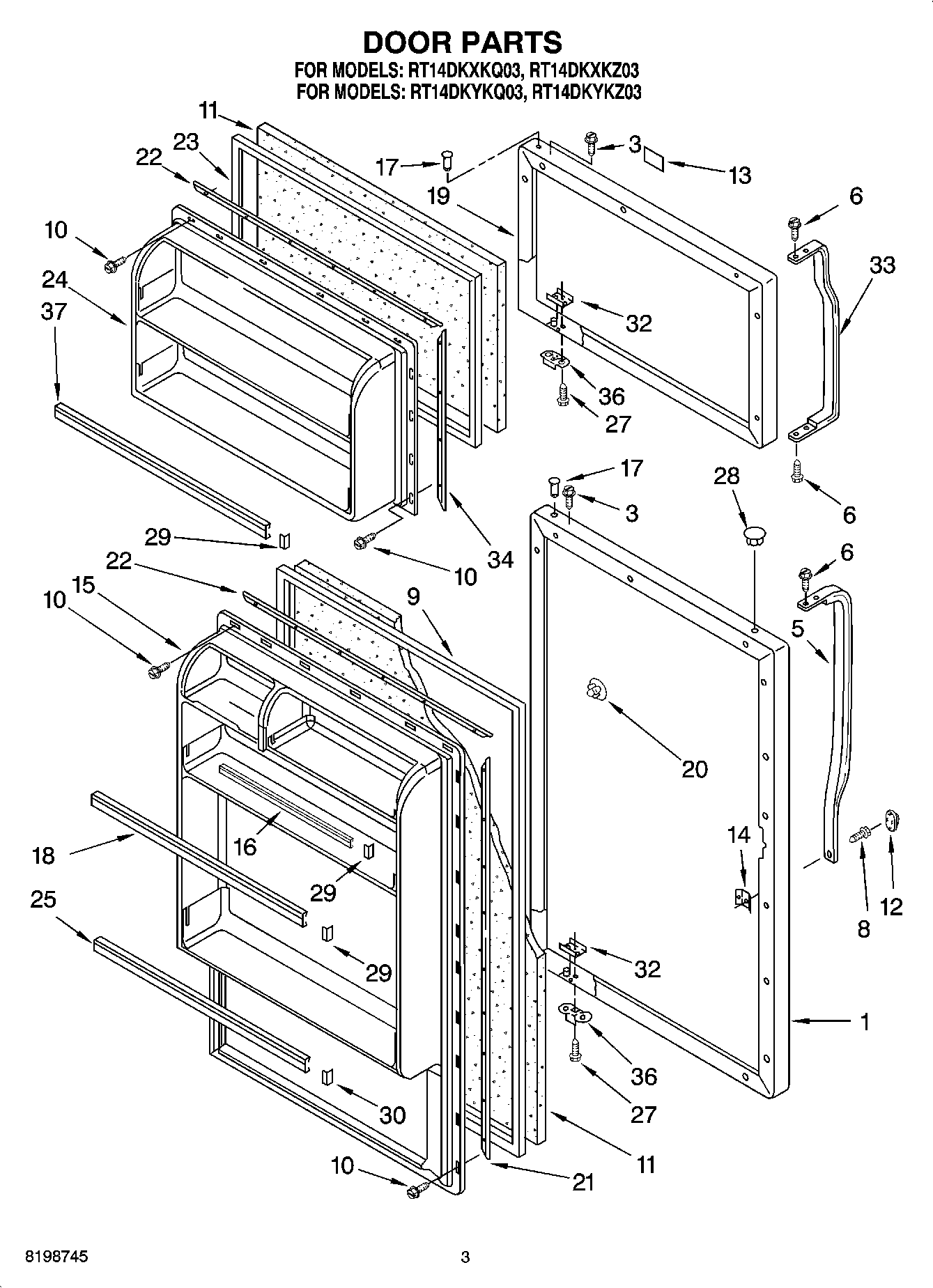

RT14DKXKQ03 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel (Also Order Item 11) (White)
1	Refrigerator Door Panel (Also Order Item 11) (Almond)
3	WP8281206 Whirlpool Refrigerator Screw
5	HANDLE
5	Handle Center (Almond)
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	2188448A Whirlpool Refrigerator Door Gasket Seal
10	WP489442 Whirlpool Refrigerator Screw
11	WPL 876029
12	WP2202819W Whirlpool Refrigerator Cover
12	Cover, Screw (Almond)
13	Nameplate (Almond)
13	Nameplate (White)
14	WP939101 Whirlpool Refrigerator Plate
15	Interior Door Panel (Refrigerator)
17	WP2183003 Whirlpool Thimble
19	Freezer Door Panel (Also Order Item 11) (Almond)
19	Freezer Door Panel (Also Order Item 11) (White)
20	Hole Plug (Almond)
20	WP2189000 Whirlpool Refrigerator Handle Plug
21	Gasket, Retainer
22	Retainer, Gasket
23	2188462A Whirlpool Freezer Door Gasket
24	Interior Door Panel (Freezer)
25	Trim, Door (Middle)
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28	Hole Plug (Almond)
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
32	W10833053 Whirlpool Refrigerator Plate
33	HANDLE
33	Handle, F.C. (Almond)
34	Retainer, Gasket
36	Bracket, Door Stop
37	WP2163629 Whirlpool Refrigerator Door Trim
