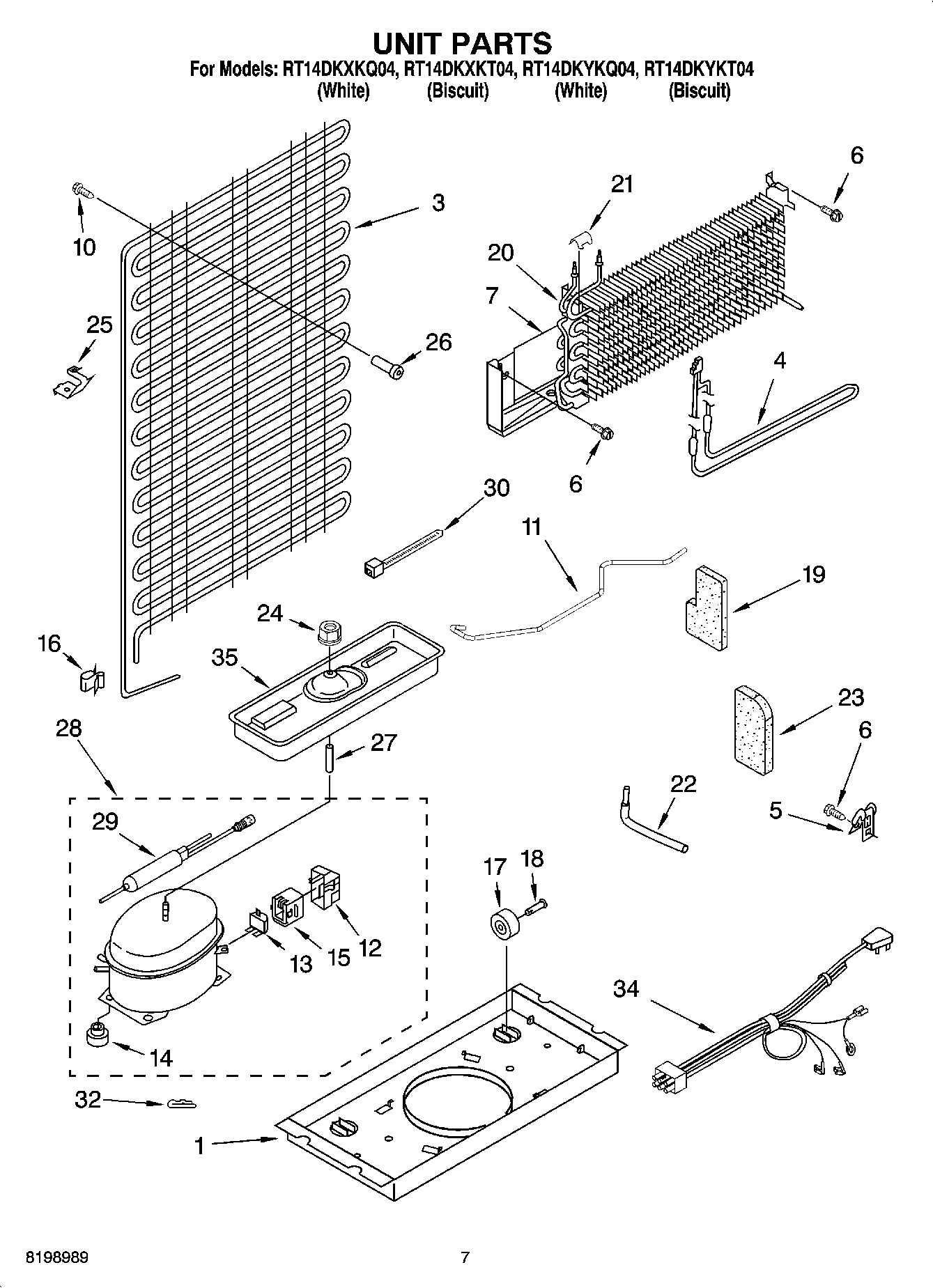

RT14DKXKT04 04 – UNIT PARTS

RT14DKXKT04 04 – UNIT PARTS

Written by

in

RT14DKXKT04 04 – UNIT PARTS

Products

PositionProduct
1WPW10222451 Whirlpool Refrigerator Support
3WP2252730 Whirlpool Refrigerator Condenser
4WP2263749 Whirlpool Defrost Heater Assembly
5549193 Whirlpool Refrigerator Power Clamp
6WP489442 Whirlpool Refrigerator Screw
7Heat Shield
10Screw
11Tube, Discharge
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP4387938 Whirlpool Refrigerator Overload
13WP2149959 Whirlpool Refrigerator Overload
14WP4387558 Whirlpool Refrigerator Compressor Grommet
14WP2163786 Whirlpool Refrigerator Grommet
15WP2258450 Whirlpool Refrigerator Start Device
16W10812038 Whirlpool Refrigerator Clip
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
198201619 Whirlpool Refrigerator Support Assembly
20WP2263919 Whirlpool Refrigerator Evaporator
219791833 Whirlpool Refrigerator Clip
22Tube, Process
24285002 Whirlpool Nut
254386951 Whirlpool Refrigerator Clip
262258452 Whirlpool Refrigerator Spacer
27Spacer
28W10823815 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32Clip, Compressor
34Wire Assy. Unit
35Following Parts Not Illustrated and Optional Parts Not Included
35Tray, Evaporator
35VALVE, ACCESS (5/8“)
35VALVE, ACCESS (1/2“)
35WP978025 Whirlpool Refrigerator Valve
35978030 Whirlpool Refrigerator Valve
35978027 Whirlpool Refrigerator Primary Valve
35978026 Whirlpool Refrigerator Primary Valve
35876764 Whirlpool Refrigerator Primary Valve
35REFRIGERANT CHARGE 3.75 Ozs. (R134A)
